Schneider Electric
Price
Save $813.88
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

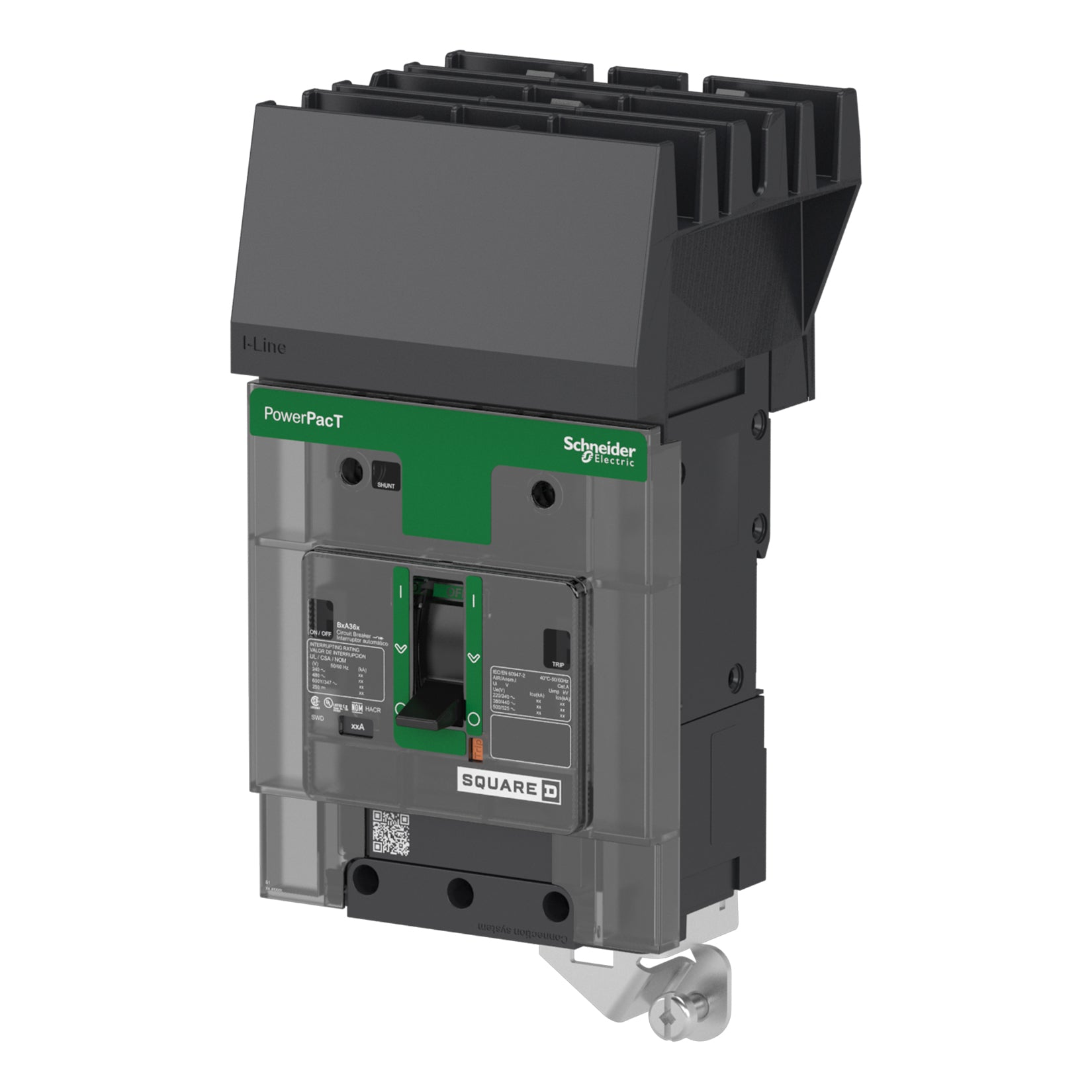

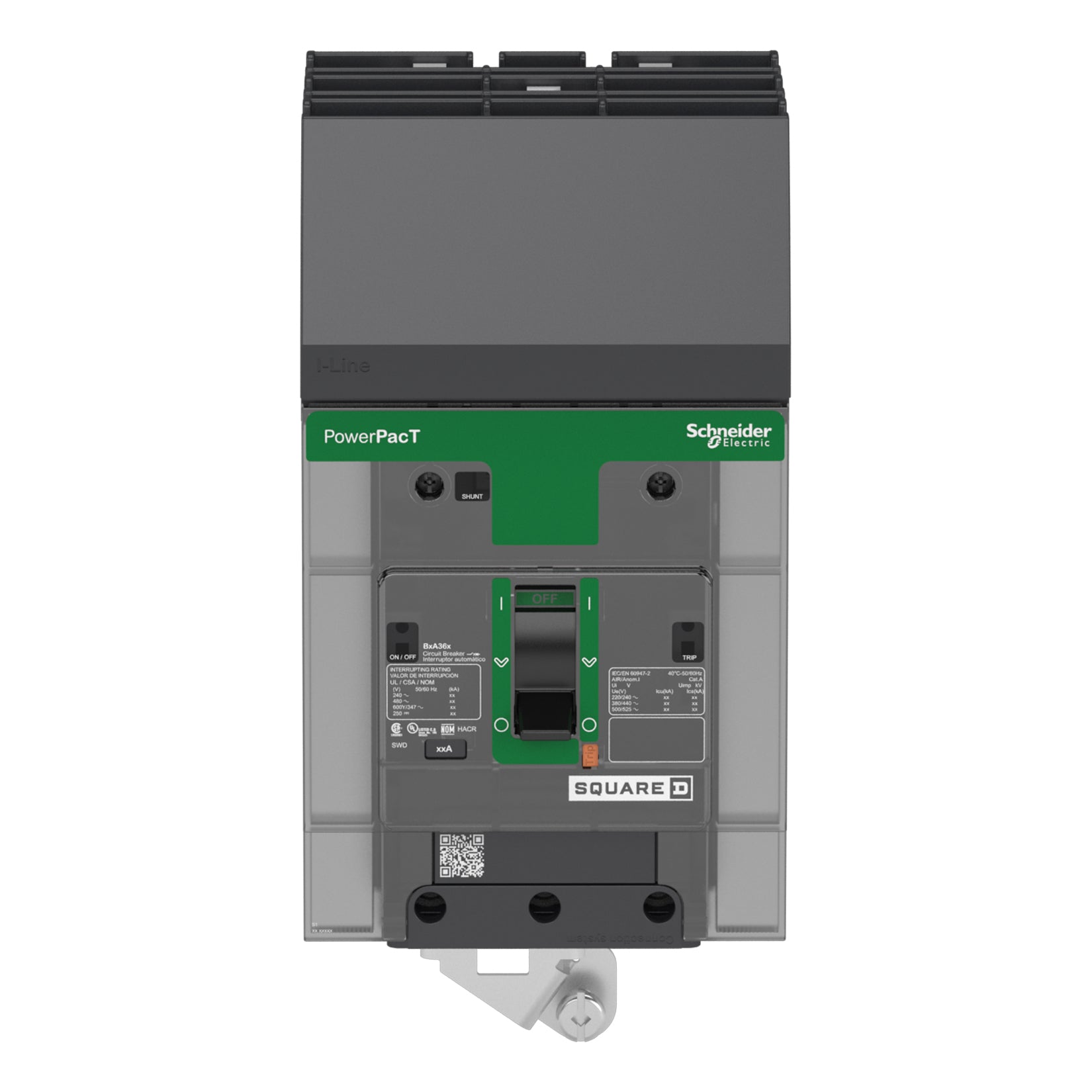

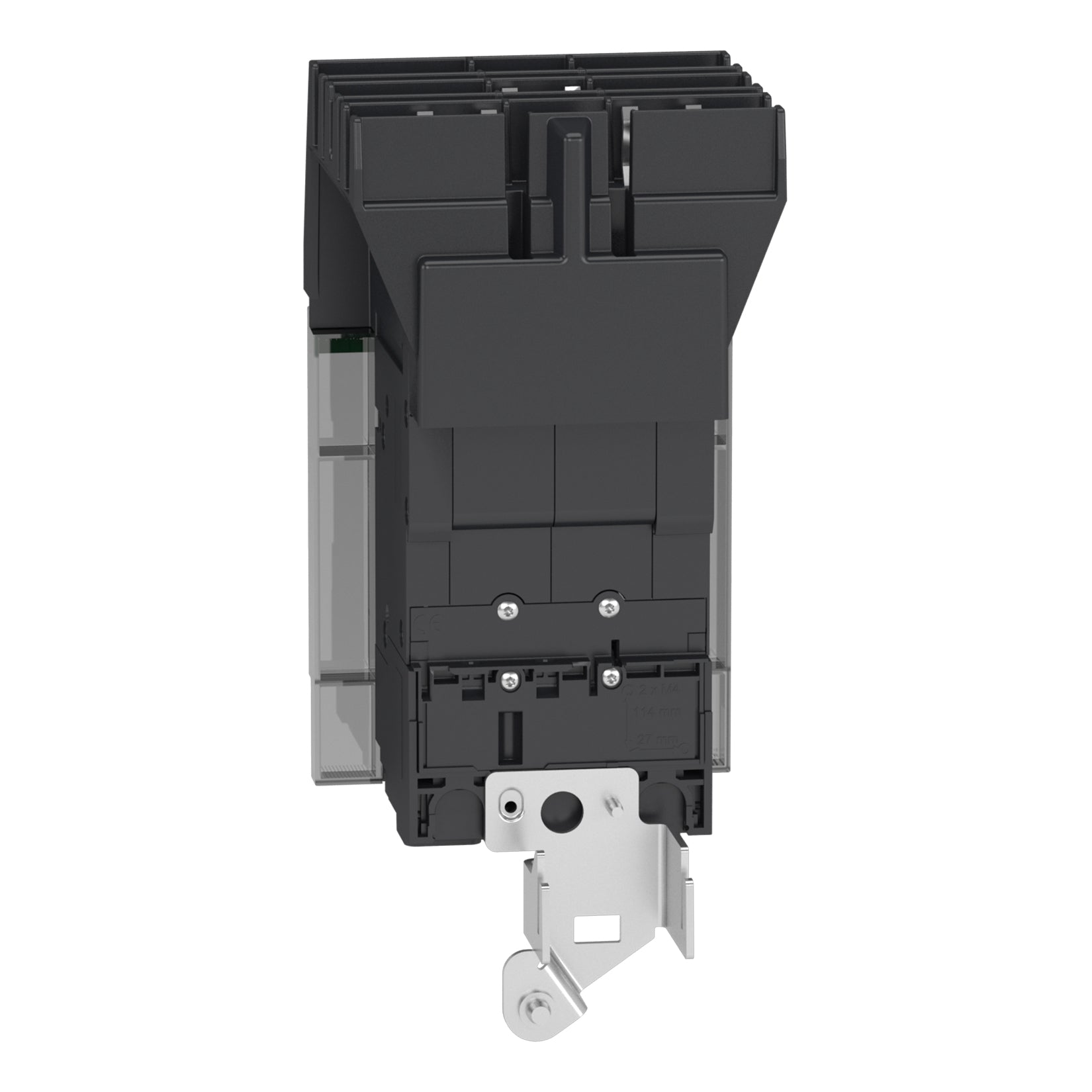

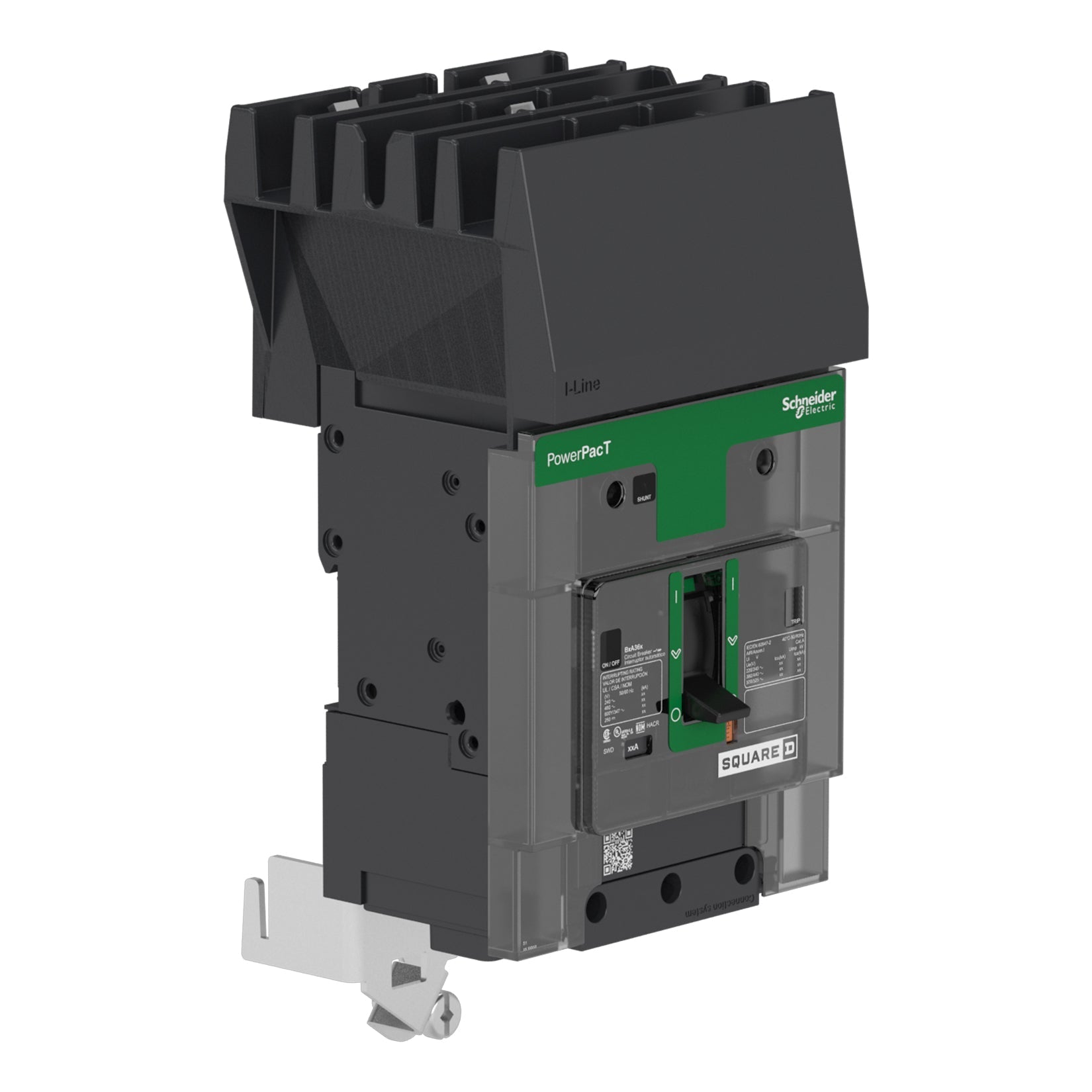

Schneider Electric BJA36035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 35A current rating and a 600V voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame that weighs 4.17 lb. The breaker is constructed for robust performance, meeting key international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, and operates effectively across a temperature range of -25 to 70 °C. Its I-Line style plug-in connection and thermal-magnetic protection with long-time and instantaneous (LI) functions make it suitable for integration into electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Functions
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NMX J-266, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Shipping Dimensions: Not Specified
  • Phase: 3
  • Amperage: 35A
  • AIC rating: 65kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BJ
  • Trip Type: Thermal Magnetic
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Wire Size Range 14 AWG to 2 AWG
  • Mounting: Plug-In
  • Hz: Not Specified
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Frequency Rating: Not Specified
  • Phase Connection: ABC
  • Compatible Frames: Not Specified
  • Installation Type: Plug-In
  • Item QTY: Not Specified
  • Breaker Frame: 125A/BJ
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014683
  • GTIN: 03606481154354
