Cutler Hammer
Price
Save $872.64
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

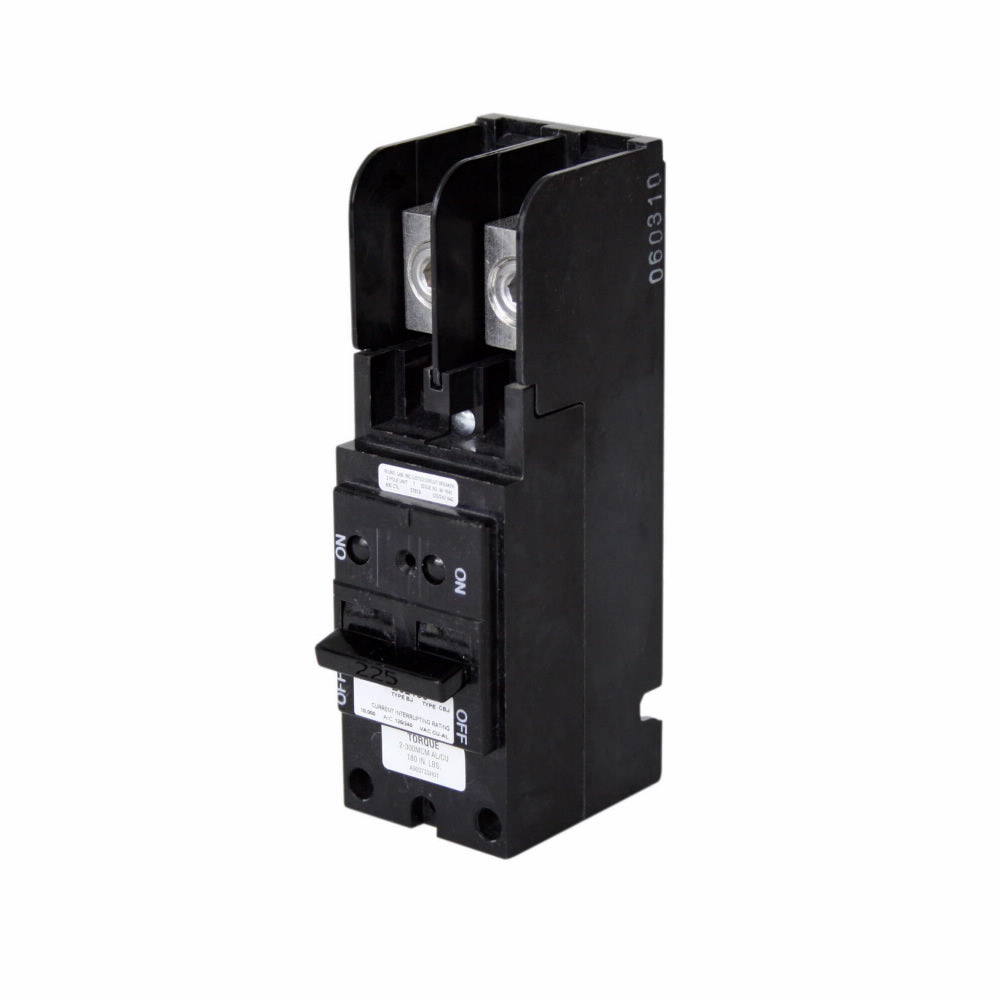

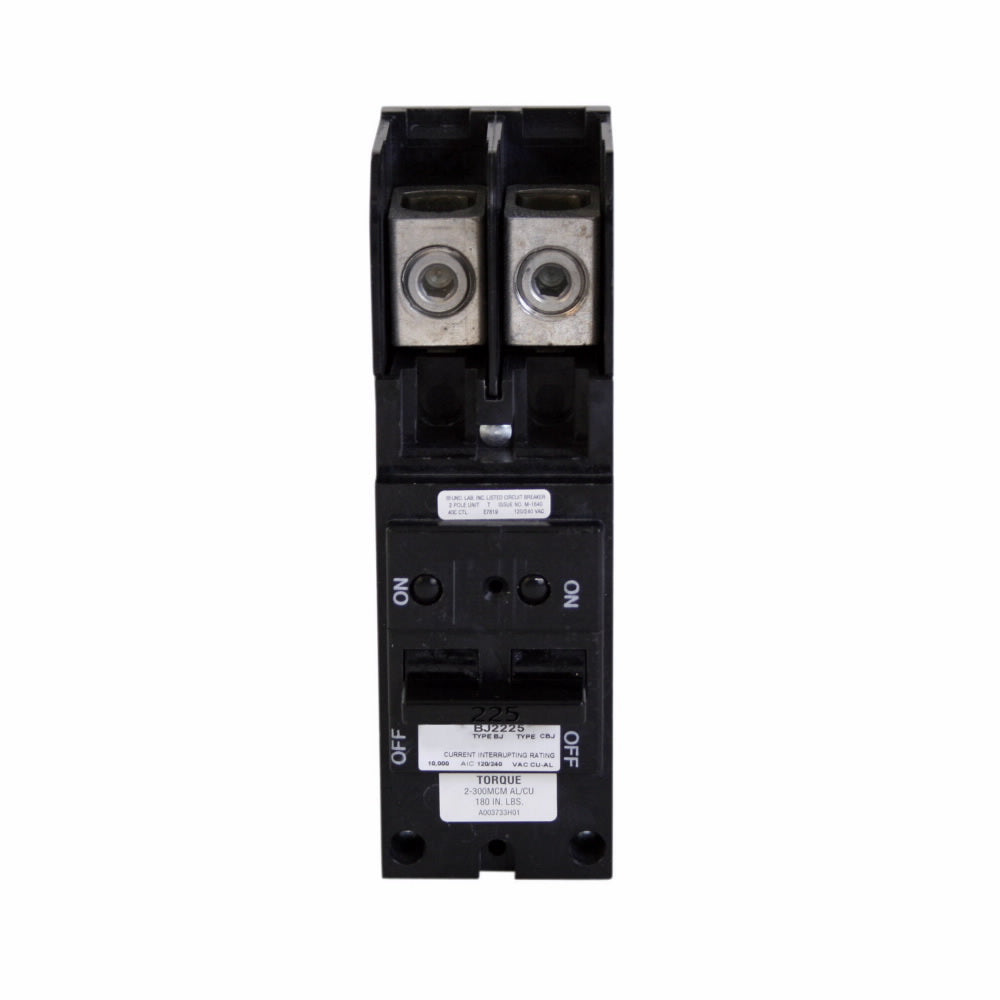

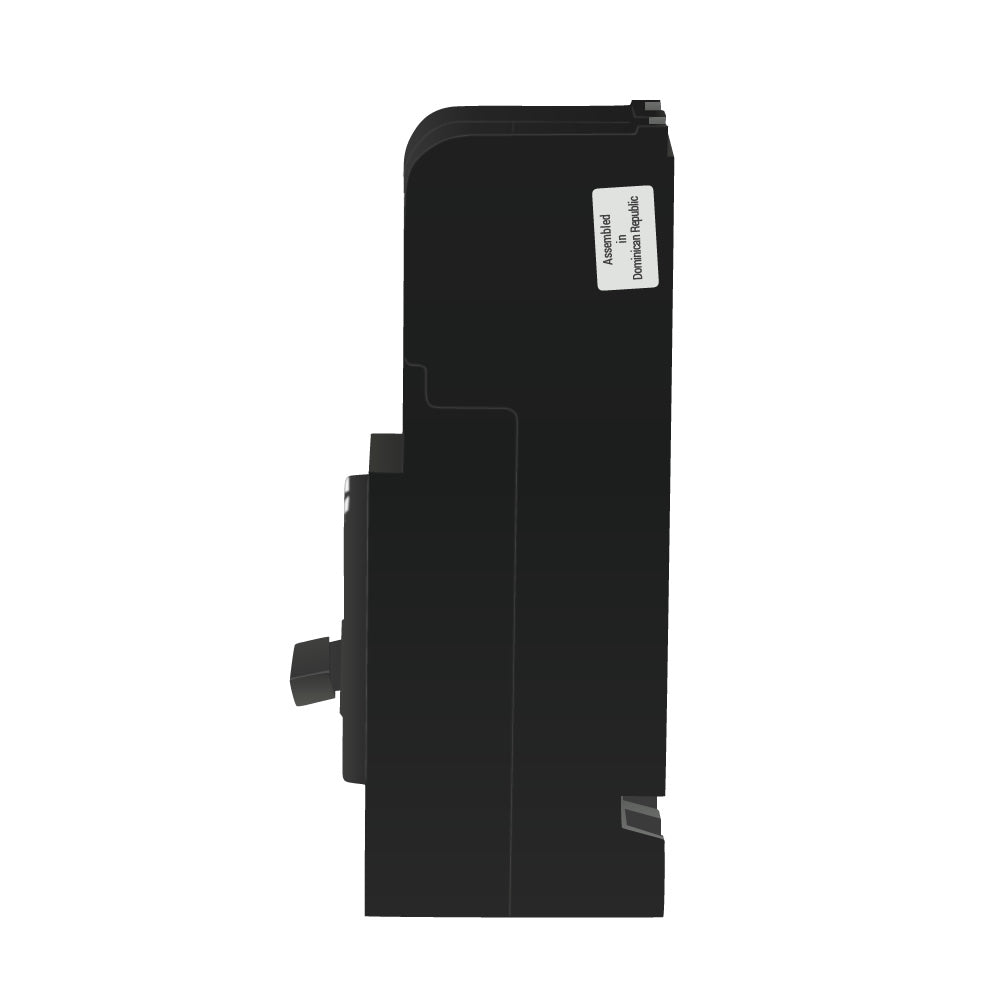

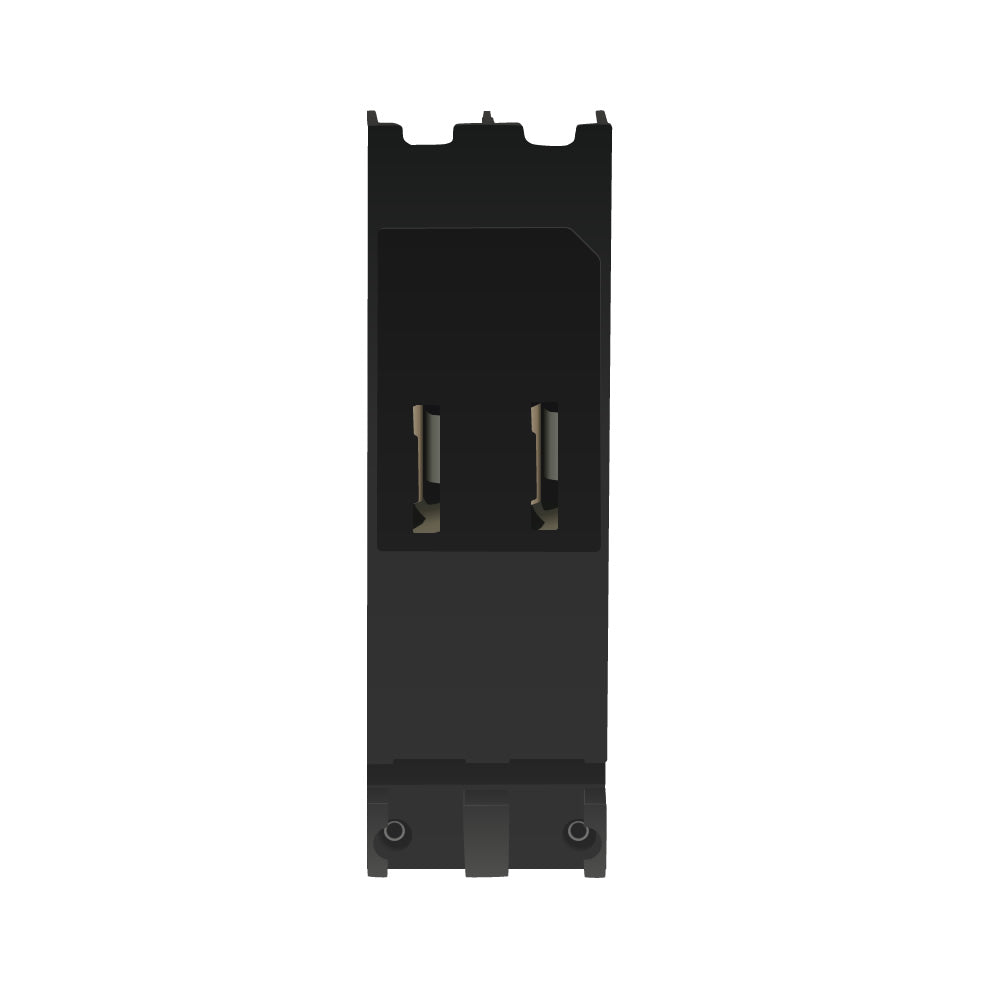

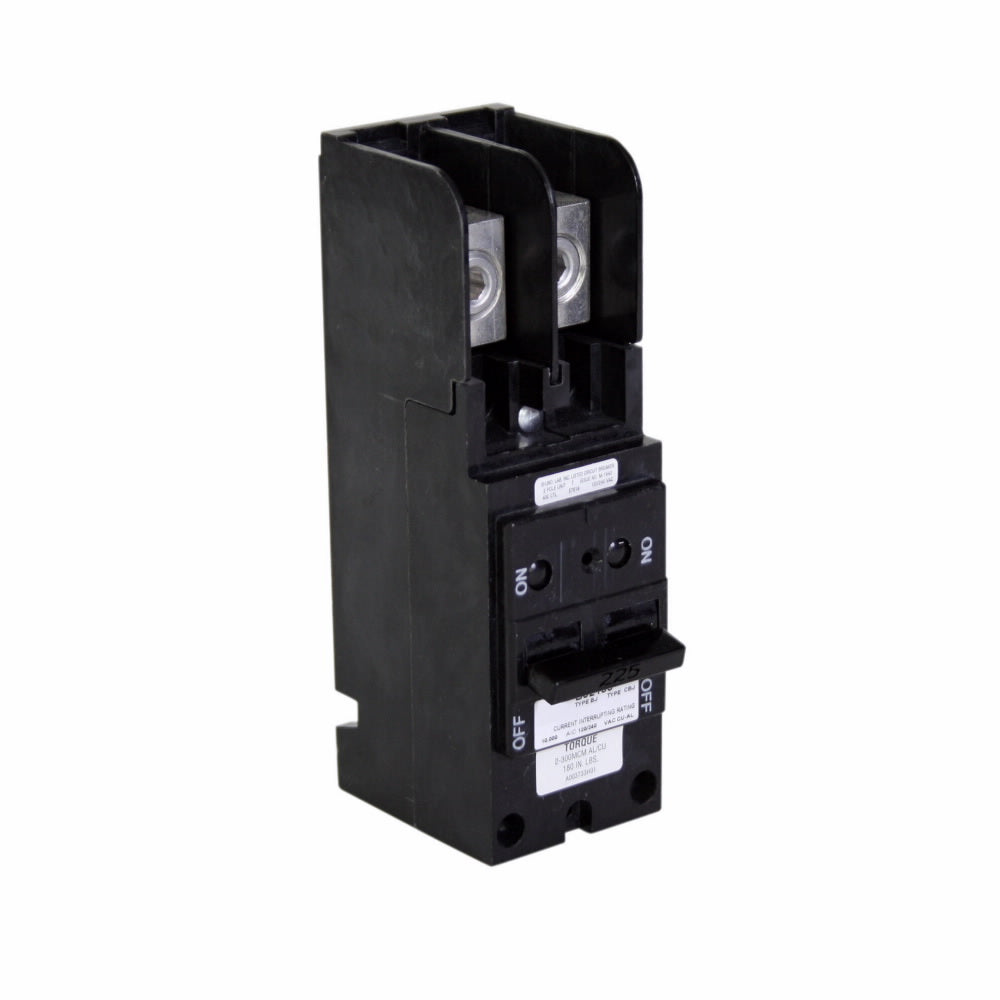

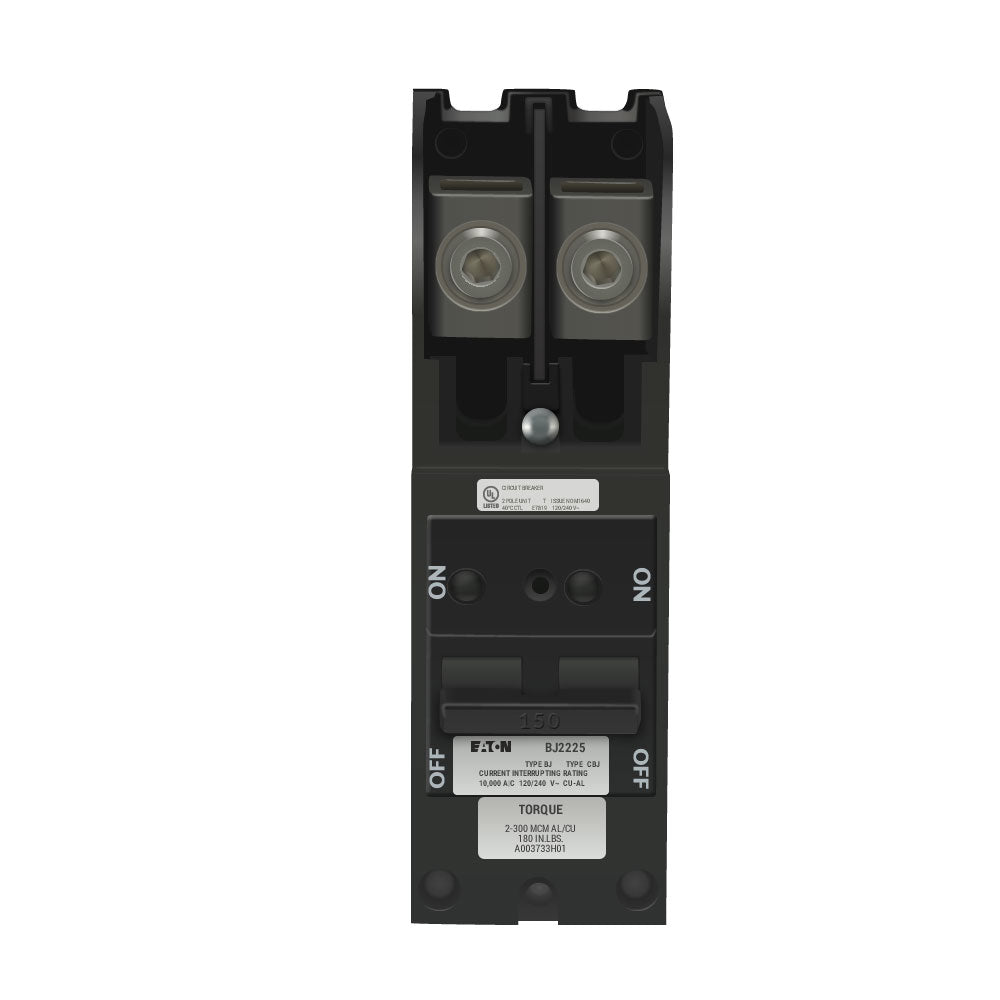

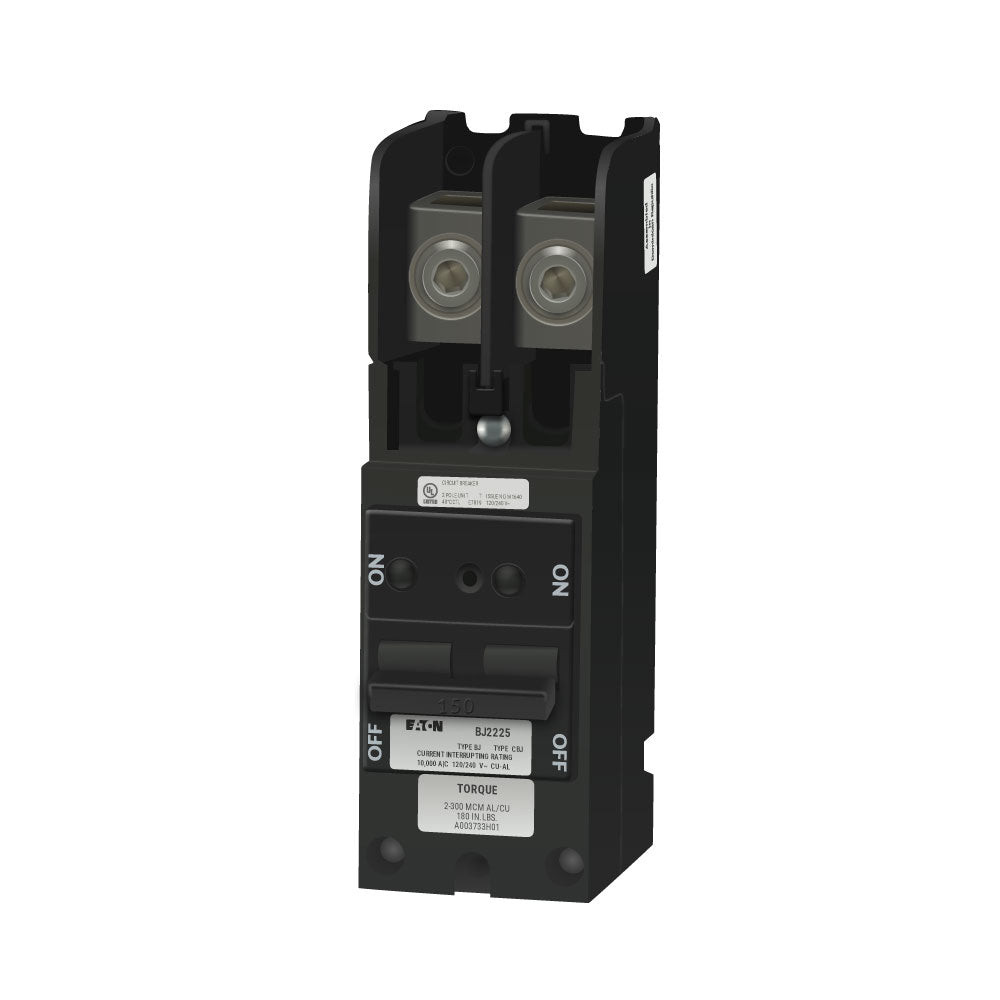

Cutler Hammer BJ2225 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 225A current rating and a 240V AC voltage rating for single-phase applications, housed in a compact 6.5" x 2.5" x 3.5" plug-in unit weighing 1.8 lb. The breaker is constructed with a thermal-magnetic trip mechanism providing both long-time and instantaneous (LI) protection, and it complies with UL 489 and Federal Specification W-C375 standards. Its 10kA interrupting rating at 240V and wide operating temperature range of -25°C to 70°C (-13°F to 158°F) make it suitable for panelboards, switchboards, and load centers, accepting copper or aluminum conductors from AWG 2 to 300 kcmil.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 225A
  • Dimensions: 6.5 in (L) x 2.5 in (H) x 3.5 in (W)
  • Weight: 1.8 lb
  • Standards: UL 489, Federal Specification W-C375
  • Applications: Panelboards, Switchboards, Load Centers
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Wire Size: AWG 2 to 300 kcmil, Copper/Aluminum
  • Certification: UL 489, Federal Specifications Classification W-C375


Product Identification
  • UPC: 786676367257
  • GTIN: 00786676367257
