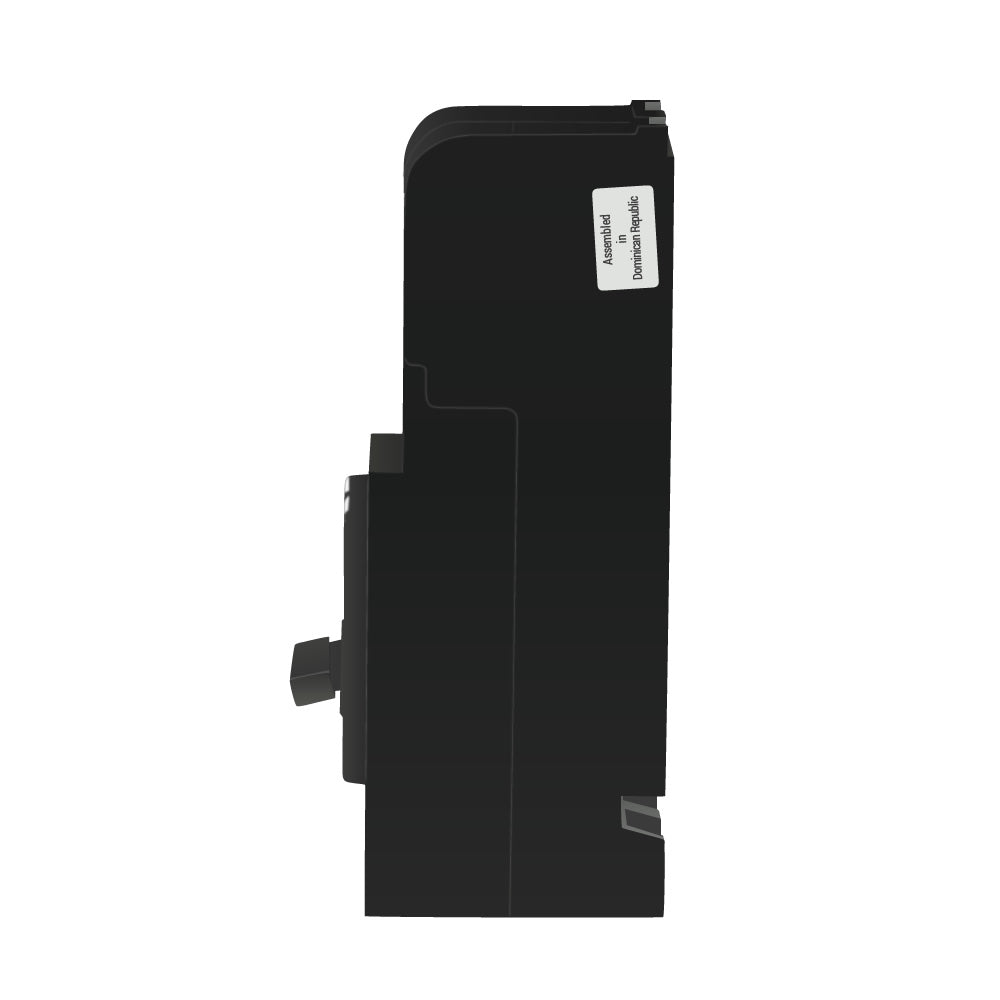

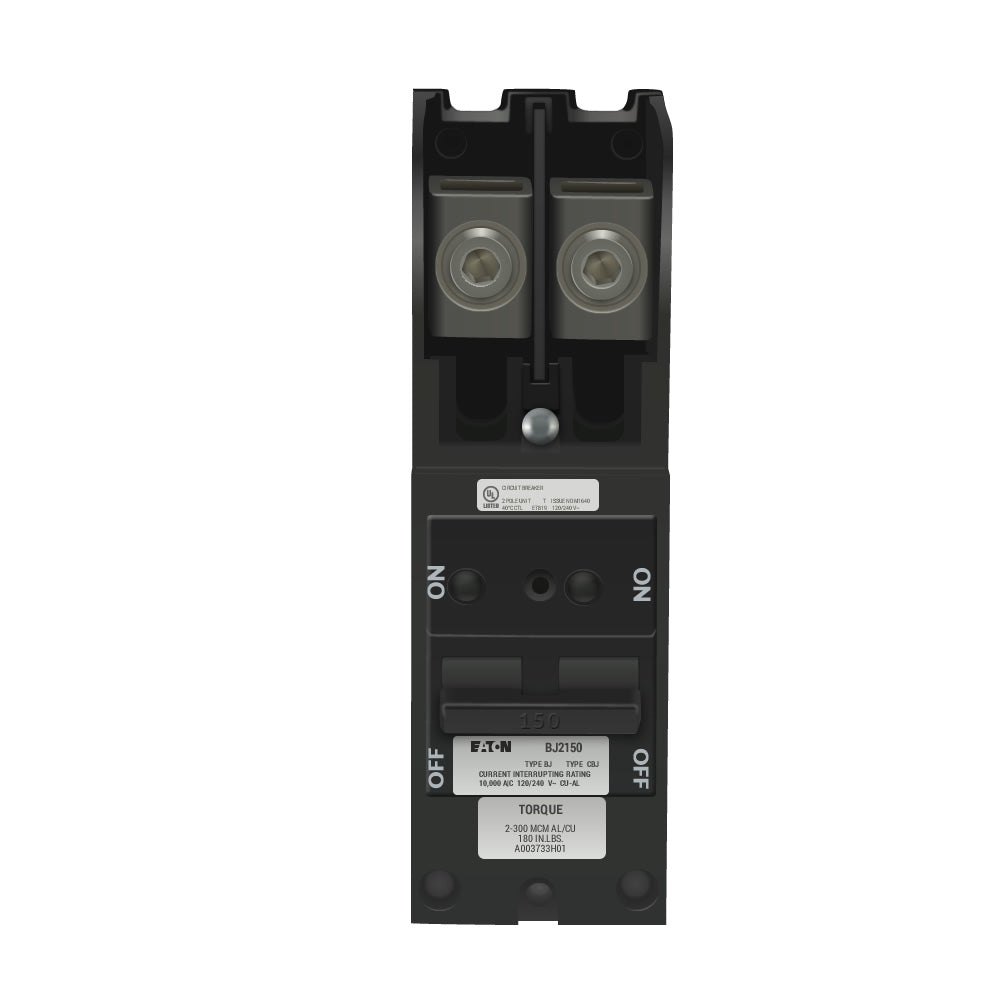

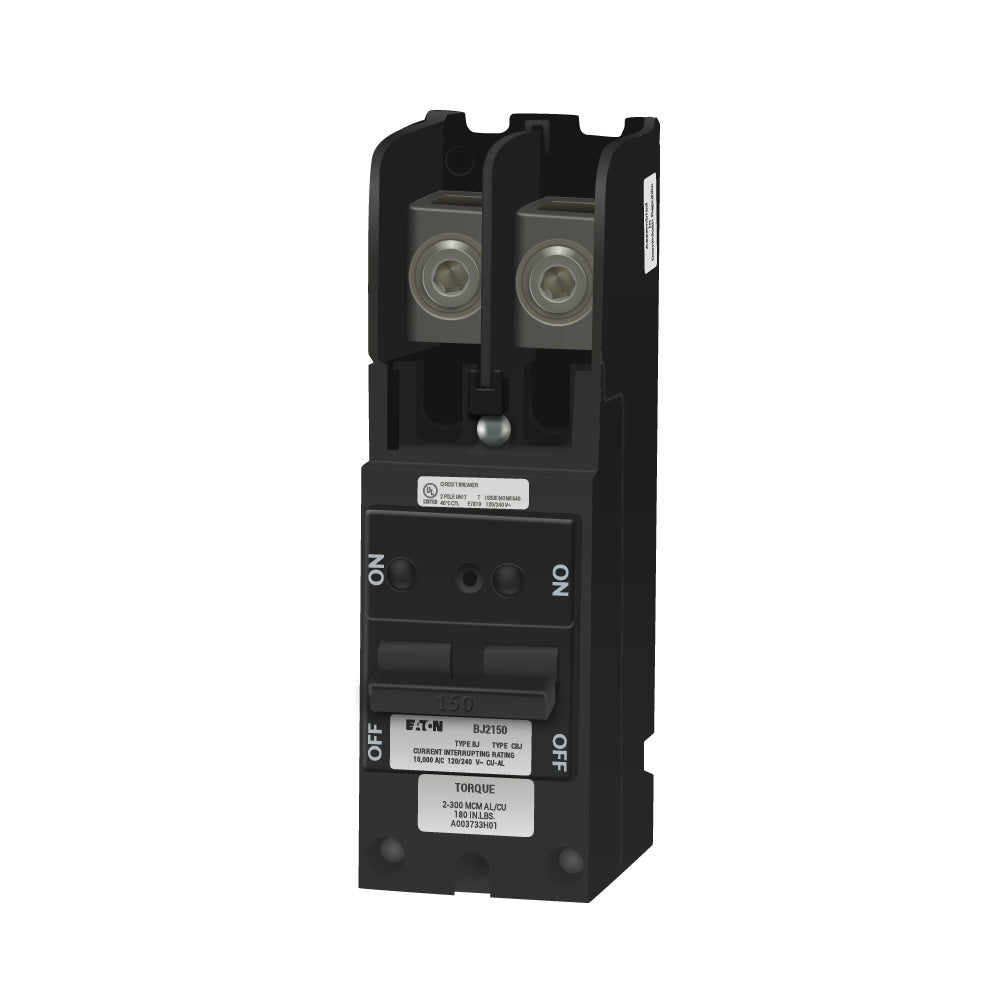

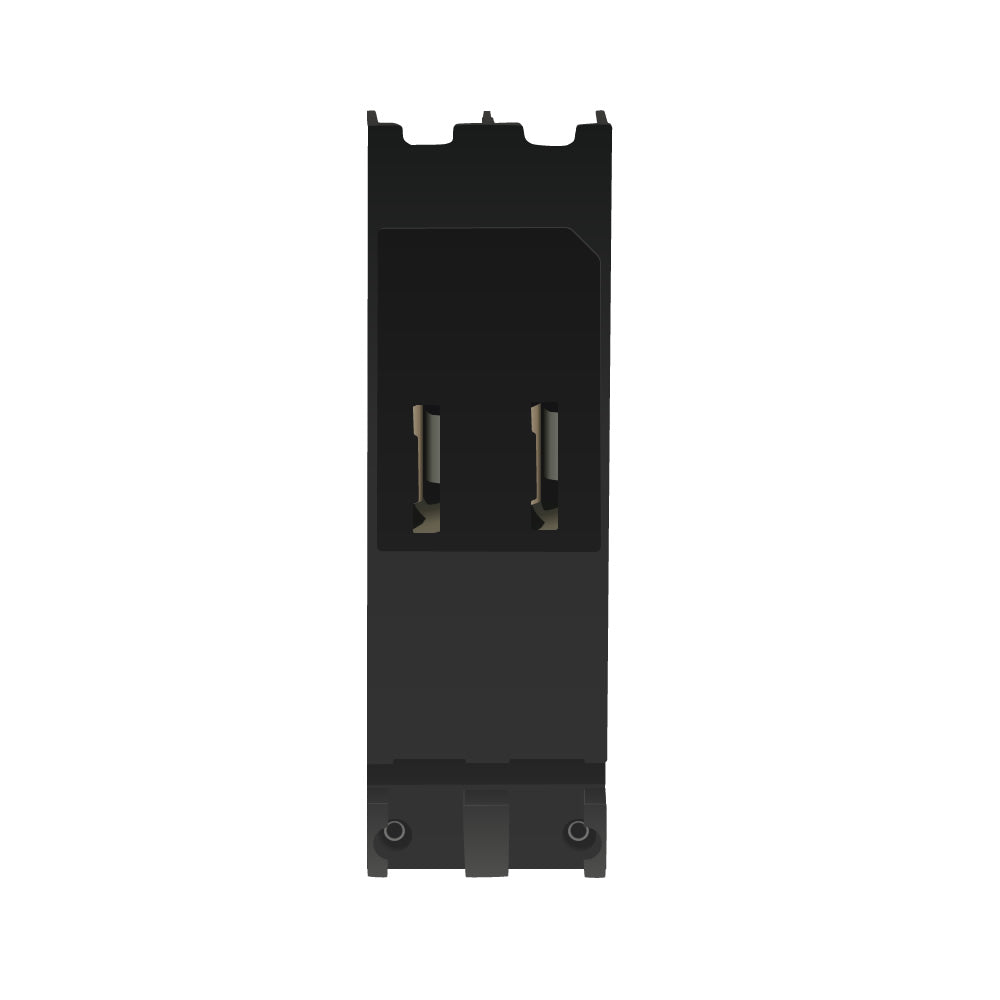

Cutler Hammer BJ2150 - Molded Case Circuit Breaker 150A 2-Pole

Price
Regular price $236.28
Regular price $1,052.86 Sale price $236.28
Save $816.58
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Cutler Hammer BJ2150 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 150A current rating and a 240V AC voltage rating, housed in a compact plug-in configuration measuring 6.5" x 2.5" x 3.5". The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is rated for 10kA interrupting capacity at 240V, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). It complies with UL 489 and Federal Specification W-C375 standards, making it suitable for protecting feeders and branch circuits in panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 150A
  • Dimensions: 6.5 in (L) x 2.5 in (H) x 3.5 in (W)
  • Standards: UL 489, Federal Specifications Classification W-C375
  • Applications: Industrial & Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Wire Size: AWG 2 to 300 kcmil, Copper/Aluminum
  • Certification: UL 489
  • Family: BJ Series
  • Country of Origin: Dominican Republic
  • Weight: 1.8 lb


Product Identification
  • UPC: 786676367103
  • GTIN: 00786676367103
