Square D
Price
Save $896.88
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BGA36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions, rated for 80A at 600V AC with an interrupting capacity of 35kA at 480V. The compact, rugged unit measures 137 mm H x 81 mm W x 89 mm D (5.4" x 3.2" x 3.5") and weighs 4.12 lb, utilizing an I-Line style plug-in connection with aluminum mechanical lugs on the OFF end for simplified installation. It complies with major global standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, and is certified by UL, IEC, CSA, CCC, EAC, and NOM. This breaker is typically applied in industrial control panels and electrical distribution equipment, operating reliably in ambient temperatures from -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: BGA Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 80A

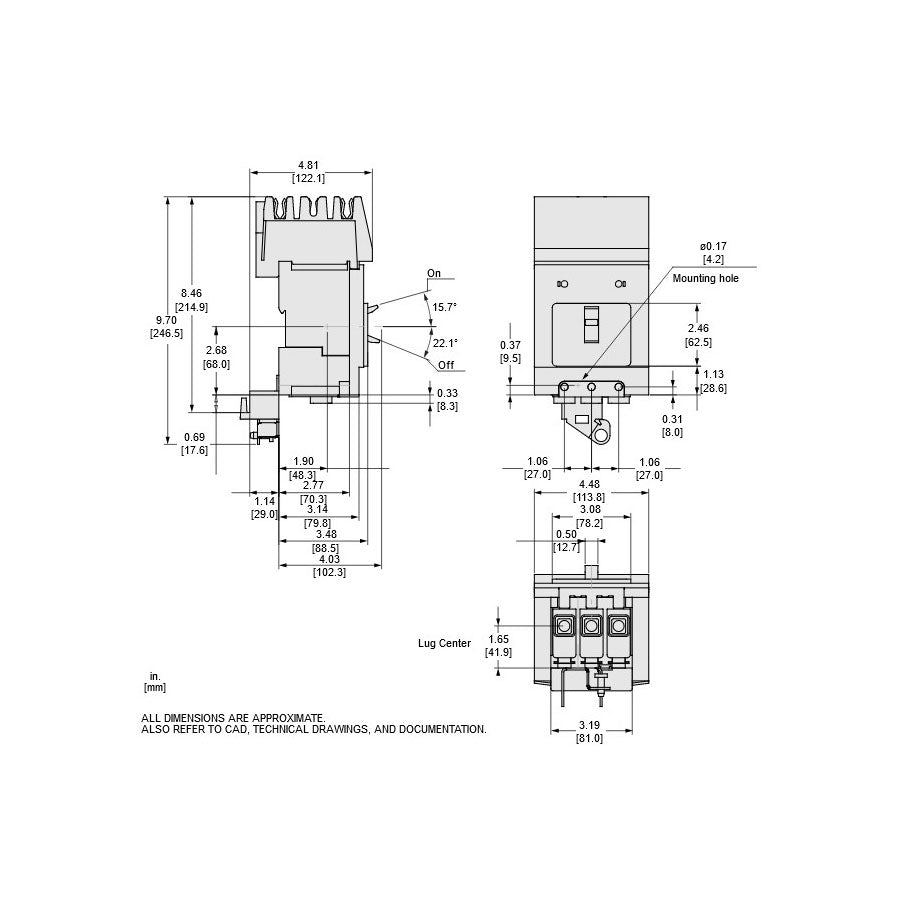

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, NMX J-266, GB 14048.2
  • Applications: Industrial Control Panels, Electrical Distribution Equipment
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • Amperage: 80A
  • AIC rating: 35kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BG
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Weight: 4.12 lb


Product Identification
  • UPC: 785901016557
  • GTIN: 03606481153876
