Square D BGA261251 - Molded Case Breaker 125A 600V (35kA AIC)
Square D BGA261251 - Molded Case Breaker 125A 600V (35kA AIC)

Square D BGA261251 - Molded Case Breaker 125A 600V (35kA AIC)

Square D
Price
Save $-92.91
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

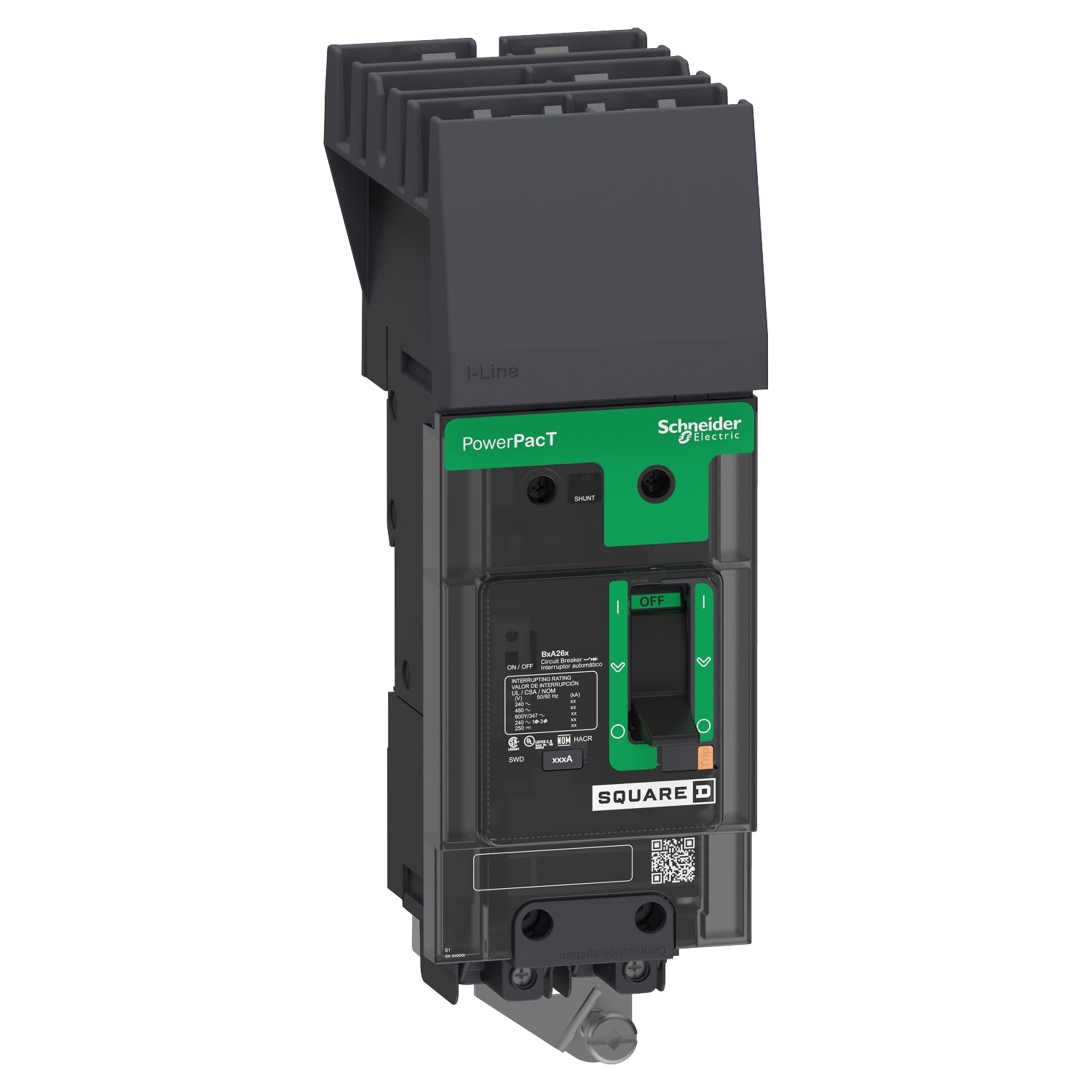

Square D BGA261251 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 125A current rating and a 600V voltage rating, housed within a compact 125A/BG frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 1.9 lb. This two-pole, single-phase breaker is constructed for thermal-magnetic protection with long-time and instantaneous trip functions, ensuring compliance with key standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line style plug-in connection and aluminum mechanical lug terminals facilitate integration into electrical distribution equipment and industrial control panels, operating effectively in temperatures from -25 to 70 °C with an interrupting capacity of 35kA at 480V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, BGA Type
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Weight: 1.9 lb
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BG
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (aluminium/copper)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: AB


Product Identification
  • UPC: 785901055242
  • GTIN: 00785901055242
