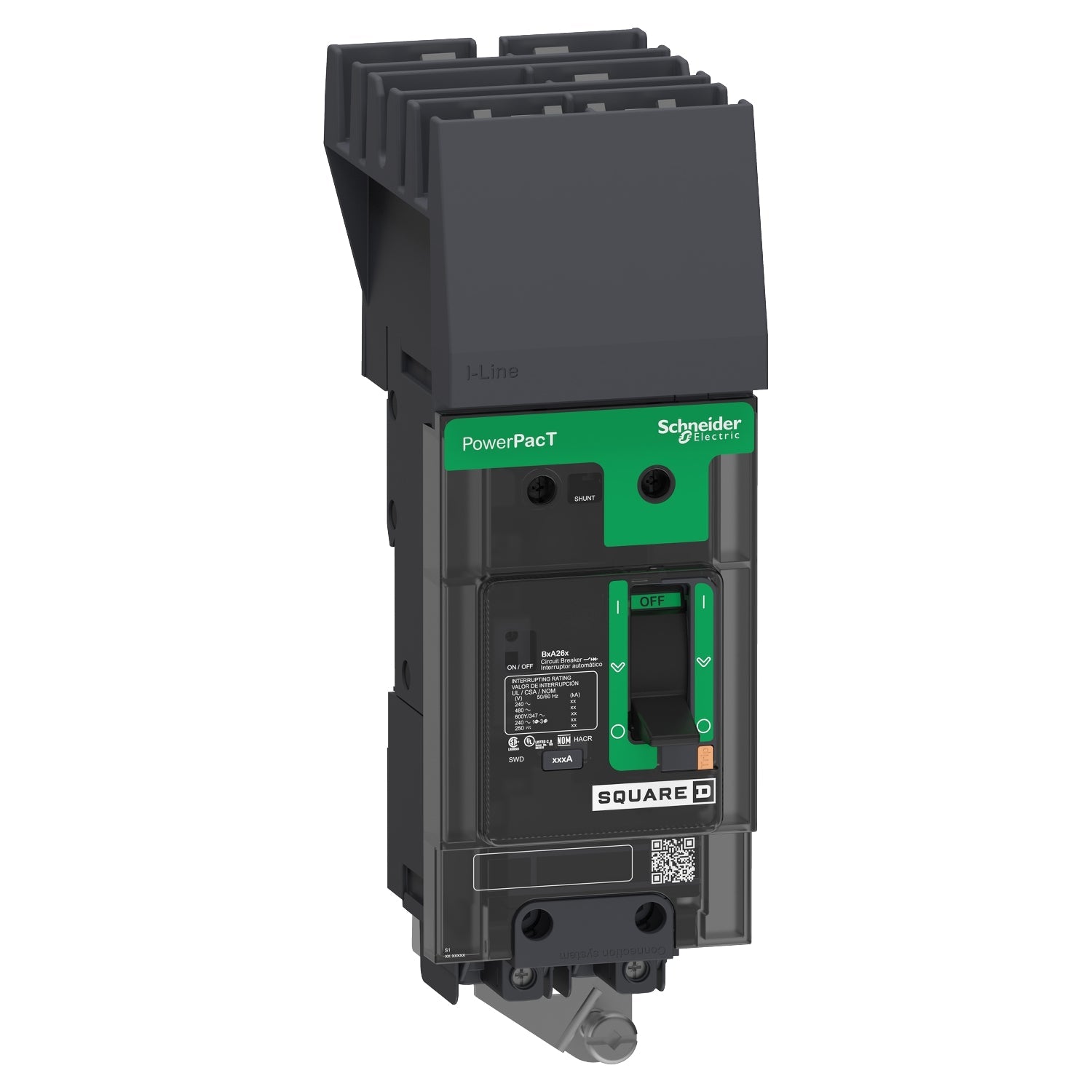

Square D BGA24100Y1 is a PowerPacT B molded case circuit breaker designed for overcurrent protection in commercial and industrial electrical systems. It is rated for 100A continuous current at 480Y/277VAC with a 2-pole configuration and provides thermal magnetic protection with long time and instantaneous trip functions. The unit measures 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm), weighs 2.91 lb, and features an I-Line, clip-on mounting style with plug-in connection. It complies with UL 489, CSA C22.2 No 5, IEC 60947-2, NEMA AB1, and other global standards, and is certified to UL, CSA, NOM, IEC, CCC, and EAC. This circuit breaker is suitable for use in electrical distribution equipment and industrial control panels, with an AIC rating of 35kAIC at 480VAC and 100kAIC at 240VAC.

Key Features & Specifications
  • Type: PowerPacT B
  • Current Rating: 100A
  • Voltage Rating: 480Y/277VAC
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Mounting: I-Line, Clip-On
  • Connection: I-Line Style Plug-In
  • Dimensions: 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight: 2.91 lb
  • Wire Size: AWG 14...AWG 2/0 aluminium/copper
  • AIC Rating: 35kAIC at 480VAC, 100kAIC at 240VAC
  • Phase: 1
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Standards: EN/IEC 60947-5-1, UL 489, CSA C22.2 No 5, NMX J-266, GB 14048.2, EN/IEC 60947-2, NEMA AB1
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Compatible Frames: Electrical Distribution Equipment; Industrial Control Panels
  • Country of Origin: United States


Product Identification
  • UPC: 785901461739
