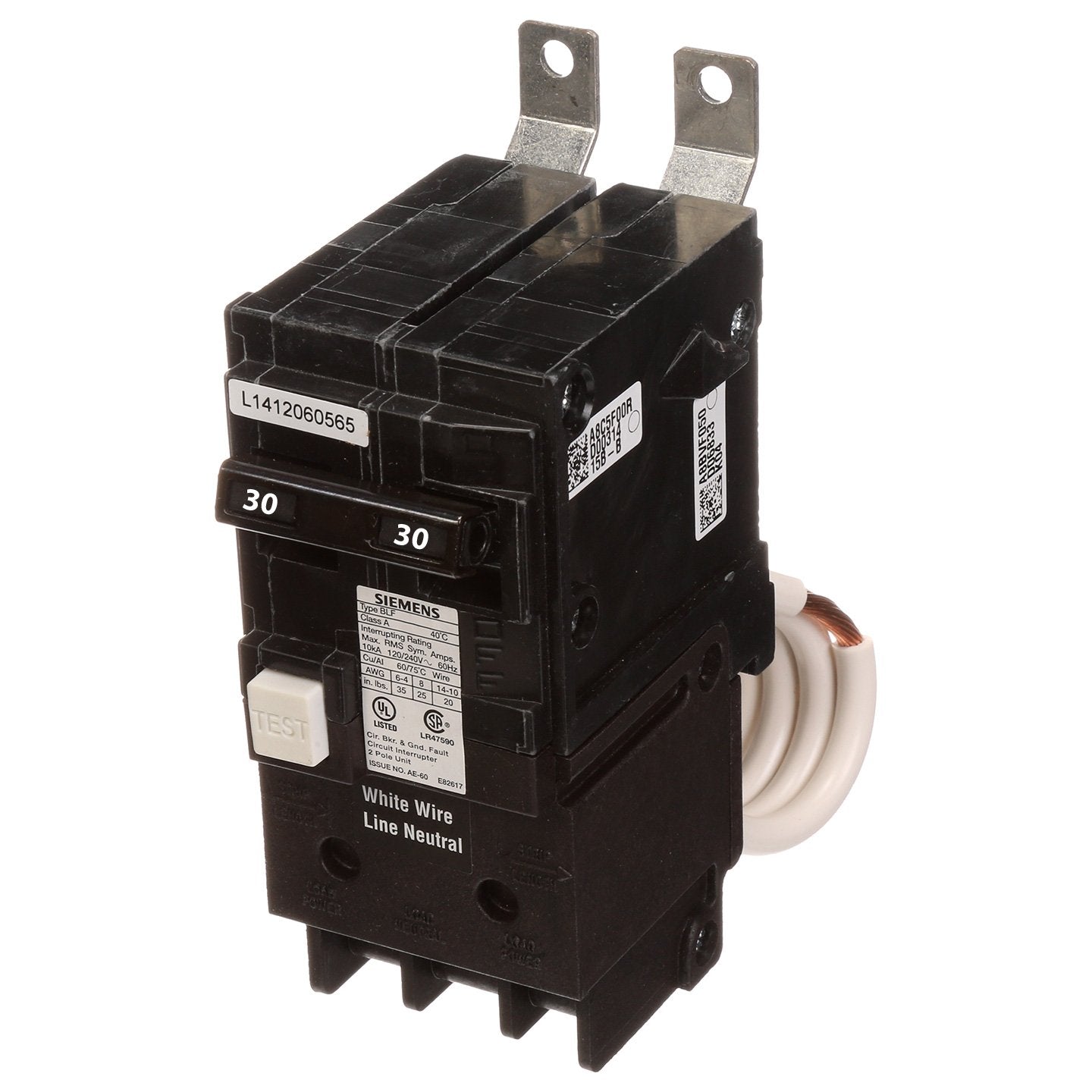

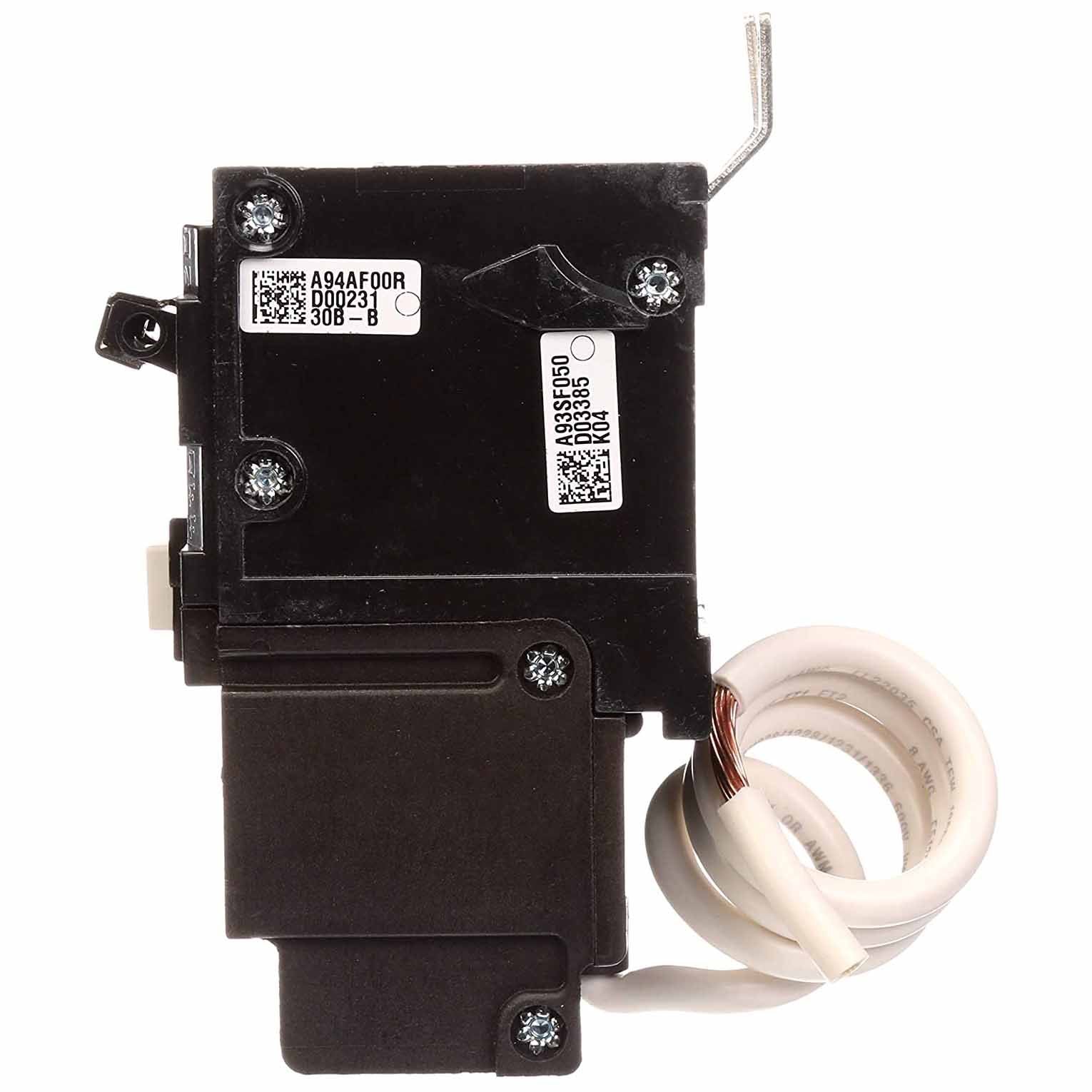

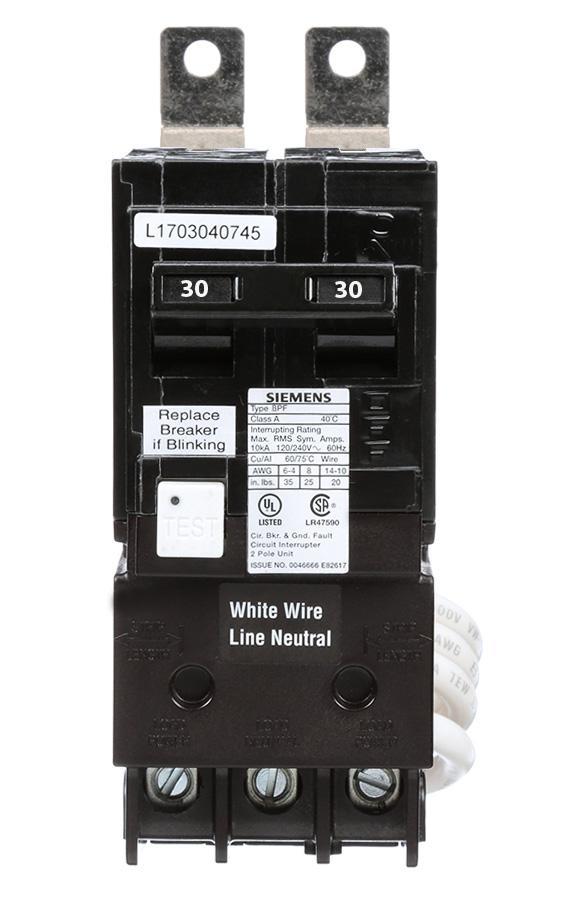

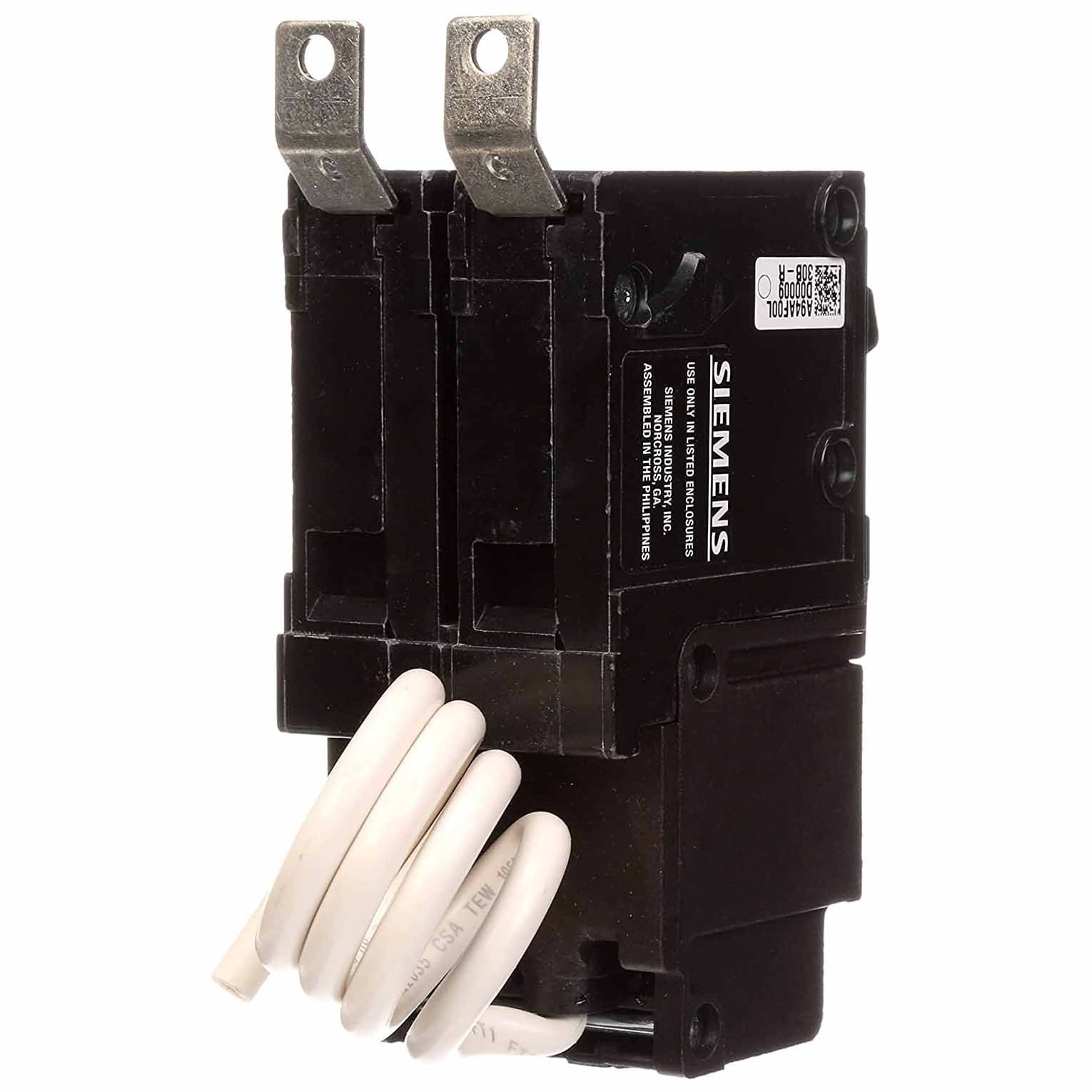

Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)
Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)

Siemens BF230A - GFCI Circuit Breaker 30A 2-Pole (10kA AIC)

Siemens
Price
Save $590.81
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens BF230A is a molded case circuit breaker designed for providing ground fault and overload protection in single-phase electrical systems. It features a 30A current rating and a 240V voltage rating, housed within a compact, bolt-on configuration measuring 7.874 x 1.969 x 2.756 inches and weighing 0.992 lb. The breaker is constructed with thermal-magnetic protection and a Class A 5mA Ground Fault Circuit Interrupter, ensuring compliance with CSA, HACR, NOM, and UL standards. It is engineered for reliable performance in Siemens panelboards, offering a 10kA interrupting rating at 240V and an operational temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLF Type, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 7.874 x 1.969 x 2.756 inch (200 x 50 x 70 mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Siemens Panelboards, Single-Phase Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 2
  • Protection: Ground Fault Circuit Interrupter (Class A - 5mA), Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 60A/BLHF
  • Breaker Type: Ground Fault Circuit Interrupter (GFCI)
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Weight: 0.992 lb


Product Identification
  • UPC: 887621215415
  • GTIN: 00887621215415
