Siemens BF125 - GFCI Circuit Breaker 25A 1-Pole 120V
Siemens BF125 - GFCI Circuit Breaker 25A 1-Pole 120V

Siemens BF125 - GFCI Circuit Breaker 25A 1-Pole 120V

Siemens
Price
Save $396.60
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

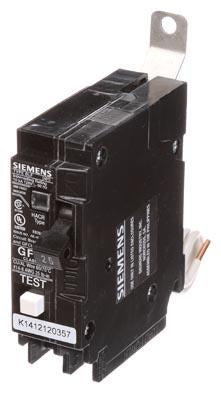

Siemens BF125 is a molded case circuit breaker designed for providing ground fault protection and overcurrent protection in single-phase electrical systems. It features a 25A current rating and a 120V voltage rating, housed within a compact, bolt-on unit measuring 4.724 x 3.937 x 1.969 inches and weighing 0.507 lb. The breaker is constructed with a thermal magnetic trip mechanism for LI (Long-time and Instantaneous) protection and is certified to CSA, HACR, NOM, and UL standards. It is engineered for integration into Siemens panelboards, offering a 10kA interrupting capacity and Class A ground fault protection with a 5mA trip threshold for enhanced personnel safety in commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Circuit Interrupter (Class A - 5mA), Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 25A
  • Dimensions: 4.724" H x 3.937" W x 1.969" D (120mm x 100mm x 50mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Commercial and Light Industrial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 1
  • Protection: Ground Fault & Overcurrent
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 60A/BLHF
  • Panel Type: Siemens Panelboards
  • Breaker Type: GFCI
  • MCM Size: Wire Range 12-10 AWG (Aluminum), 14-10 AWG (Copper)
  • Mounting: Panel Mount
  • Certification: CSA, HACR, NOM, UL
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Standards: UL 489, CSA C22.2
  • Family: BL Series
  • Country of Origin: Philippines
  • Weight: 0.507 lb


Product Identification
  • UPC: 783643271326
  • GTIN: 00783643271326
