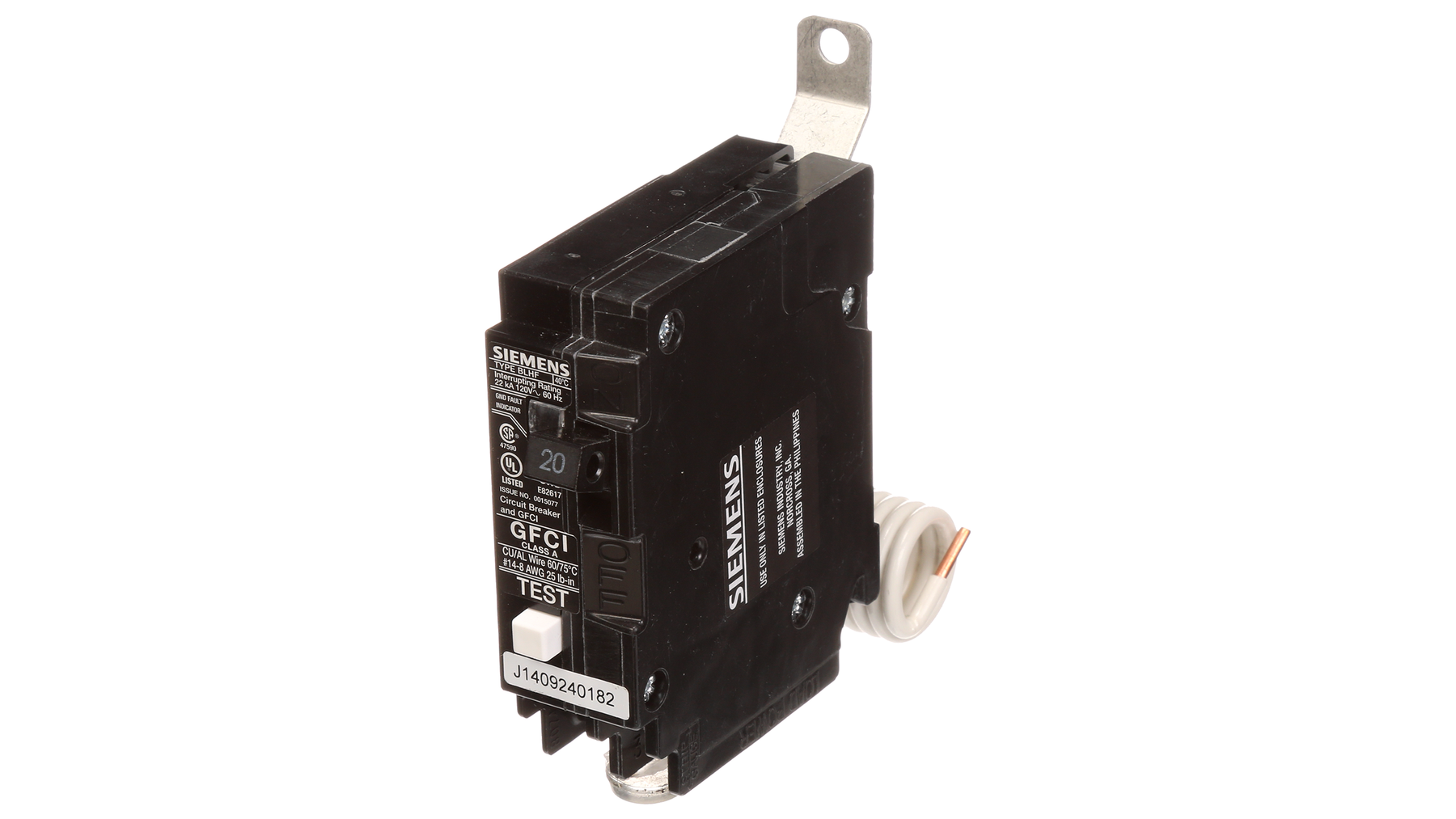

Siemens BF120H - GFCI Breaker 20A 1-Pole (22kA AIC)
Siemens BF120H - GFCI Breaker 20A 1-Pole (22kA AIC)

Siemens BF120H - GFCI Breaker 20A 1-Pole (22kA AIC)

Siemens
Price
Save $665.35
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens BF120H is a molded case circuit breaker designed for providing ground fault protection and overcurrent protection in single-phase electrical systems. It is rated for 120V AC operation with a 20A current rating and features a 22kA interrupting capacity at 120V. The breaker is constructed with a compact form factor measuring 1.969 x 5.906 x 3.937 inches and a weight of 0.419 lb, utilizing a bolt-on connection with lug terminals suitable for wire sizes from a minimum of 12 AWG (Al) or 14 AWG (Cu) to a maximum of 10 AWG. It complies with major industry standards including UL Listing, CSA Certification, HACR rating, and NOM Certification. This Class A Ground Fault Circuit Interrupter (GFCI) with 5mA sensitivity and thermal-magnetic protection is typically applied in Siemens panelboards for residential and light commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Circuit Interrupter (Class A - 5mA), BLHF type with thermal-magnetic protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 1.969" x 5.906" x 3.937" (50mm x 150mm x 100mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens Panelboards for residential and light commercial single-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Single-pole
  • Phase: 1
  • AIC Rating: 22kA @ 120V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic, Ground Fault (5mA)
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 60A/BLHF
  • Breaker Type: GFCI
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Certification: UL, CSA, HACR, NOM
  • Panel Type: Siemens Panelboards
  • Weight: 0.419 lb
  • Family: BF Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643069619
  • GTIN: 00783643069619
