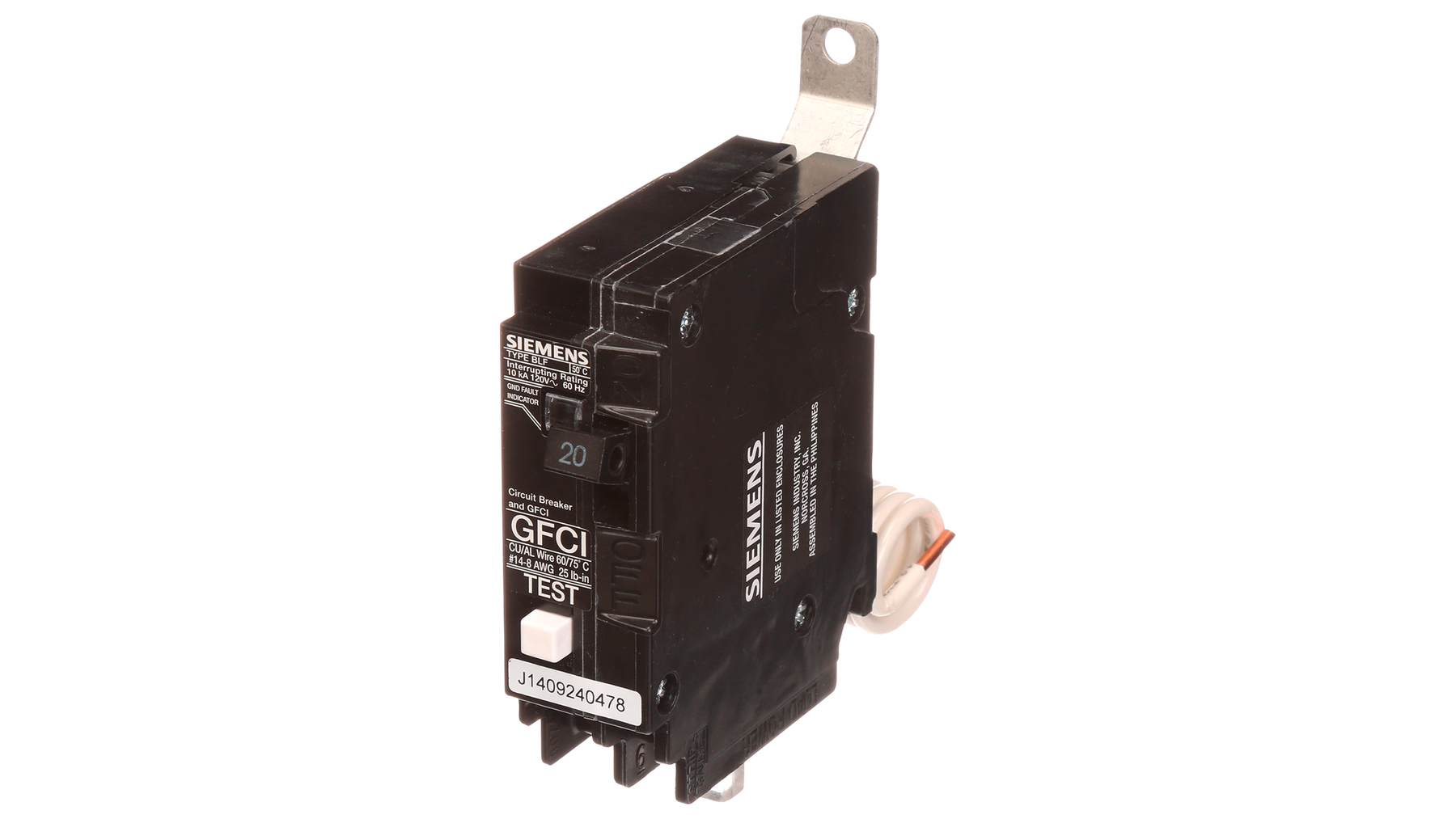

Siemens BF120 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 120V AC voltage rating, housed within a compact, bolt-on configuration measuring 3.543 x 5.512 x 1.575 inches and weighing 2.205 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection, offers a 10kA interrupting capacity at 120V, and operates reliably across a temperature range of -25 to 70 °C. This single-pole breaker is engineered for compliance with relevant industry standards and is typically applied in panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: BLF Series Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 3.543" H x 5.512" W x 1.575" D (90mm x 140mm x 40mm)
  • Standards: Designed to meet applicable industrial standards
  • Applications: Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 2.205 lb (1.0 kg)


Product Identification
  • UPC: 783643069602
  • GTIN: 00783643069602
