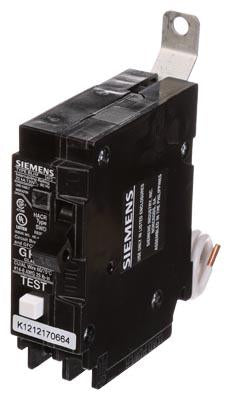

Siemens BF115H - GFCI Circuit Breaker 15A 1-Pole (22kA AIC)
Siemens BF115H - GFCI Circuit Breaker 15A 1-Pole (22kA AIC)

Siemens BF115H - GFCI Circuit Breaker 15A 1-Pole (22kA AIC)

Siemens
Price
Save $794.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BF115H is a molded case circuit breaker designed for providing ground fault and overload protection in single-phase electrical systems. It operates at a 120V AC voltage rating with a 15A current rating, featuring a compact bolt-on design with dimensions of 4.724" x 3.937" x 0.787" and a weight of 0.441 lb. The breaker is constructed with a thermal magnetic trip unit for reliable protection and complies with key industry standards including UL, CSA, HACR, and NOM certifications. Its typical applications include installation in Siemens panelboards for commercial and light industrial environments where Class A ground fault protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Circuit Interrupter (Class A - 5mA), BLHF Type, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Dimensions: 4.724" H x 3.937" W x 0.787" D (120mm x 100mm x 20mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens Panelboards, Commercial & Light Industrial Single-Phase Systems
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Coil Voltage Maximum: Not Applicable
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Not Specified
  • Phase: 1
  • Voltage: 120V
  • Amperage: 15A
  • AIC rating: 22kA @ 120V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic, Ground Fault (Class A)
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 60A/BLHF
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens Panelboards
  • Breaker Type: Ground Fault Circuit Interrupter (GFCI)
  • Control Voltage Minimum: Not Applicable
  • Control Voltage Maximum: Not Applicable
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Fuse Class: Not Applicable
  • Insulation Temperature: Not Specified
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: Class A GFCI
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Bolt-on
  • Hz: 50/60 Hz (Typical for Standard Ratings)
  • Coil Material: Not Applicable
  • Horse Power: Not Specified
  • Aux Contacts: Not Specified
  • CPT: Not Specified
  • Full Load Amps: Not Specified
  • Dist Voltage: Not Specified
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: Not Specified
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Molded Case
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: Not Applicable
  • Wire: Terminates 12-10 AWG
  • Amperage Maximum: 15A
  • Amperage Minimum: 15A
  • Nema Rating: HACR Rated
  • Switch Style: Not Specified
  • Wire Size: 12-10 AWG
  • Certification: UL, CSA, HACR, NOM
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Frequency Rating: Standard 50/60 Hz
  • Phase Connection: Single-Phase
  • Standards: UL 489, CSA C22.2
  • Compatible Frames: Siemens BL Series
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: BLHF
  • Current Rating: 15A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 783643069596
  • GTIN: 00783643069596
