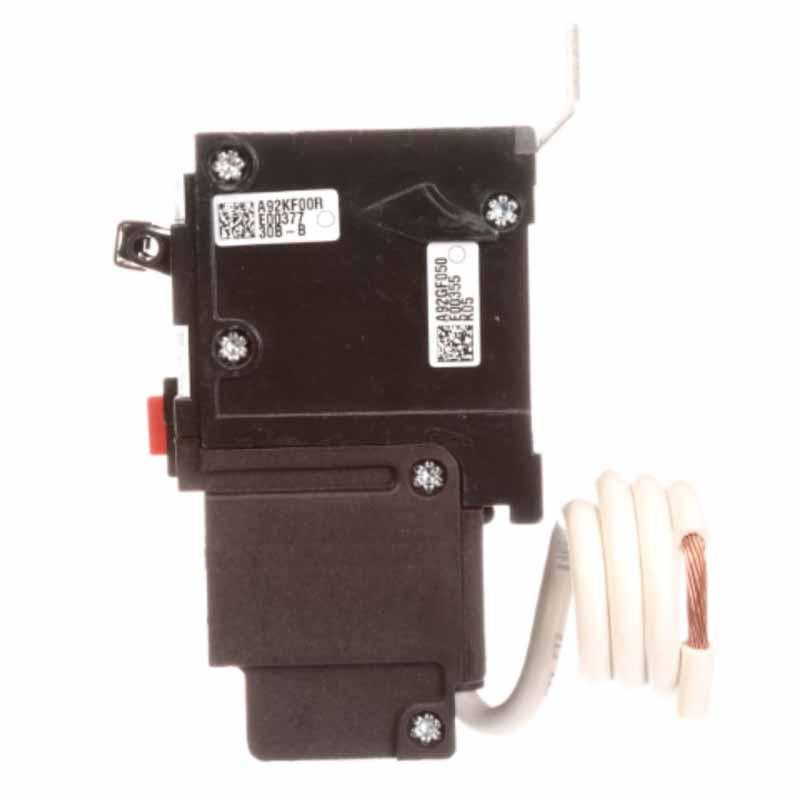

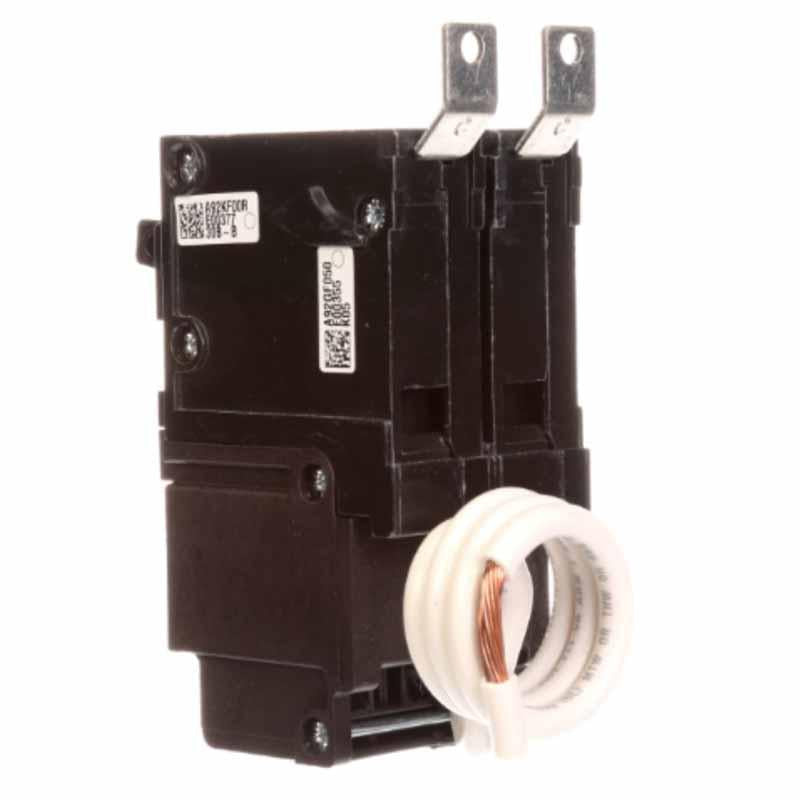

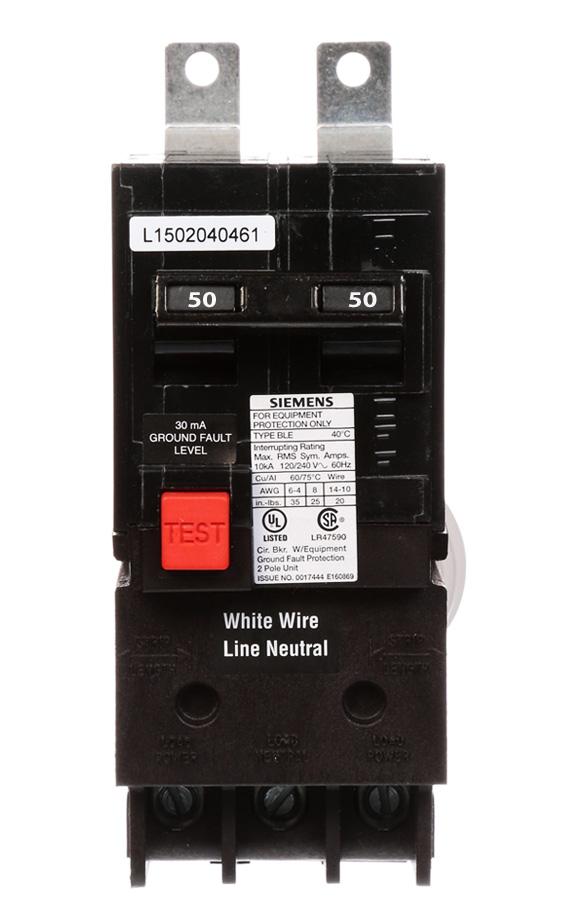

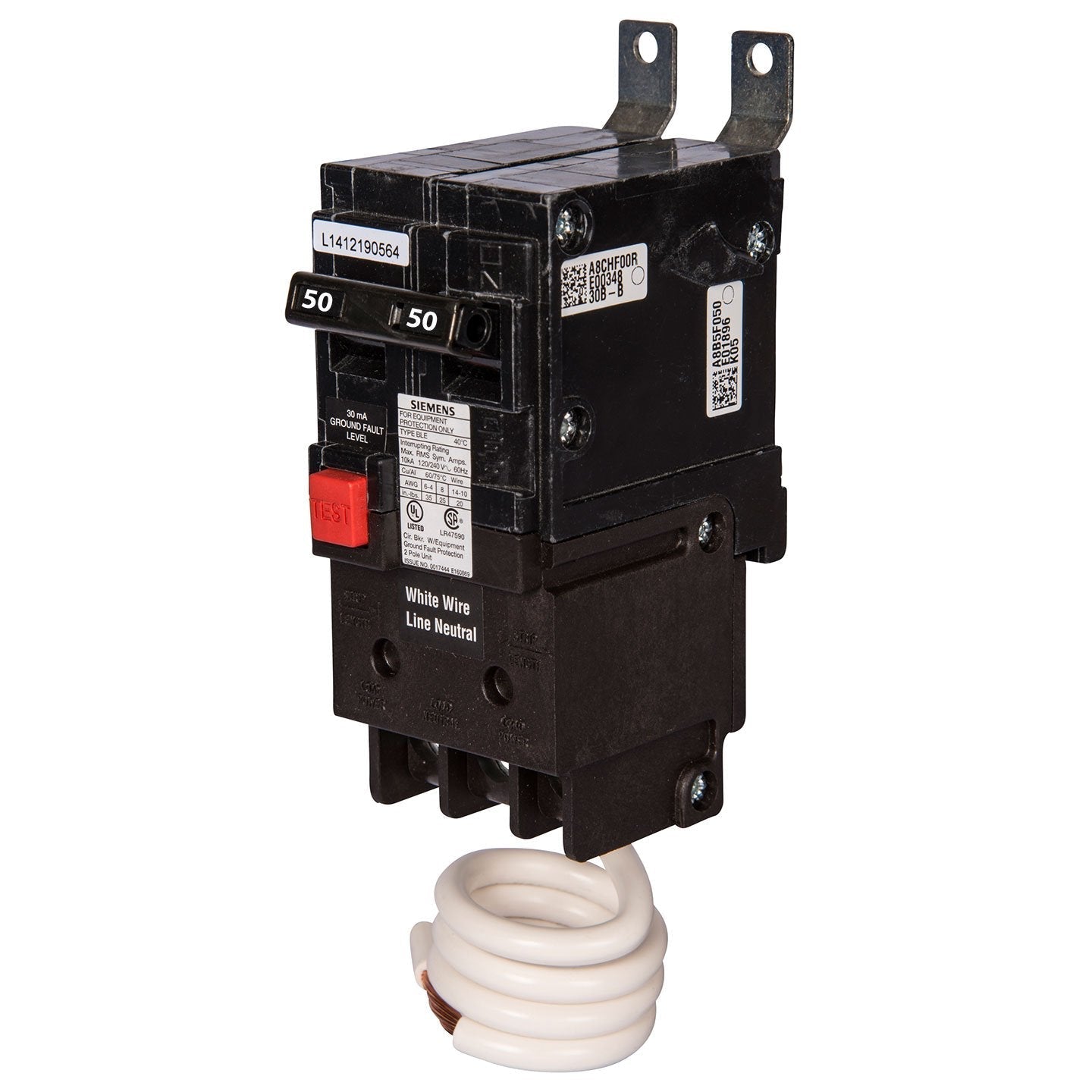

Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)
Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)

Siemens BE250 - 50A 2-Pole GFEP Breaker (10kA AIC)

Siemens
Price
Save $957.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens BE250 is a molded case circuit breaker designed for ground fault equipment protection in single-phase electrical systems. It provides a 50A current rating and a voltage rating of 120/240V AC, with a 10kA interrupting capacity at 240V for reliable fault protection. The breaker features a compact, bolt-on design with dimensions of 1.969" x 2.756" x 5.906" (50 x 70 x 150 mm) and a weight of 1.036 lb, utilizing lug terminals suitable for wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu). It is constructed with thermal-magnetic protection for long-time and instantaneous trip (LI) functions and is certified to UL, CSA, HACR, and NOM standards for broad industrial compliance. This breaker is typically applied within Siemens P1 panelboards for commercial and light industrial power distribution, operating effectively in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLE Type, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 50A
  • Frame Size: 60A/BLE
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: Ground Fault Equipment Protection
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 1.969" x 2.756" x 5.906" (50 x 70 x 150 mm)
  • Weight: 1.036 lb
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Philippines


Product Identification
  • UPC: 783643274143
  • GTIN: 00783643274143
