Siemens
Price
Save $734.69
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

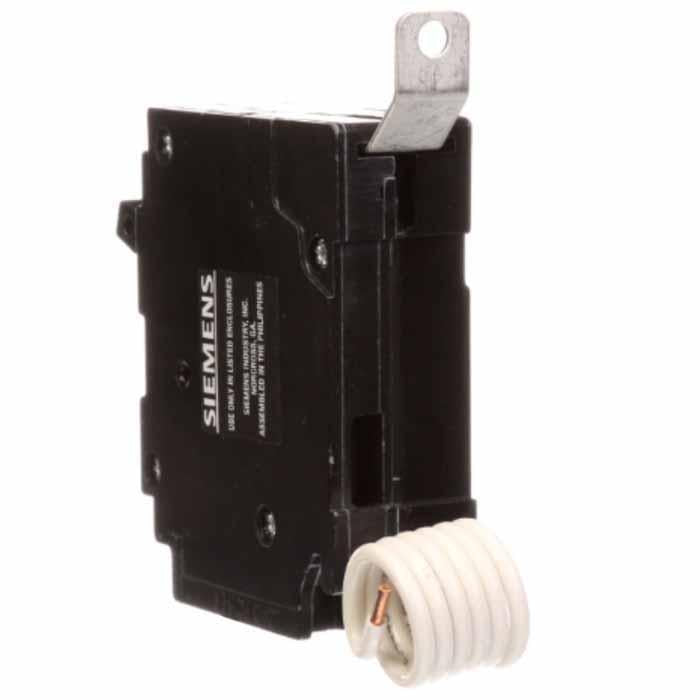

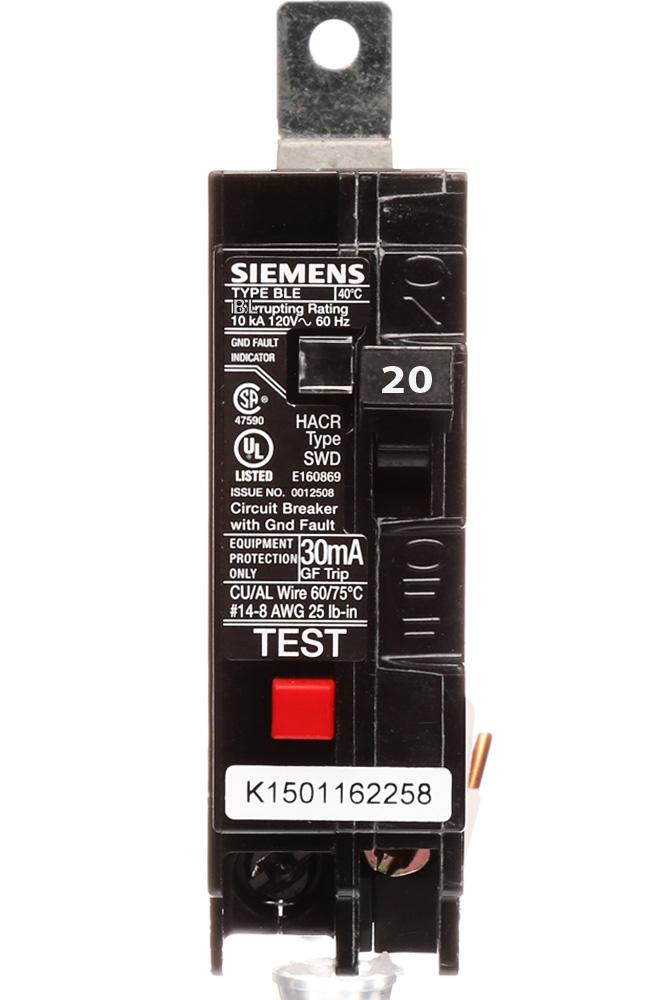

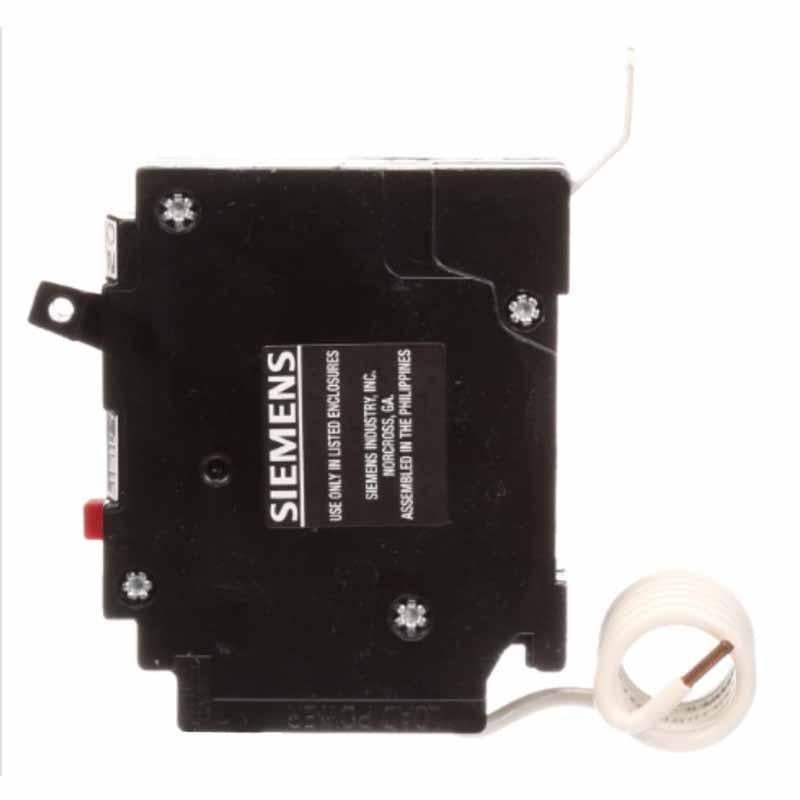

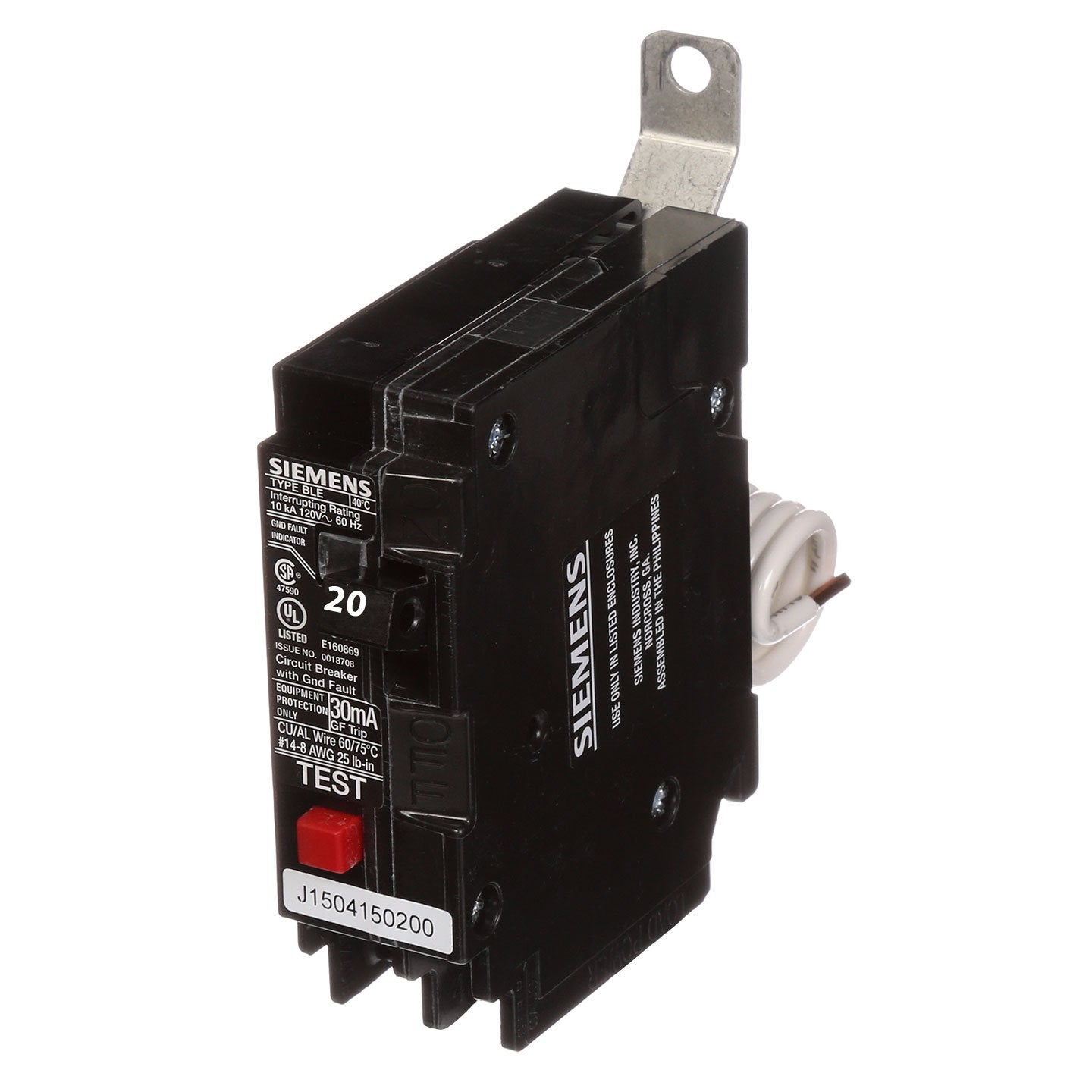

Siemens BE120 Circuit Breaker is a 1-pole, 120V molded case circuit breaker designed for ground fault equipment protection in residential and commercial applications. It features a 20A current rating with a 10kA@120V interrupting capacity, utilizing thermal magnetic protection for LI (Long-Time and Instantaneous Trip) functions. The unit measures 12.598 x 7.48 x 9.449 inches, weighs 0.397 lb, and is constructed with a 60A/BLE frame, bolt-on connection, and lug terminals accepting wire sizes from 14 AWG (Cu) to 10 AWG (Al/Cu). This breaker is CSA Certified, HACR Rated, NOM Certified, and UL Listed, ensuring compliance with North American safety standards. It is specifically designed for use in Siemens P1 Panelboards, providing reliable overcurrent and ground fault protection in industrial and commercial power distribution systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Ground Fault Equipment Protection, Thermal Magnetic
  • Voltage Rating: 120V
  • Current Rating: 20A
  • Dimensions: 12.598 x 7.48 x 9.449 inch
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Siemens P1 Panelboards, industrial/commercial power distribution
  • Switch Type: Molded Case
  • Configuration: 1-Pole
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Shipping Dimensions: 12.598 x 7.48 x 9.449 inch
  • Phase: 1
  • Voltage: 120V
  • Amperage: 20A
  • AIC rating: 10kA@120V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 60A/BLE
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Ground Fault Equipment Protection
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-on
  • Hz: Not specified
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 20A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: 14 AWG (Cu) to 10 AWG (Al/Cu)
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Frequency Rating: Not specified
  • Phase Connection: 1-Phase
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Compatible Frames: 60A/BLE
  • Installation Type: Bolt-on
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: 60A/BLE
  • Current Rating: 20A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70 °C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 783643266100
  • GTIN: 00783643266100
