Square D BDA36110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A continuous current rating and a 600V AC voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 3.201 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit offering long-time and instantaneous protection, and it complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5. Its I-Line connection and aluminum mechanical lugs facilitate installation in electrical distribution equipment and industrial control panels, supporting wire sizes from 14 AWG to 2/0 AWG for both aluminum and copper conductors within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Frame Size: 125A/BD
  • Poles: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 2/0 AWG (Al/Cu)

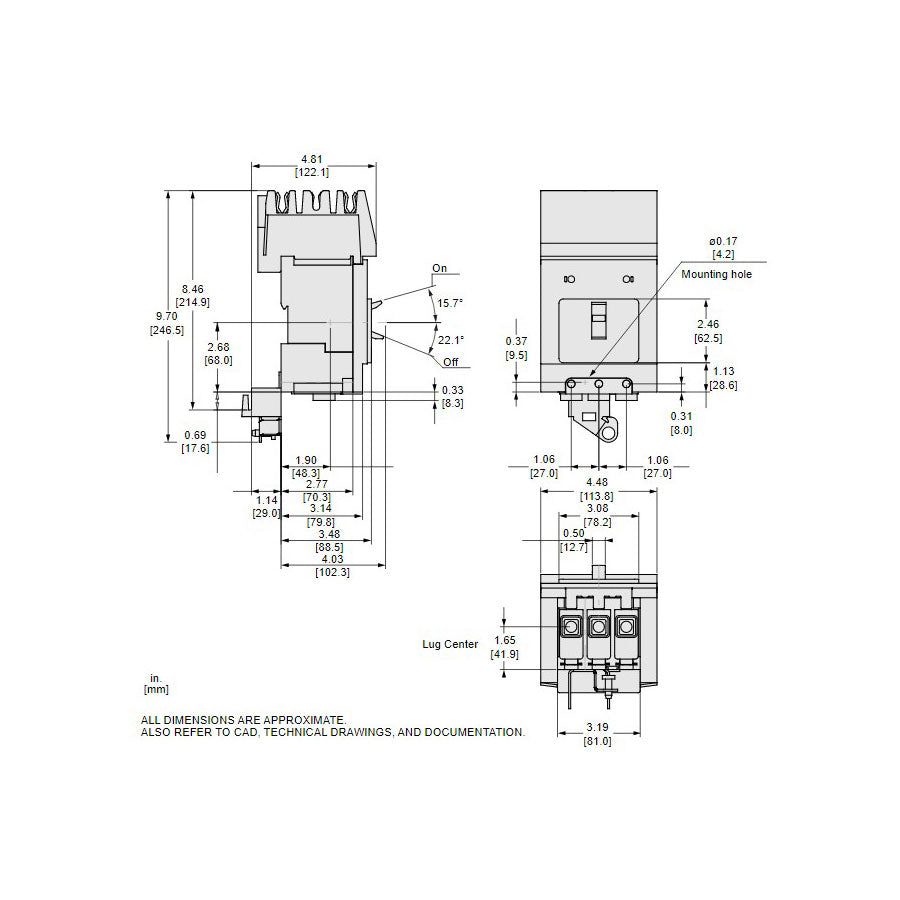

  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 3.201 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL 489, IEC 60947-2, CSA C22.2 No. 5, NEMA AB1, GB 14048.2, NMX J-266
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Functions: Long Time and Instantaneous Trip
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 785901051893
  • GTIN: 00785901051893
