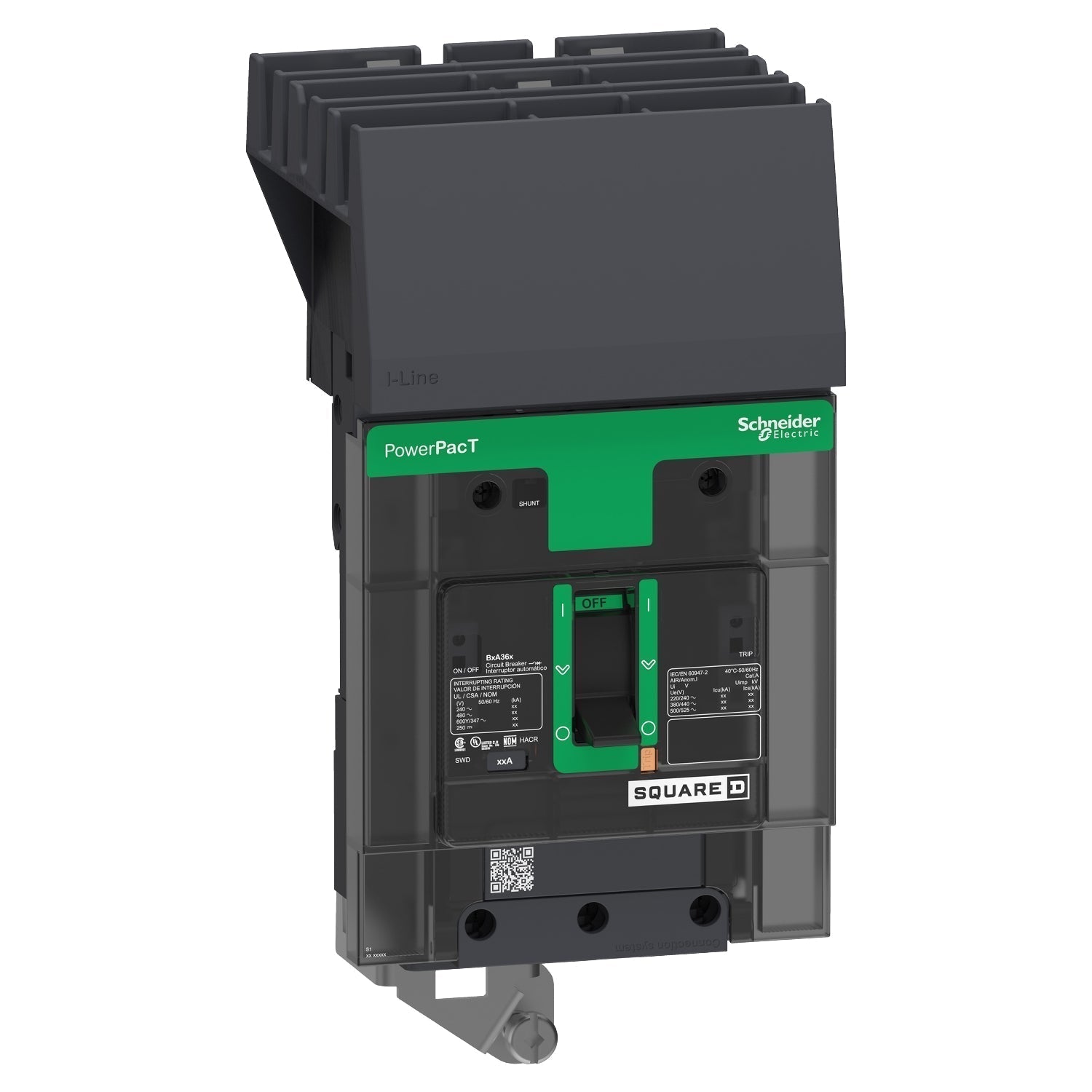

Square D BDA36045 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 45A current rating and a 600V voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 81 mm W x 89 mm D and weighing 4.12 lb. This thermal-magnetic breaker complies with major international standards including UL 489, IEC 60947-2, and CSA C22.2 No 5, and is typically applied in electrical distribution equipment and industrial control panels for branch circuit protection.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker (BDA)
  • Voltage Rating: 600V AC
  • Current Rating: 45A
  • Frame Size: 125A/BD
  • Poles: 3
  • AIC Rating: 18kA at 480V AC
  • Connection: I-Line ON end, Al Mechanical Lug OFF end
  • Protection Functions: Long time and instantaneous
  • Phase Connection: ABC
  • Wire Size Range: 14 AWG to 2/0 AWG for aluminium or copper
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certifications: UL 489, IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, CCC, EAC, NOM
  • Panel Type: Electrical distribution equipment, industrial control panels
  • Dimensions: 137 mm H x 81 mm W x 89 mm D (5.4 in x 3.2 in x 3.5 in)
  • Weight: 4.12 lb


Product Identification
  • UPC: 785901051398
  • GTIN: 00785901051398
