Schneider Electric
Price
Save $413.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

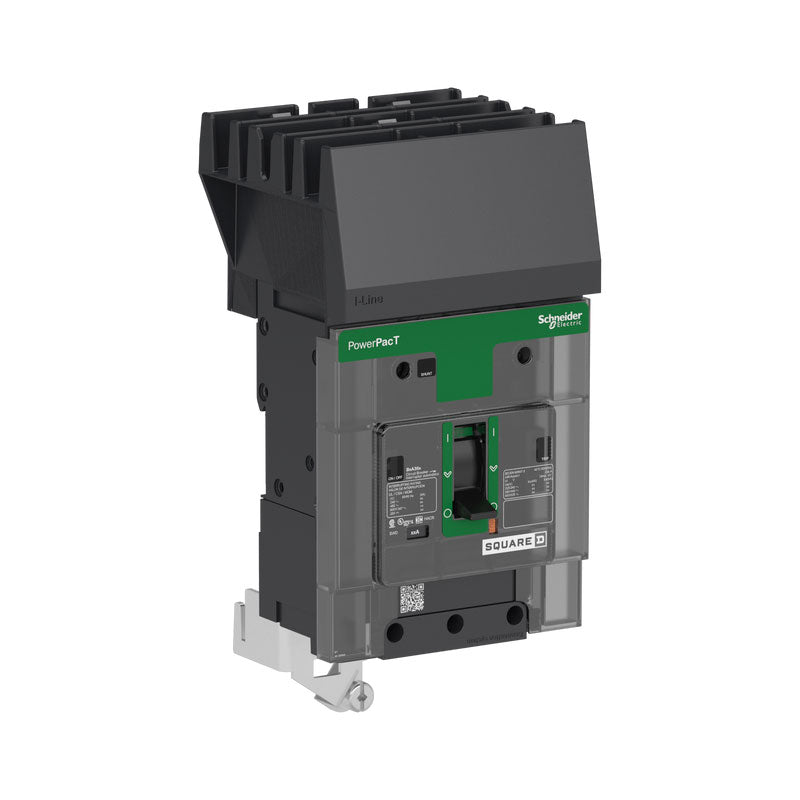

Schneider Electric BDA36025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 25A current rating and a 600V voltage rating, housed within a compact 137 mm x 81 mm x 89 mm (HxWxD) frame with a weight of 4.12 lb. This thermal-magnetic breaker complies with major international standards including UL 489 and IEC 60947-2, and is typically applied in industrial control panels and electrical distribution equipment.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with long-time and instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 25A

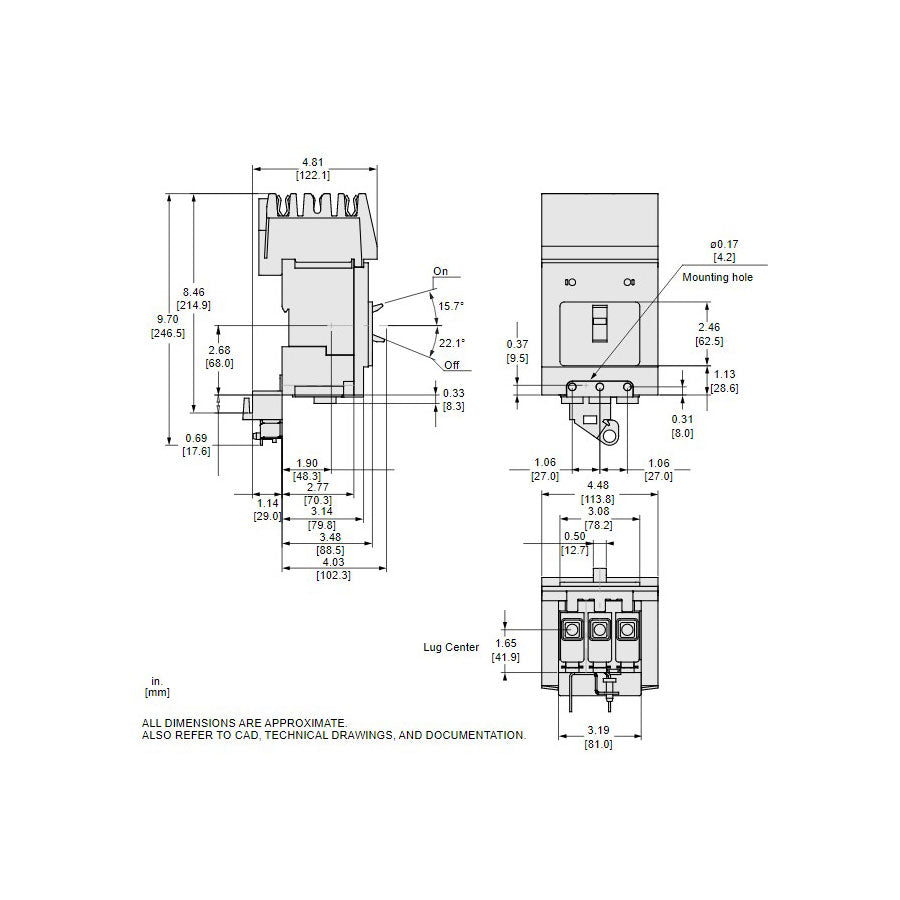

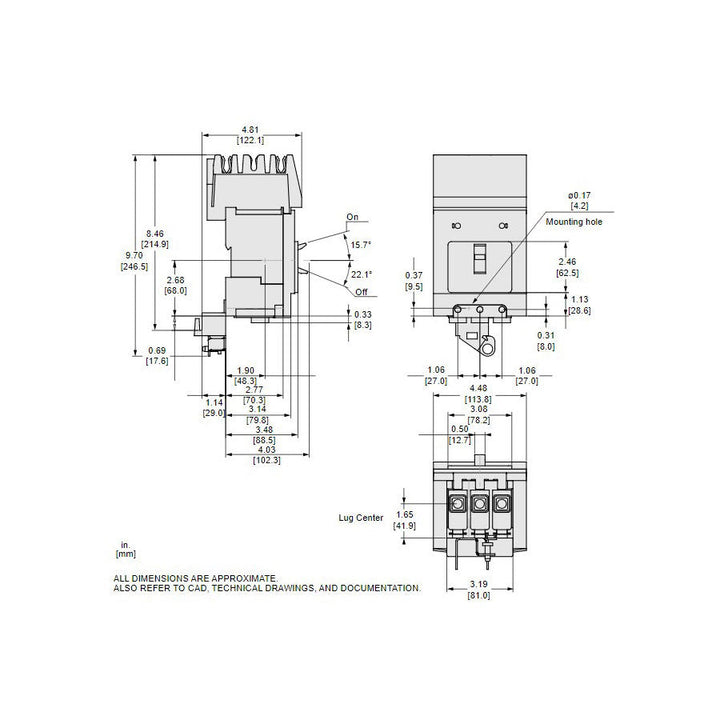

  • Dimensions: 137 mm (H) x 81 mm (W) x 89 mm (D)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266
  • Applications: Electrical distribution equipment, industrial control panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C
  • Shipping Dimensions: Not Specified
  • Phase: 3
  • Voltage: 600V
  • Amperage: 25A
  • AIC rating: 18kA at 480V
  • Connection: I-Line
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BD
  • Trip Type: Thermal Magnetic
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 2 AWG
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Wire Size: AWG 14 to AWG 2/0 for aluminium or copper
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Compatible Frames: Powerpact B/BD Frame
  • Installation Type: Fixed
  • Breaker Frame: Powerpact B/BD
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901036302
  • GTIN: 03606481152541
