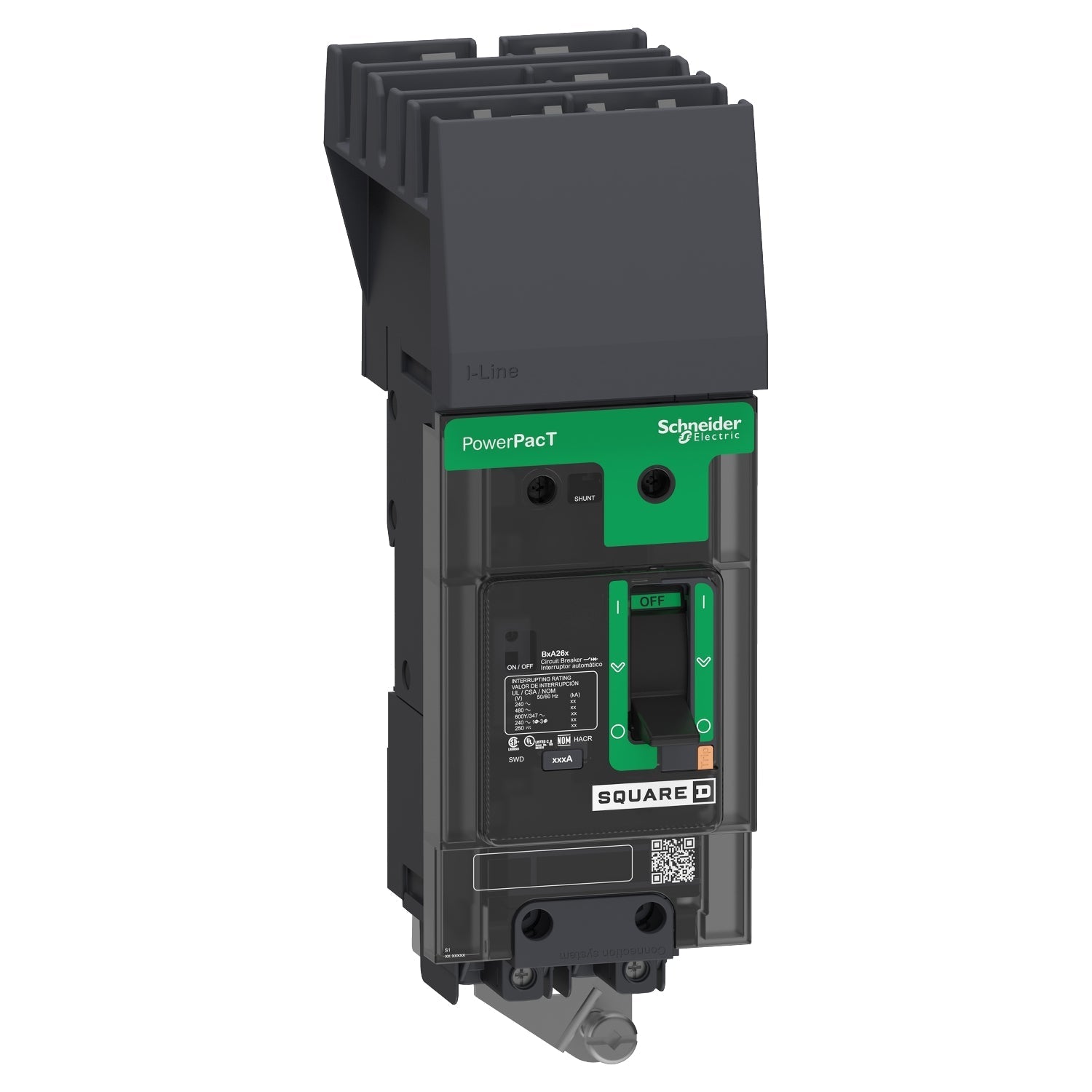

Square D BDA260601 - Molded Case Circuit Breaker 60A 600V 2-Pole
Square D BDA260601 - Molded Case Circuit Breaker 60A 600V 2-Pole

Square D BDA260601 - Molded Case Circuit Breaker 60A 600V 2-Pole

Square D
Price
Save $60.66
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Square D BDA260601 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.091 lb. This thermal-magnetic breaker complies with UL 489, IEC 60947-2, and other major international standards, making it suitable for installation in electrical distribution equipment and industrial control panels.

Key Features & Specifications
  • Type: Standard, Thermal Magnetic, Molded Case Circuit Breaker
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Frame Size: 125A/BD
  • Poles: 2
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
  • Wire Size: AWG 14 to AWG 2/0 (Aluminium/Copper)
  • Phase: 1
  • Phase Connection: AB
  • Functions: Long Time and Instantaneous
  • Protection: Thermal Magnetic
  • Standards: NEMA AB1, UL 489, IEC 60947-2, CSA C22.2 No. 5, GB 14048.2
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Weight: 3.091 lb
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901014713
  • GTIN: 03606481152206
