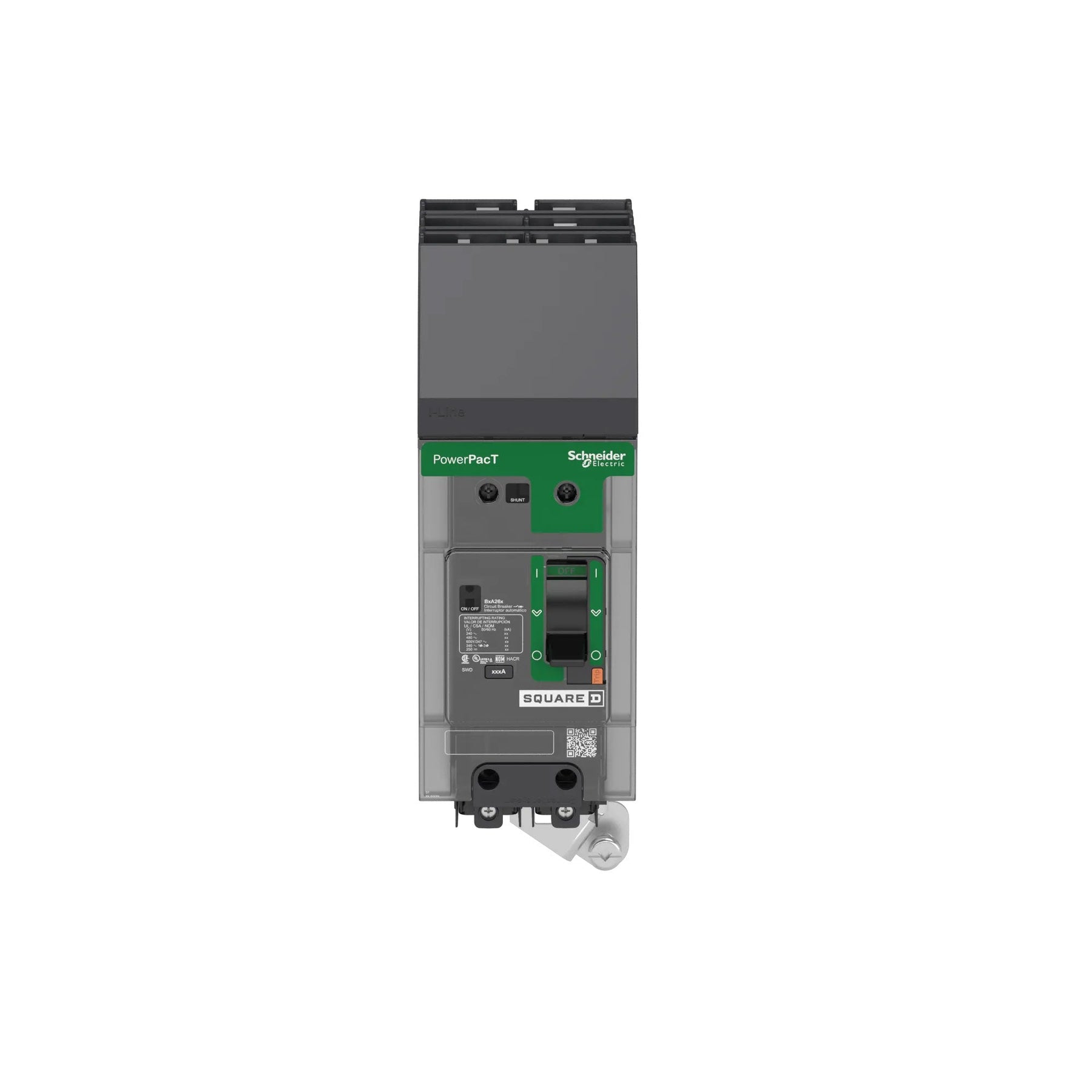

Square D BDA260402 - Molded Case Circuit Breaker 40A 600V 2-Pole
Square D BDA260402 - Molded Case Circuit Breaker 40A 600V 2-Pole

Square D BDA260402 - Molded Case Circuit Breaker 40A 600V 2-Pole

Square D
Price
Save $281.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D BDA260402 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact D-frame construction measuring 137 mm H x 54 mm W x 89 mm D and weighing 2 lb. The breaker is engineered to comply with UL 489, IEC 60947-2, CSA C22.2 No 5, and other major international standards, ensuring robust performance. Its thermal-magnetic protection with long-time and instantaneous trip functions makes it suitable for safeguarding feeders, motors, and branch circuits in commercial and industrial panels.

Key Features & Specifications
  • Type: BDA Series, Molded Case, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Standards: UL 489, EN/IEC 60947-2, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1
  • Applications: Industrial Feeder, Motor, and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line
  • Terminal Connection: I-Line, Lug
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: D
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: 14 AWG to 2/0 AWG (Copper/Aluminium)
  • MCM Size: Min. 14 AWG, Max. 2/0 AWG (Cu/Al)
  • Certification: UL, IEC, CCC, EAC, CSA, NOM
  • Phase Connection: AC
  • Family: Powerpact
  • Country of Origin: United States
  • Weight: 2 lb


Product Identification
  • UPC: 078590194197
  • GTIN: 00785901941972
