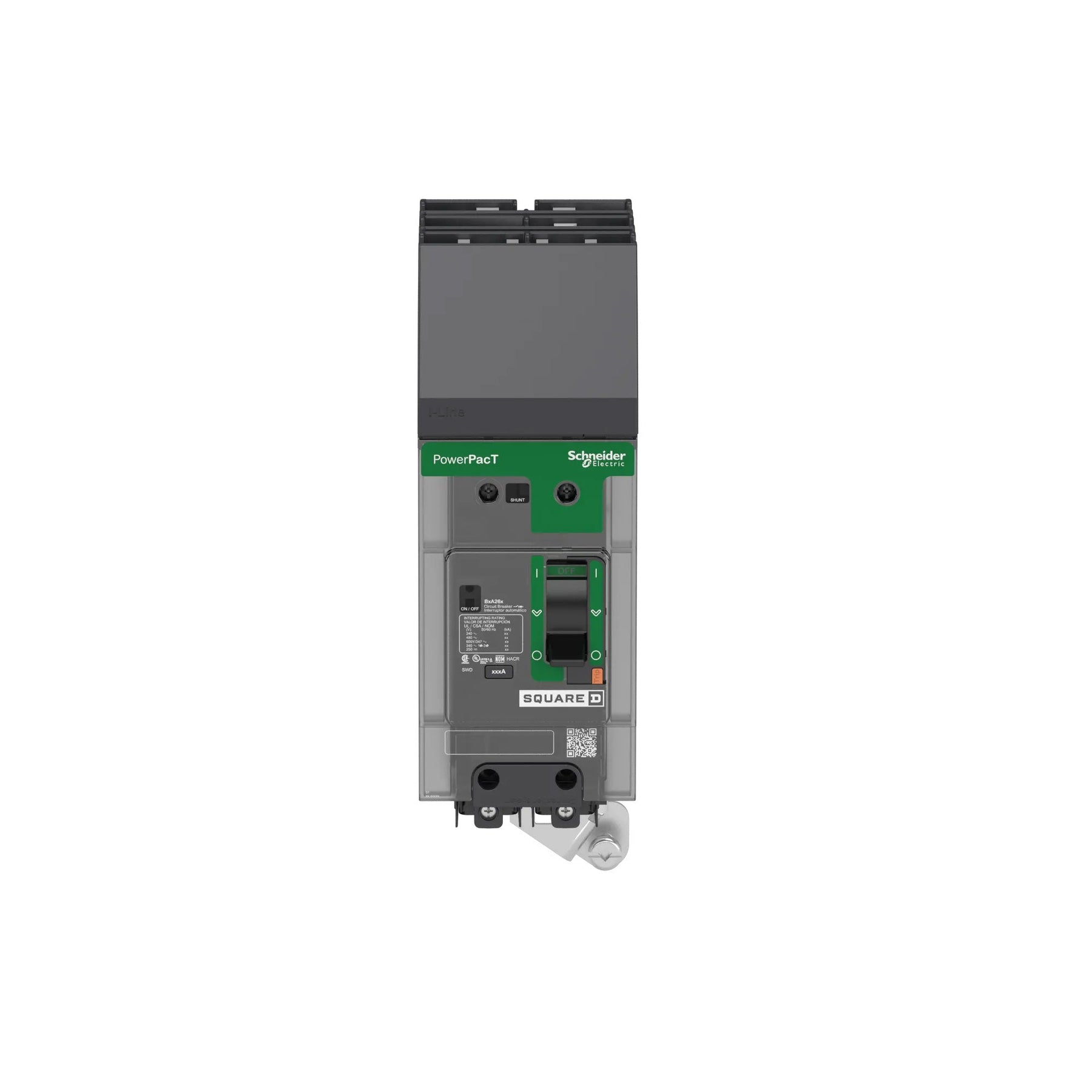

Square D BDA260151 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D BDA260151 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D BDA260151 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $110.11
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D BDA260151 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 15A current rating and a 600V voltage rating, housed within a compact 125A/BD frame measuring 137 mm H x 54 mm W x 89 mm D and weighing 3.17 lb. This thermal magnetic breaker is constructed for compliance with UL 489, IEC 60947-2, CSA C22.2 No 5, and other international standards, ensuring suitability for installation in electrical distribution equipment and industrial control panels. Its I-Line connection and dual-pole configuration with an 18kA interrupting capacity at 480V make it a robust component for protecting branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: Standard, Thermal Magnetic Molded Case Circuit Breaker with Long Time and Instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 137 mm H x 54 mm W x 89 mm D (5.4 in x 2.1 in x 3.5 in)
  • Standards: UL 489, IEC/EN 60947-2, CSA C22.2 No 5, NMX J-266, GB 14048.2, NEMA AB1
  • Applications: Electrical Distribution Equipment, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time, Instantaneous
  • Frame Size: 125A/BD
  • Panel Type: Electrical Distribution Equipment, Industrial Control Panels
  • Breaker Type: Standard
  • MCM Size: Wire Range 14 AWG to 2 AWG
  • Terminal Connection: Al Mechanical Lug (OFF End), I-Line (ON End)
  • Wire Size: 14 AWG to 2/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, IEC, CCC, EAC, NOM
  • Phase Connection: AB
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 3.17 lb


Product Identification
  • UPC: 078590109393
  • GTIN: 03606481151988
