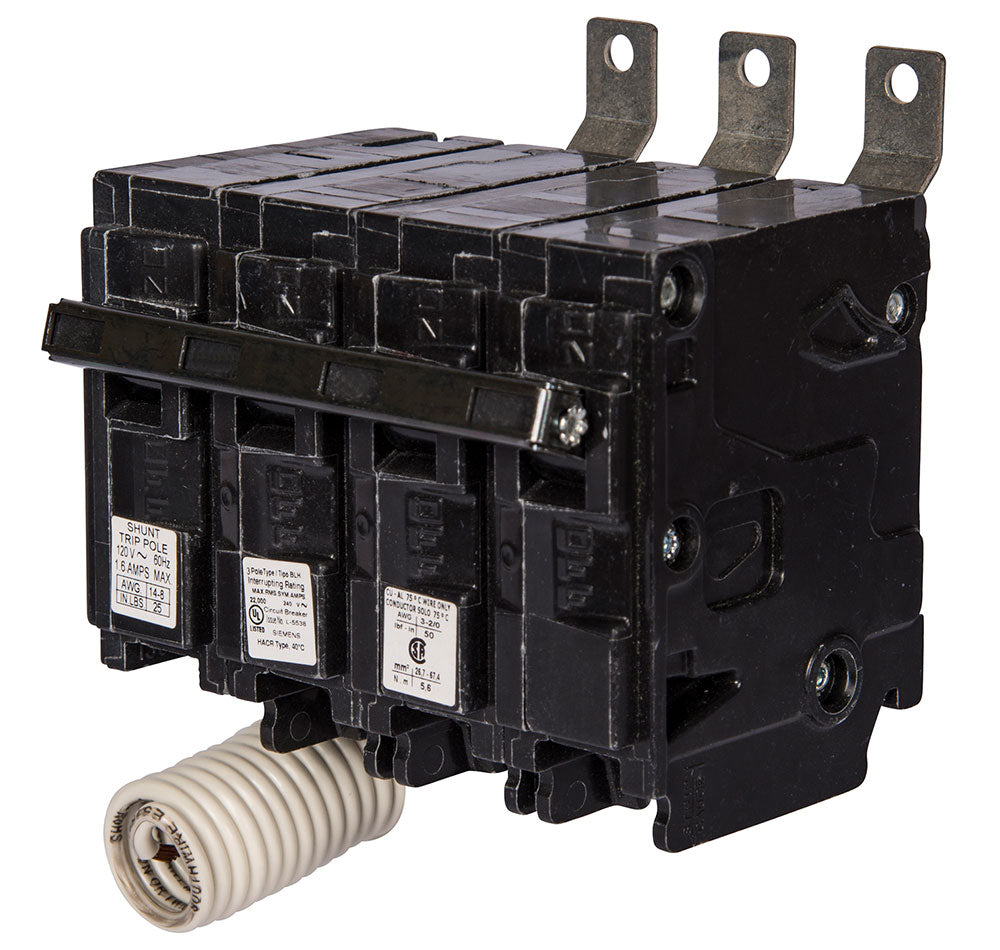

Siemens B380HH00S01 - 3-Pole Shunt Trip Breaker (80A, 240V)
Siemens B380HH00S01 - 3-Pole Shunt Trip Breaker (80A, 240V)

Siemens B380HH00S01 - 3-Pole Shunt Trip Breaker (80A, 240V)

Siemens
Price
Save $1,731.69
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens B380HH00S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features an 80A current rating and a 240V voltage rating, housed within a compact 125A/HBL frame measuring 150 x 100 x 100 mm (5.906 x 3.937 x 3.937 inches) and weighing 1.565 lb. This thermal-magnetic shunt trip breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: HBL Series Molded Case Circuit Breaker with Shunt Trip (120V) and Bolt-on Connection
  • Voltage Rating: 240V AC
  • Current Rating: 80A
  • Dimensions: 150 x 100 x 100 mm (5.906 x 3.937 x 3.937 inches)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Three-phase power distribution in Siemens P1 Panelboards and compatible enclosures
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Coil Voltage Maximum: 120V (Shunt Trip)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 150 x 100 x 100 mm (5.906 x 3.937 x 3.937 inches)
  • Phase: 3
  • Voltage: 240V
  • Amperage: 80A
  • AIC rating: 65kA @ 240V
  • Connection: Bolt-on
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/HBL
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Shunt Trip
  • Control Voltage Minimum: 120V (Shunt Trip)
  • Control Voltage Maximum: 120V (Shunt Trip)
  • MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Al) / 6 AWG (Cu)
  • Terminal Connection: Lug
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Circuit Breaker Mounting Style: Fixed
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: CSA, HACR, NOM, UL
  • Installation Type: Fixed
  • Breaker Frame: 125A/HBL
  • Current Rating: 80A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 783643269422
  • GTIN: 00783643269422
