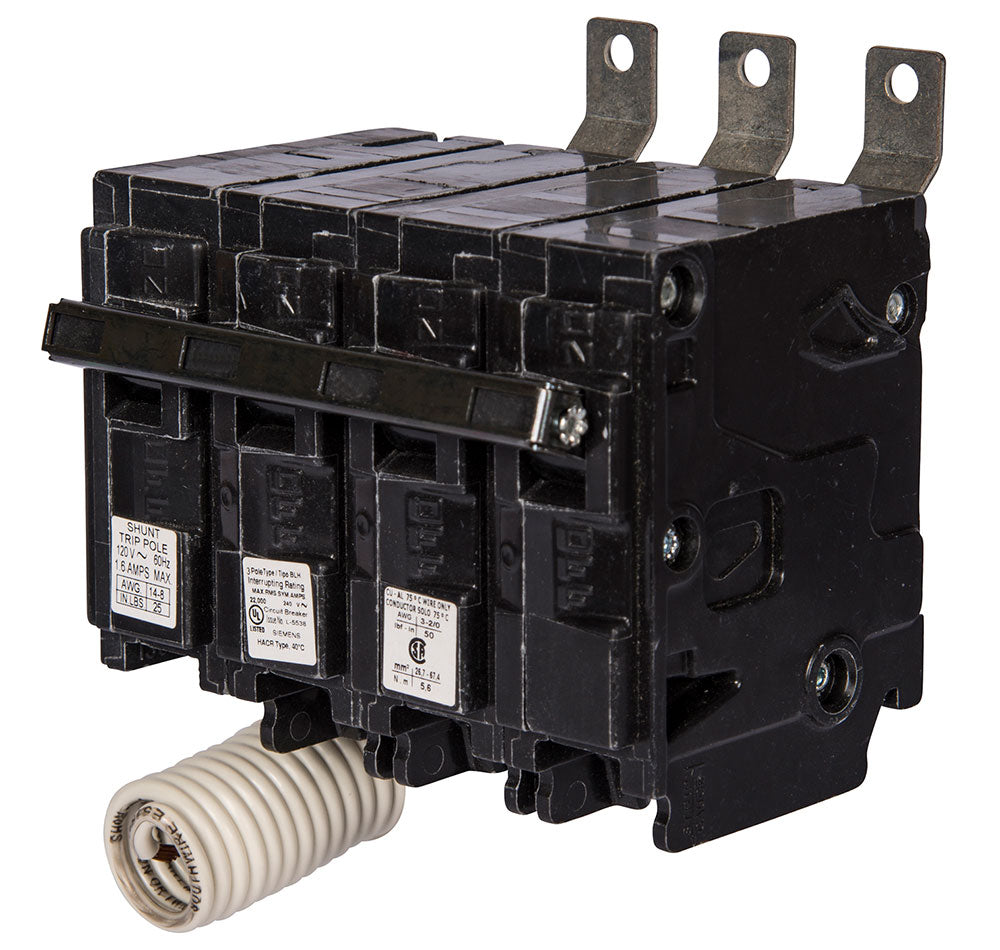

Siemens B38000S01 - 3-Pole Molded Case Breaker 80A 240V
Siemens B38000S01 - 3-Pole Molded Case Breaker 80A 240V

Siemens B38000S01 - 3-Pole Molded Case Breaker 80A 240V

Siemens
Price
Save $1,134.85
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B38000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a thermal-magnetic trip unit with long-time and instantaneous functions, rated for 80A at 240V AC with a 10kA interrupting capacity. The compact, bolt-on unit measures 2.563" x 4.00" x 3.122" and weighs 1.257 lb, constructed for durability across an operating temperature range of -25°C to 70°C. It is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for integration into Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 80A
  • Dimensions: 2.563" H x 4.00" W x 3.122" D
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Three-phase power distribution and protection
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • AIC Rating: 10kA @ 240V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Shunt Trip
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 1.257 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643000964
  • GTIN: 00783643000964
