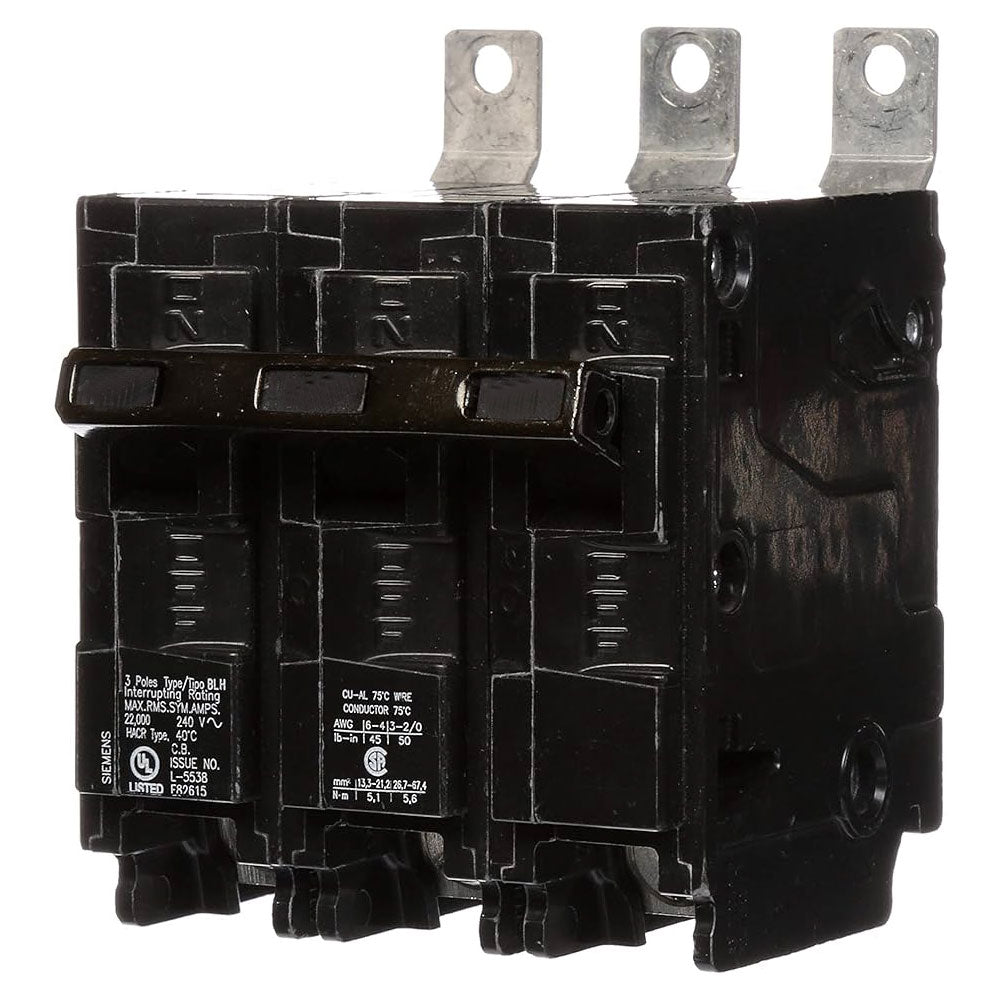

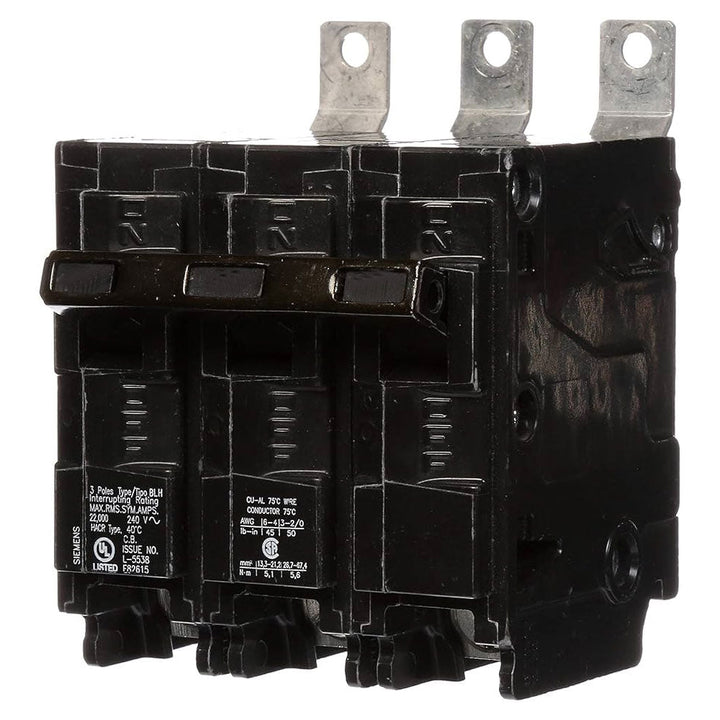

Siemens B360H - 3-Pole Molded Case Breaker 60A 240V
Siemens B360H - 3-Pole Molded Case Breaker 60A 240V

Siemens B360H - 3-Pole Molded Case Breaker 60A 240V

Siemens
Price
Save $983.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B360H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 60A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563" x 3.00" x 3.122" and weighing 0.948 lb. The breaker is constructed with thermal-magnetic trip technology for both long-time and instantaneous protection, is CSA, UL, HACR, and NOM certified, and is typically applied in Siemens P1 panelboards for motor and feeder circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard, BLH Type
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Frame Size: 125A/BLH
  • Poles: 3
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" H x 3.00" W x 3.122" D
  • Weight: 0.948 lb
  • MCM Size: Min. 8 AWG, Max. 2 AWG (Al) / 4 AWG (Cu)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Protection: Thermal Magnetic
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264038
  • GTIN: 00783643264038
