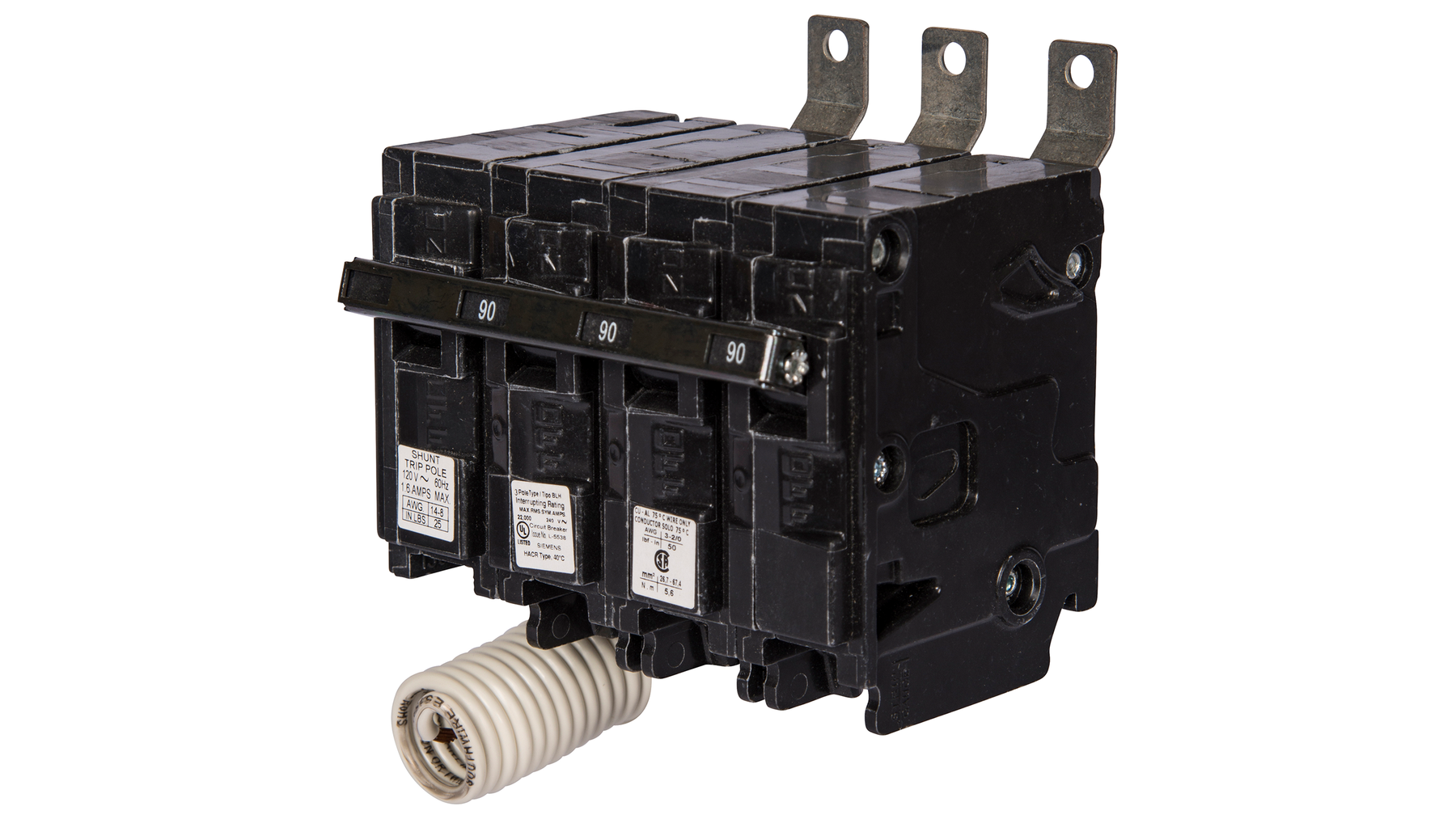

Siemens B3100HH00S01 - Shunt Trip Circuit Breaker 100A 3P 240V
Siemens B3100HH00S01 - Shunt Trip Circuit Breaker 100A 3P 240V

Siemens B3100HH00S01 - Shunt Trip Circuit Breaker 100A 3P 240V

Siemens
Price
Save $1,407.14
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B3100HH00S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact, bolt-on configuration measuring 2.563" x 4.00" x 3.122" and weighing 1.257 lb. This thermal-magnetic shunt trip breaker is constructed for Siemens P1 panelboards and offers an interrupting capacity of 65kA at 240V, with compliance to UL, CSA, HACR, and NOM standards for use in commercial and industrial power distribution applications.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker with Shunt Trip (120V)
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Frame Size: 125A/BL
  • Poles: 3
  • AIC Rating: 65kA @ 240V
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-on with Lug Terminals
  • Panel Type: Siemens P1 Panelboards
  • Phase: 3
  • MCM Size: Min. 2 AWG (Al) / 4 AWG (Cu), Max. 1/0 AWG
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" x 4.00" x 3.122"
  • Weight: 1.257 lb
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643269446
  • GTIN: 00783643269446
