Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole
Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole

Siemens B230 - Molded Case Circuit Breaker, 30A 2-Pole

Siemens
Price
Save $193.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

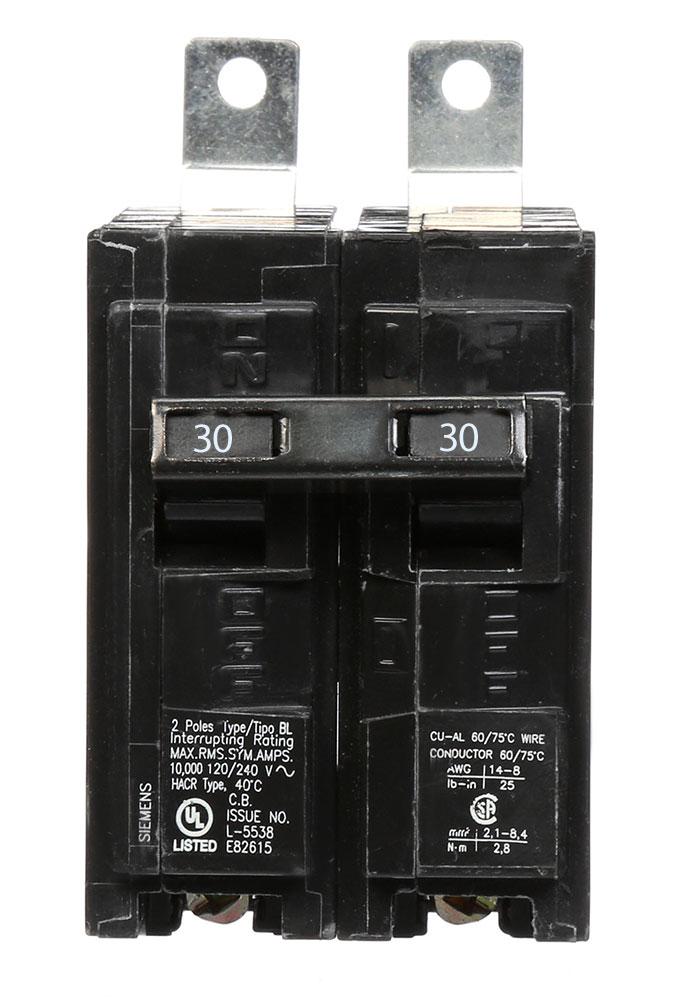

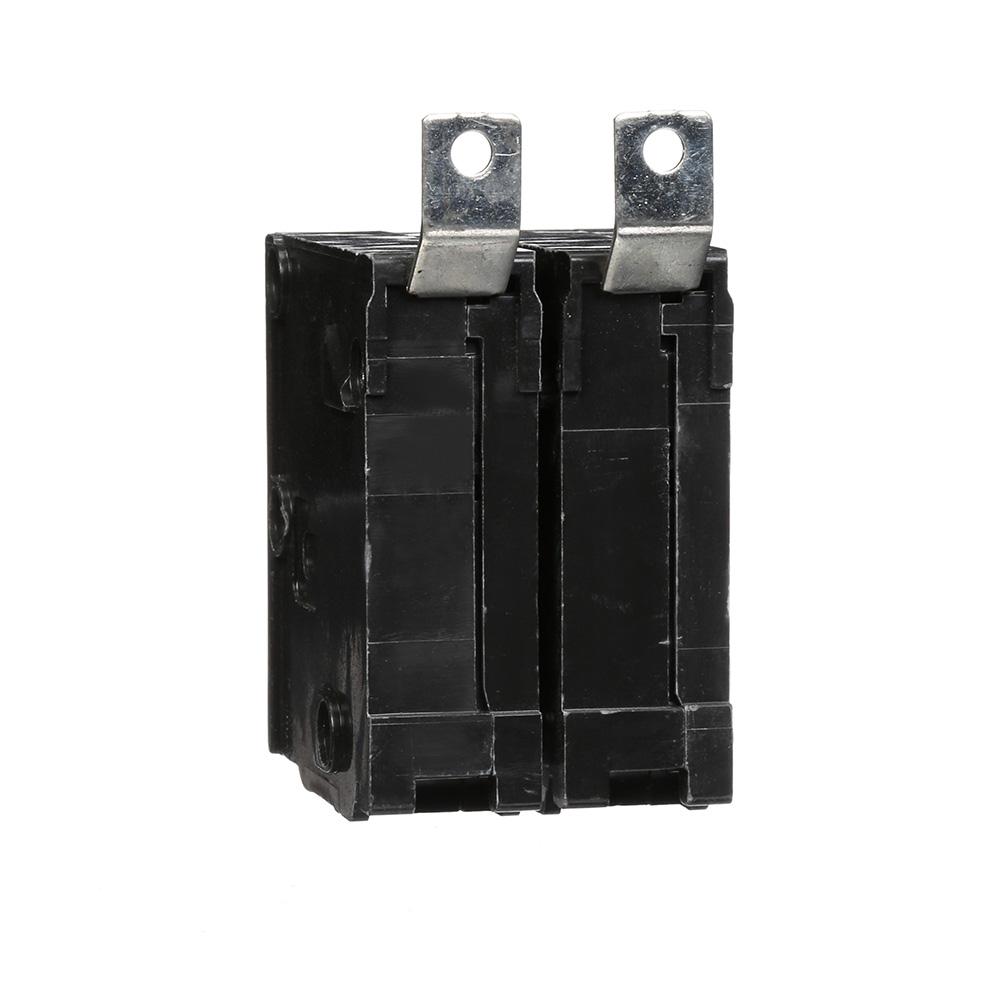

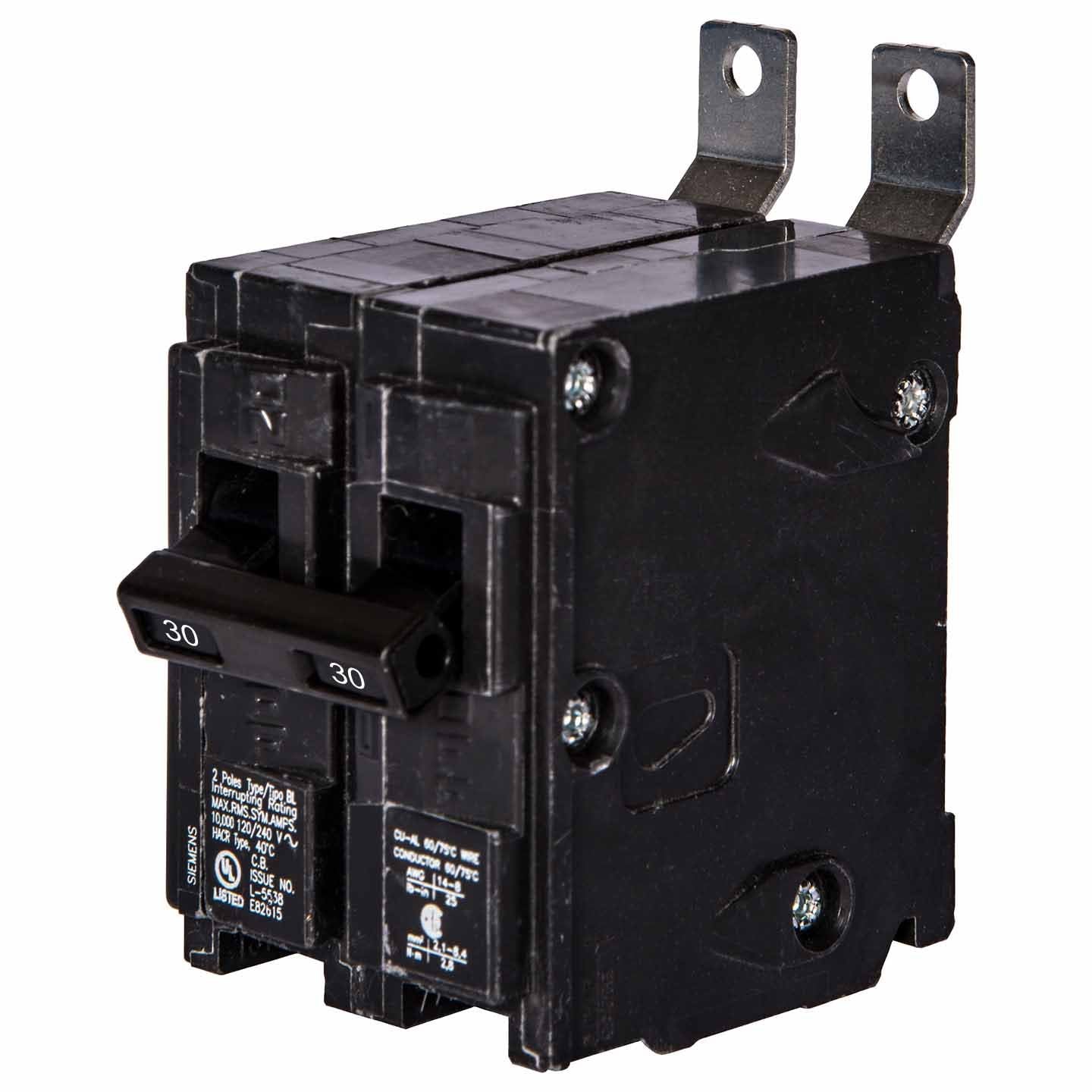

Siemens B230 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a voltage rating of 120/240V AC, housed within a compact, bolt-on unit measuring 12.598 x 4.331 x 3.543 inches and weighing 0.639 lb. Constructed with a thermal-magnetic trip mechanism providing long-time and instantaneous (LI) protection, it is built to operate in temperatures from -25°C to 70°C. The breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards, and is specifically engineered for use in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection, Standard Breaker
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Frame Size: 125A/BL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 12.598 x 4.331 x 3.543 inch
  • Weight: 0.639 lb
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263550
  • GTIN: 00783643263550
