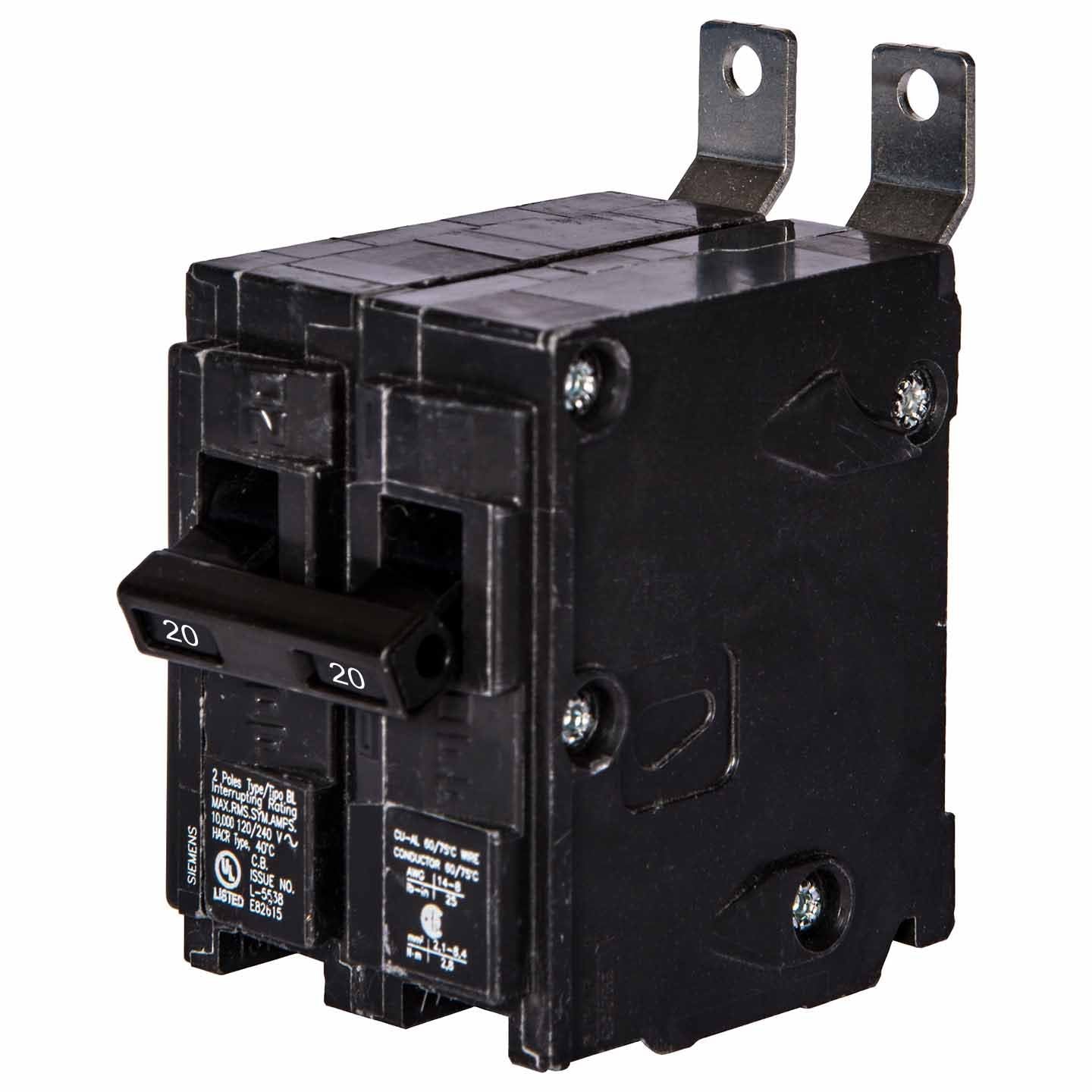

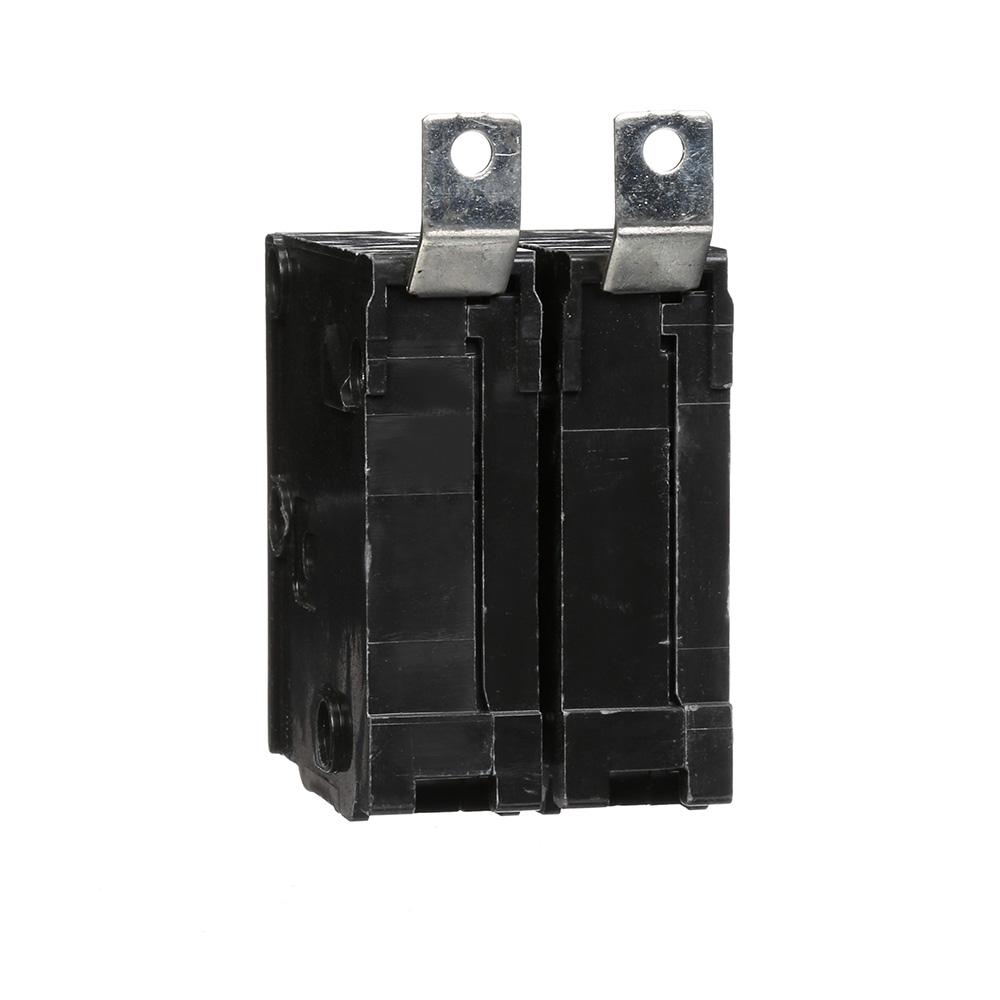

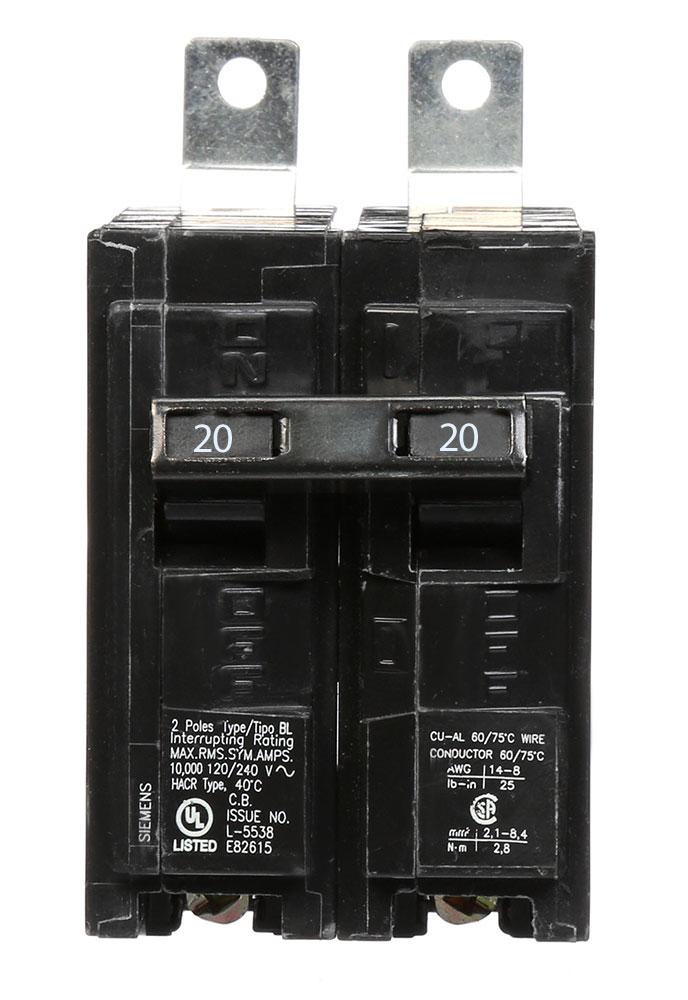

Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole
Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole

Siemens B220 - Molded Case Circuit Breaker 20A 2-Pole

Siemens
Price
Save $194.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B220 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 240V voltage rating, housed within a compact 125A/BL frame with dimensions of 12.598 x 4.331 x 3.543 inches and a weight of 0.639 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is constructed for bolt-on connection with lug terminals, and operates within a temperature range of -25°C to 70°C. It complies with key industry standards including UL listing, CSA certification, HACR rating, and NOM certification, ensuring suitability for use in Siemens P1 panelboards and similar industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 12.598 x 4.331 x 3.543 inch
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Industrial and Commercial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25°C to 70°C
  • Phase: 1
  • AIC rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.639 lb


Product Identification
  • UPC: 783643263536
  • GTIN: 00783643263536
