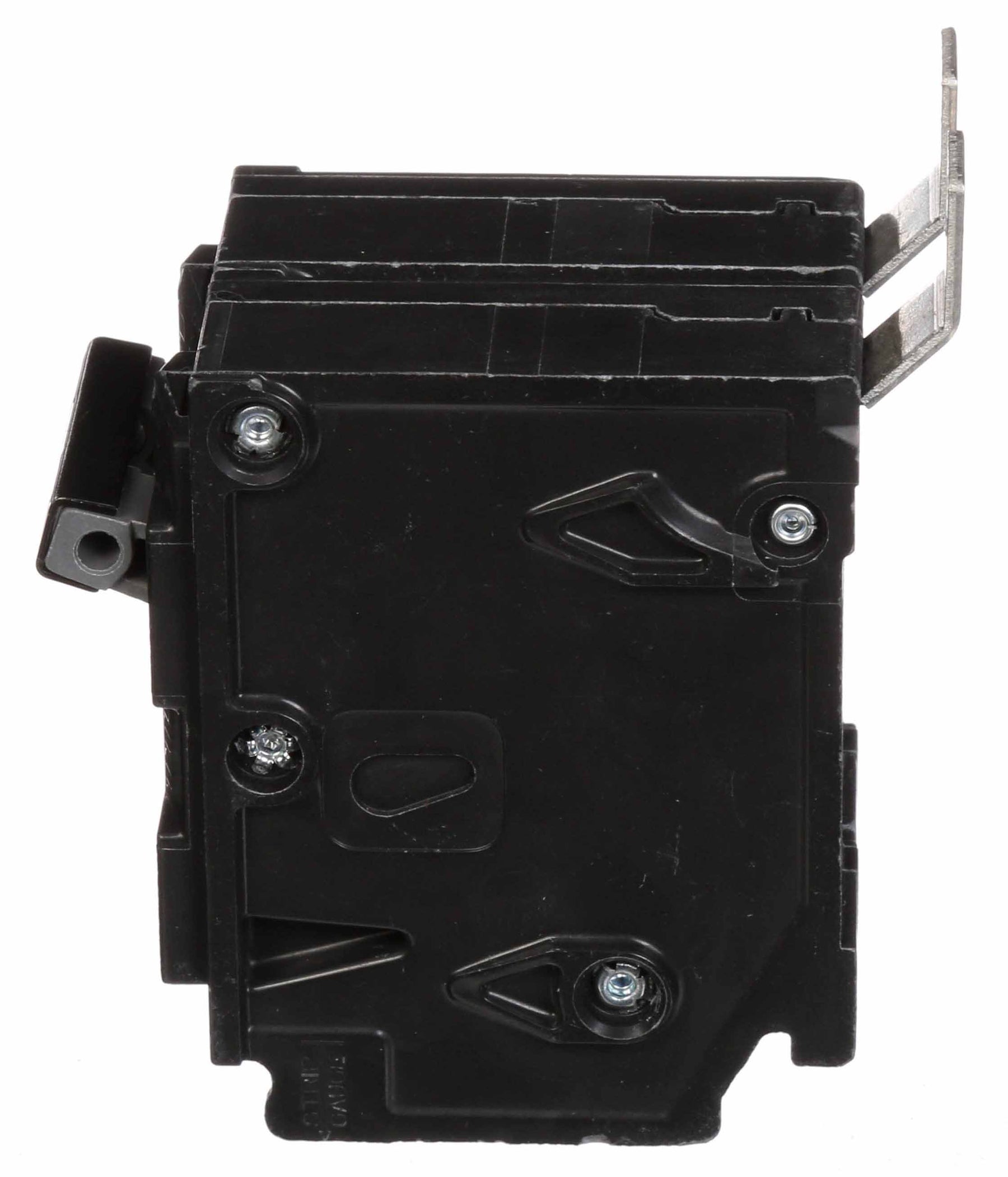

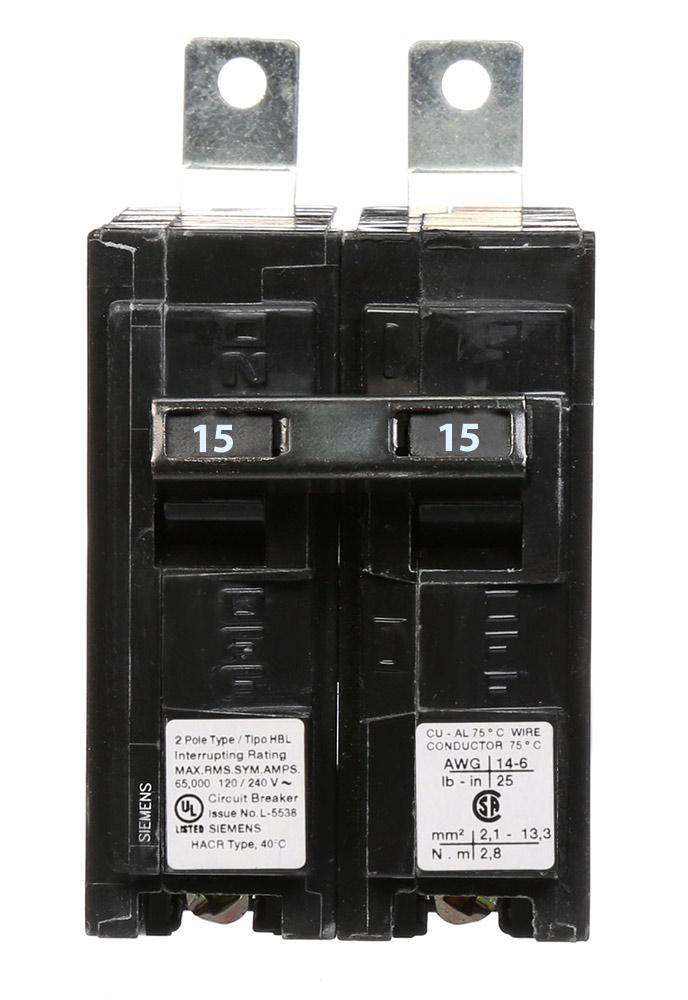

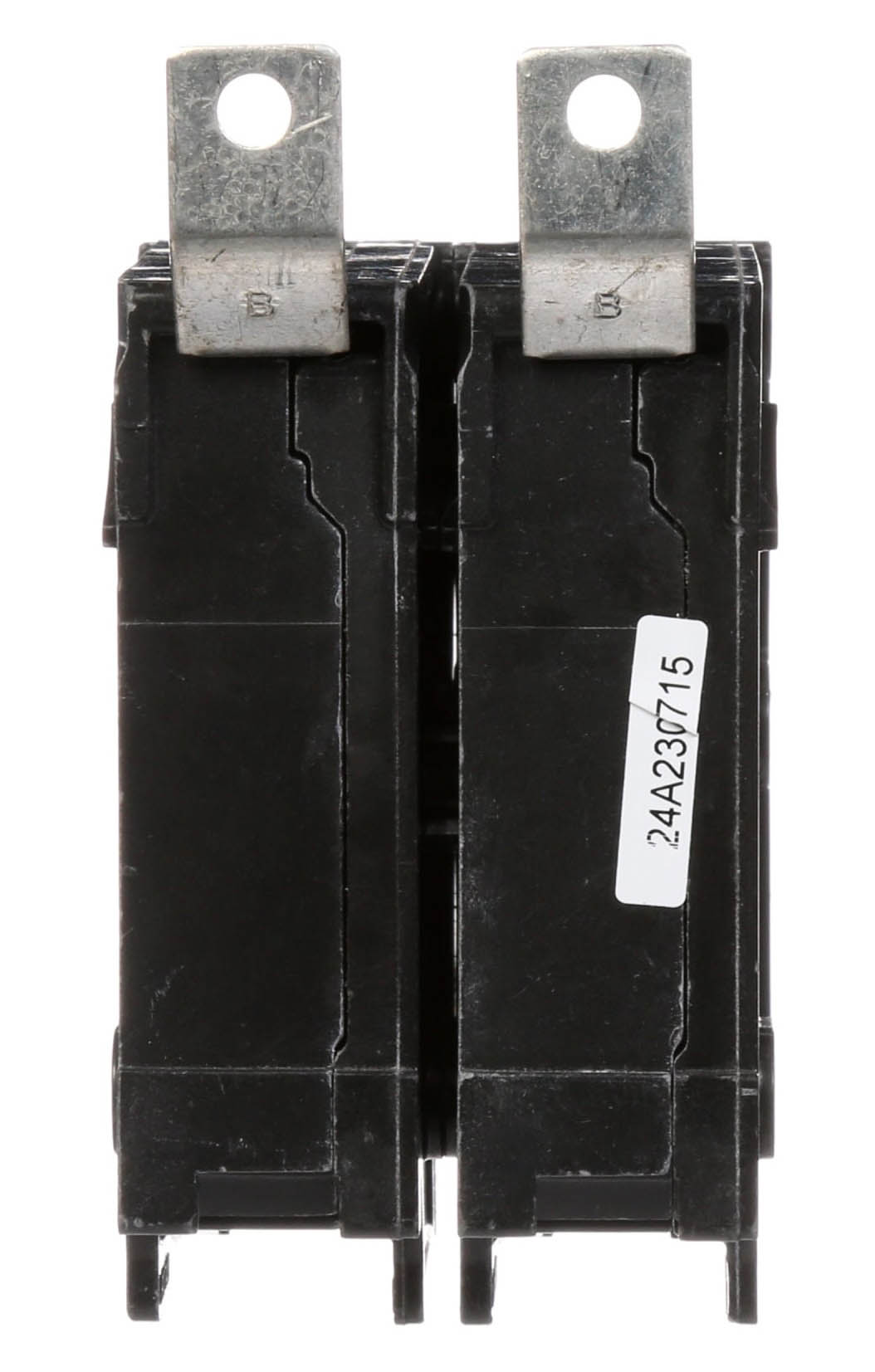

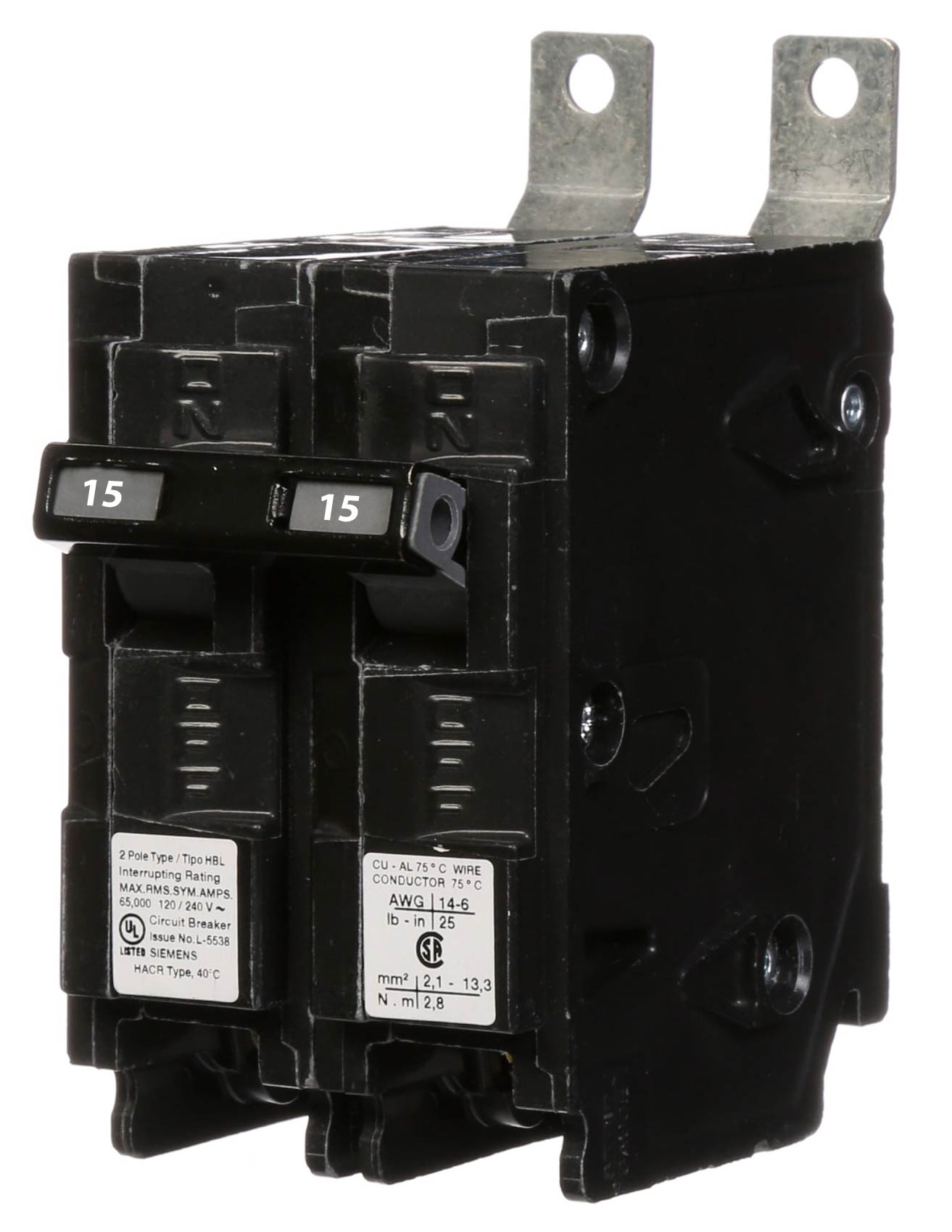

Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole
Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole

Siemens B215HH - Molded Case Circuit Breaker, 15A 2-Pole

Siemens
Price
Save $617.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B215HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120/240V AC voltage rating, housed within a compact, bolt-on unit measuring 3.937 x 1.969 x 3.937 inches and weighing 0.661 lb. This thermal-magnetic breaker, part of the BL Series, is constructed with lug terminals and is certified to UL, CSA, HACR, and NOM standards for safety and interoperability. It is engineered for use in Siemens P1 panelboards, offering a 65kA interrupting capacity at 240V to safeguard residential and light commercial branch circuits.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard
  • Voltage Rating: 120/240V AC
  • Current Rating: 15A
  • Frame Size: 125A/HBL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Al) / 6 AWG (Cu)
  • Dimensions: 3.937 x 1.969 x 3.937 inch (100 x 50 x 100 mm)
  • Weight: 0.661 lb
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264137
  • GTIN: 00783643264137
