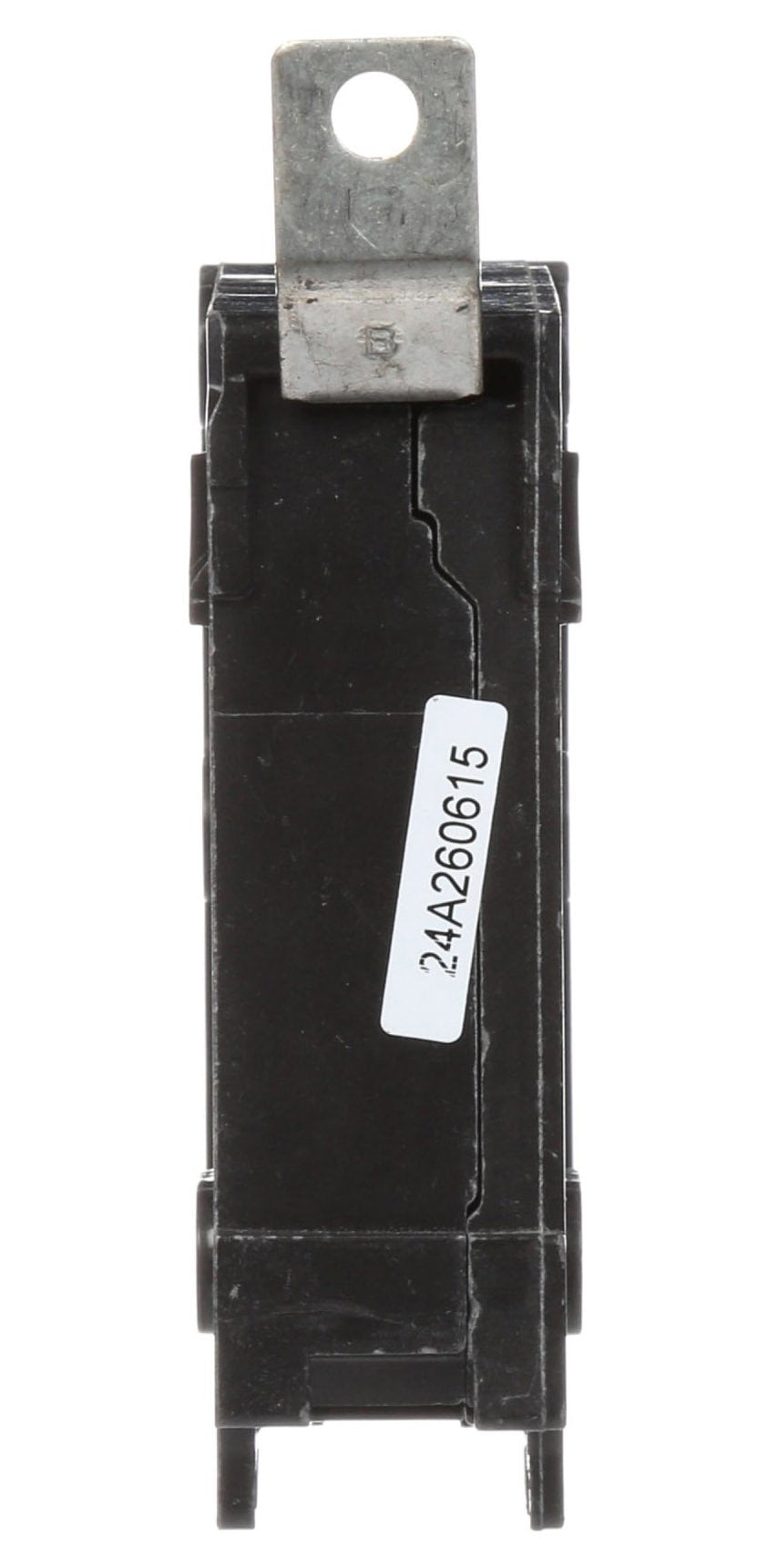

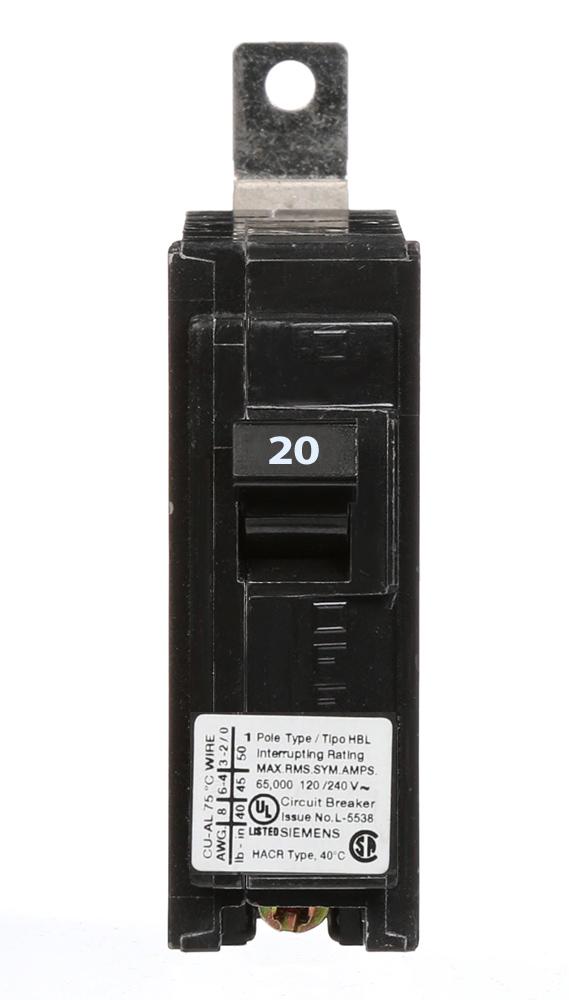

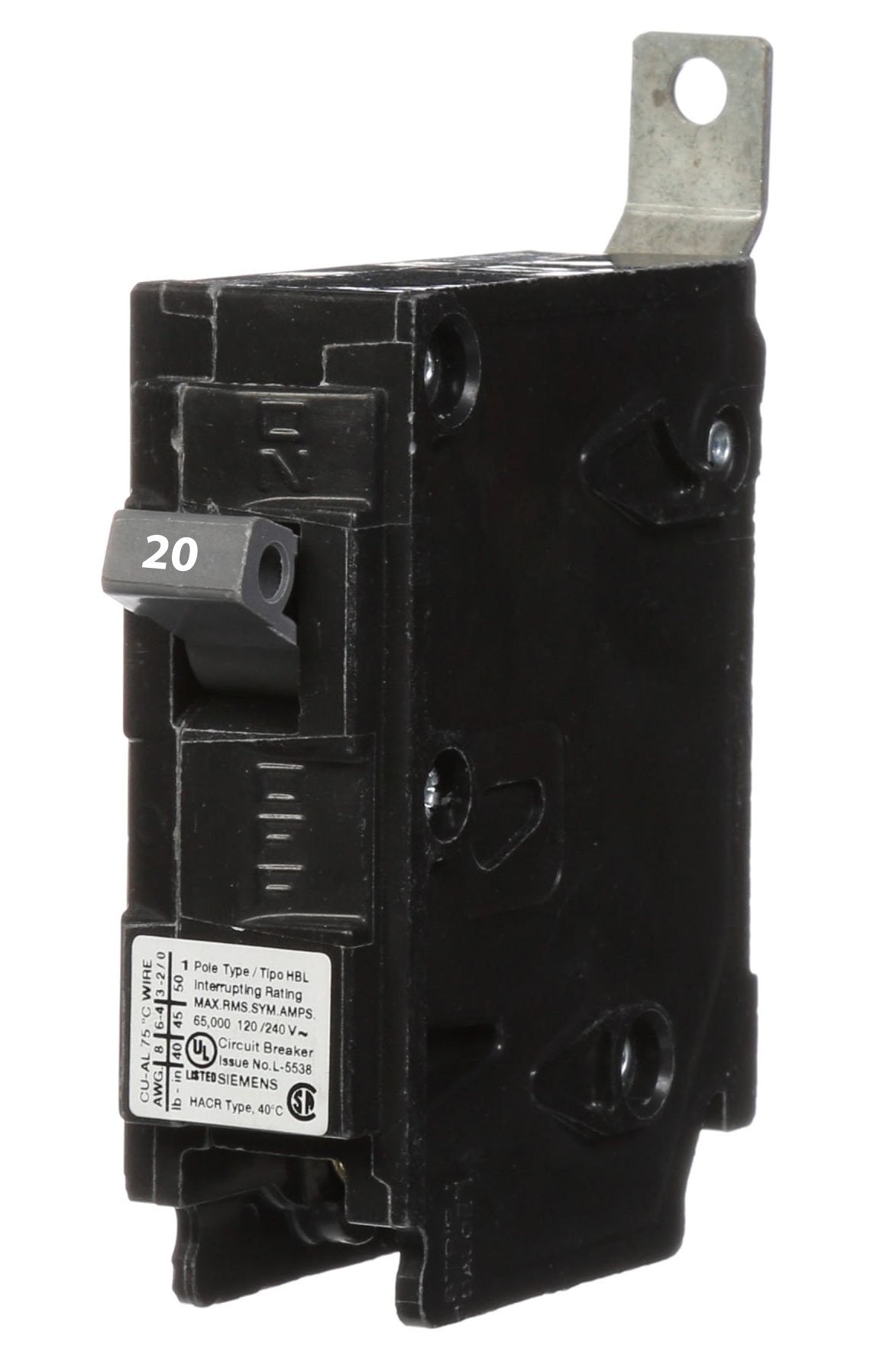

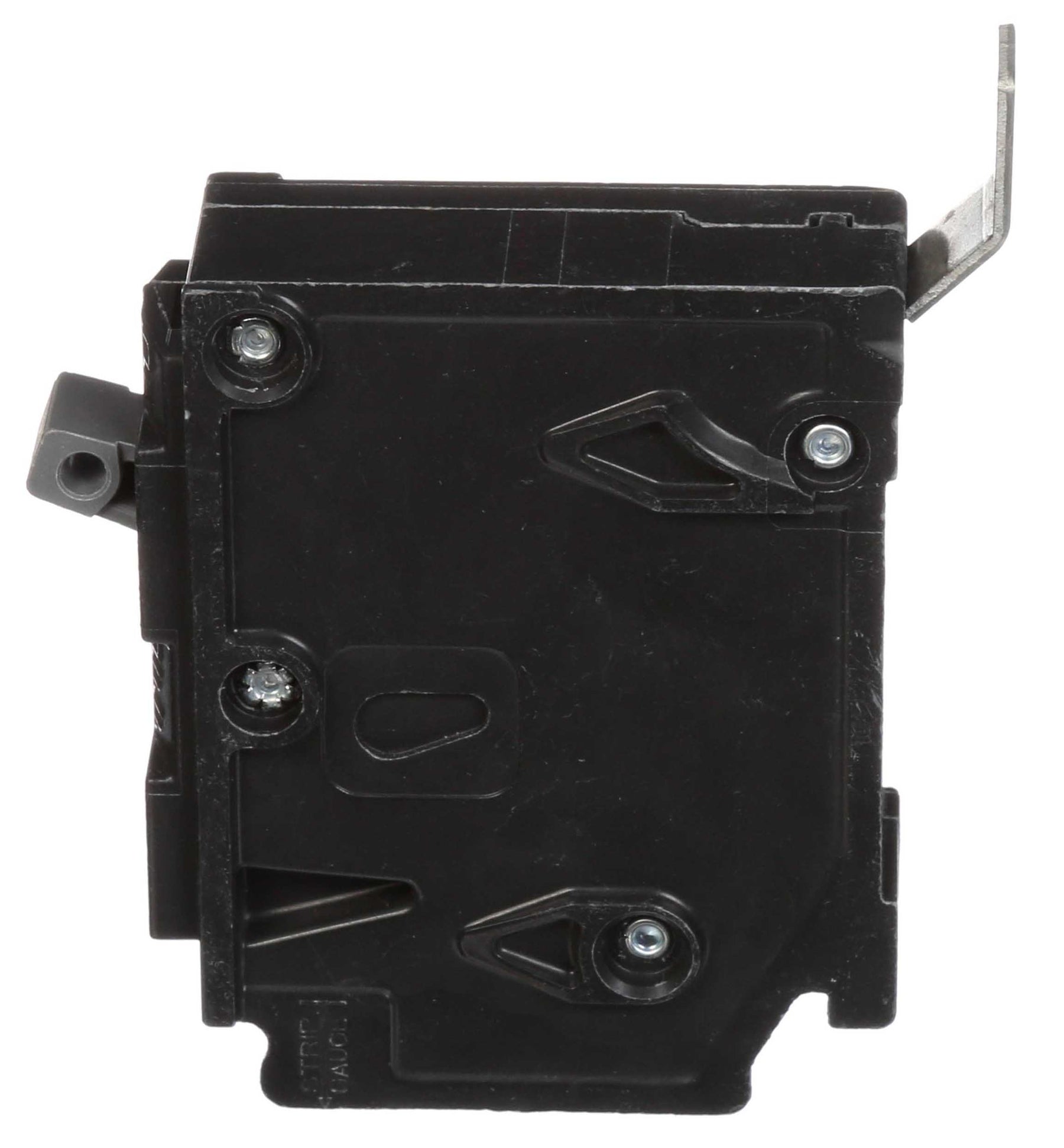

Siemens B120HH - 1-Pole 20A Circuit Breaker (65kA AIC)

Price
Regular price $44.24
Regular price $303.00 Sale price $44.24
Save $258.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B120HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in 120VAC single-phase electrical systems. It features a 20A current rating and a 65kA interrupting capacity at 240V, housed within a compact, bolt-on HBL-type unit measuring 2.563" x 1.00" x 3.122" and weighing 0.309 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection and is constructed for compatibility with Siemens P1 panelboards, featuring lug terminals that accept 12-10 AWG aluminum or 14-10 AWG copper wire. It is certified to UL, CSA, HACR, and NOM standards, ensuring compliance for use in commercial and light industrial applications requiring dependable circuit protection.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Frame Size: 125A/BL
  • Poles: 1
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Connection: Bolt-on, Lug Terminal
  • Wire Size: 12-10 AWG (Aluminum), 14-10 AWG (Copper)
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Protection: Thermal Magnetic
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Dimensions: 2.563 x 1.00 x 3.122 inch
  • Weight: 0.309 lb
  • Country of Origin: Mexico
  • Family: BL Series


Product Identification
  • UPC: 783643264090
  • GTIN: 00783643264090
