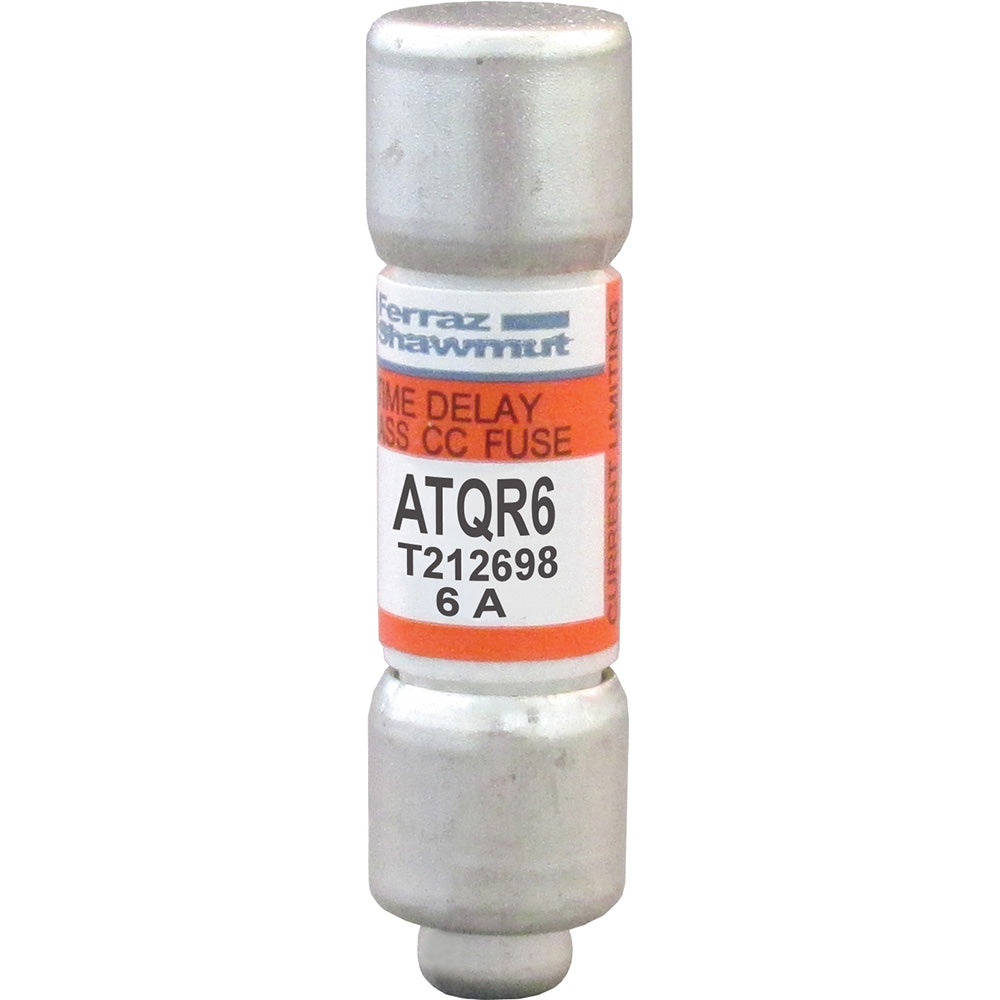

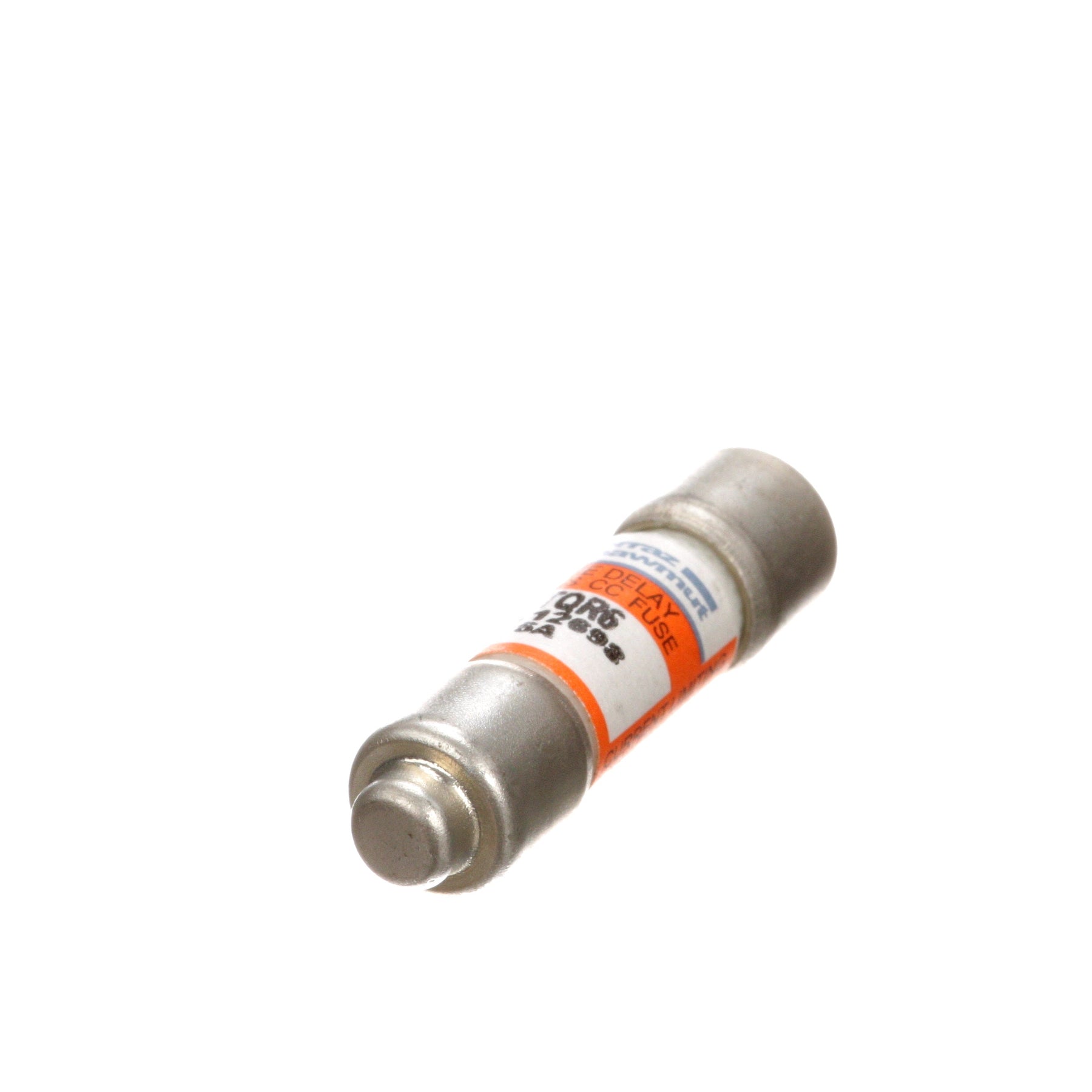

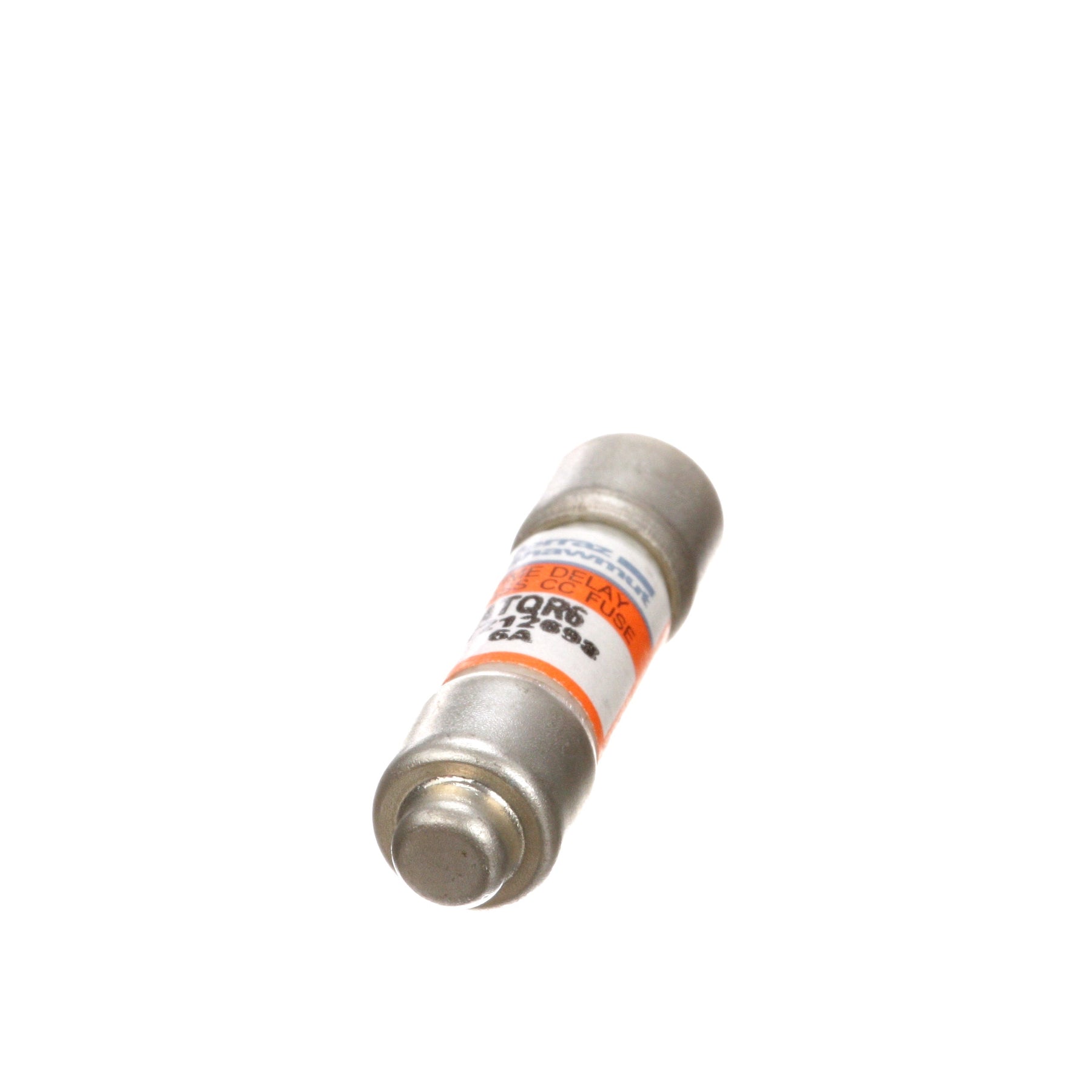

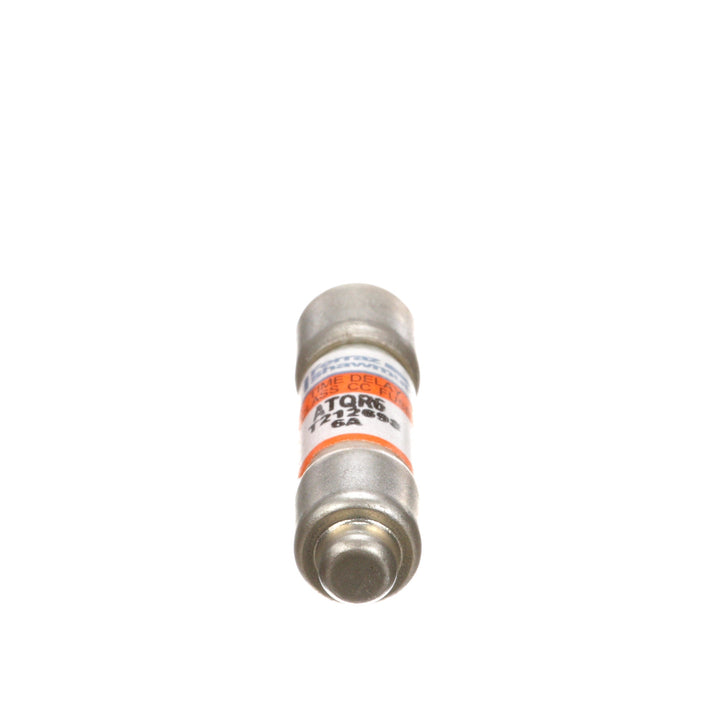

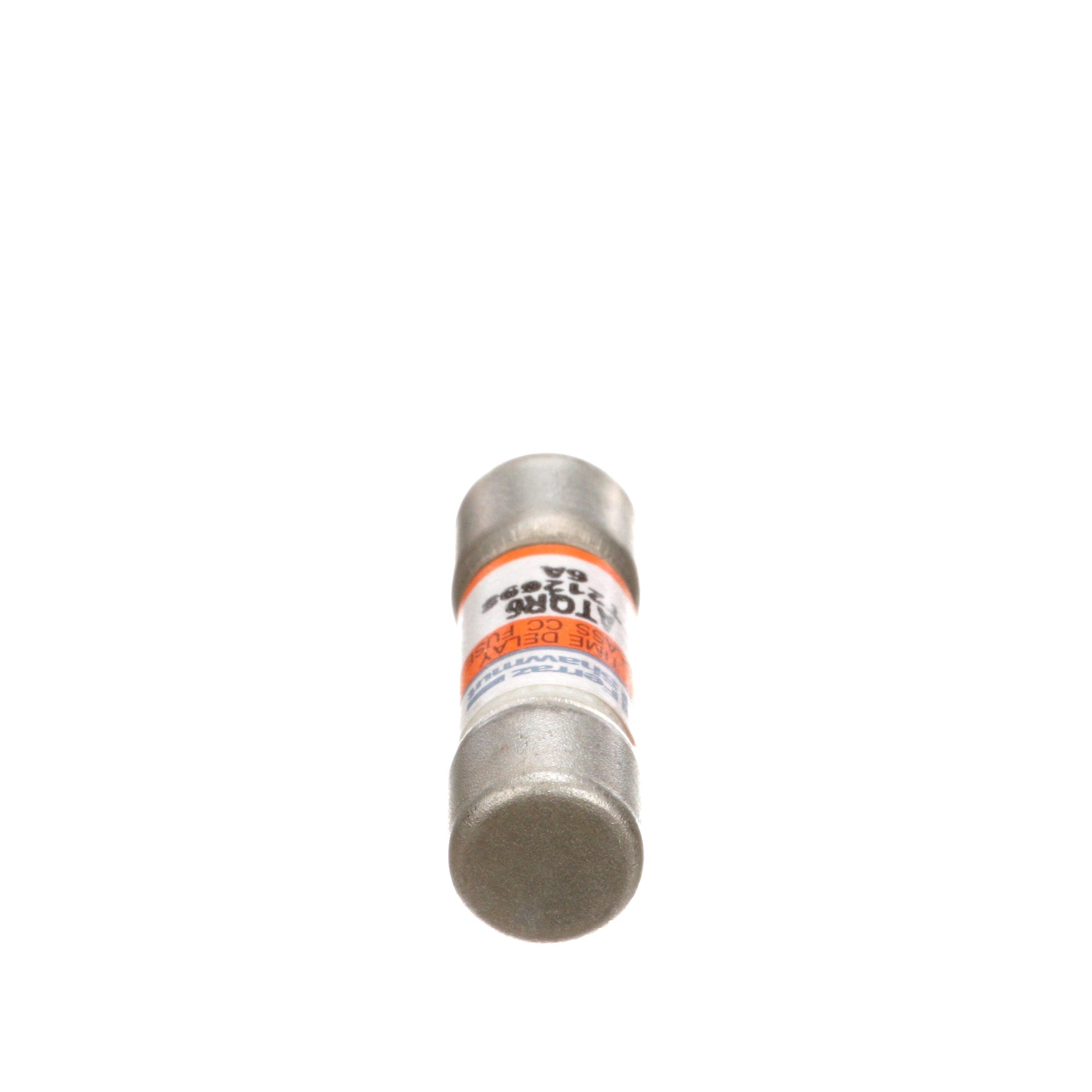

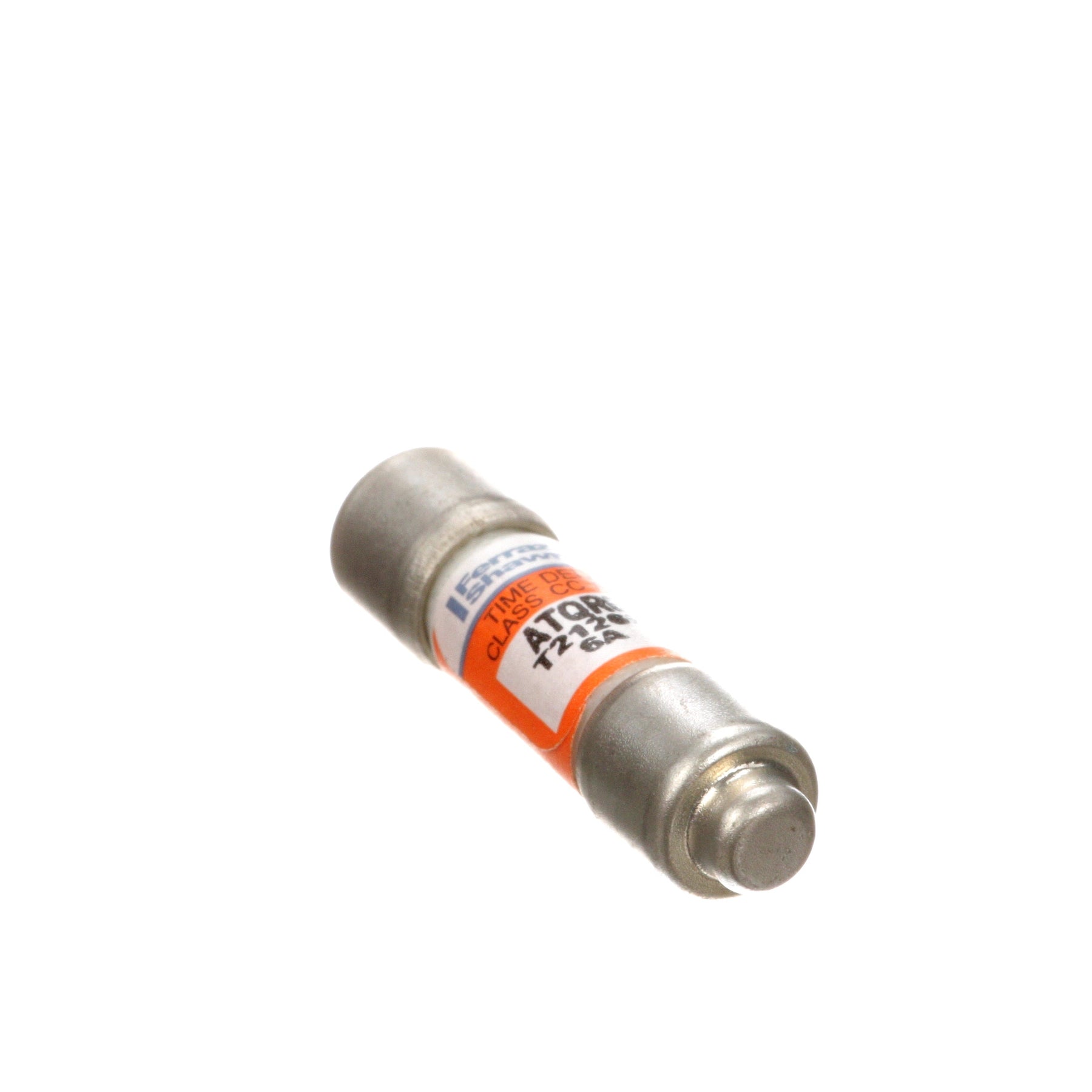

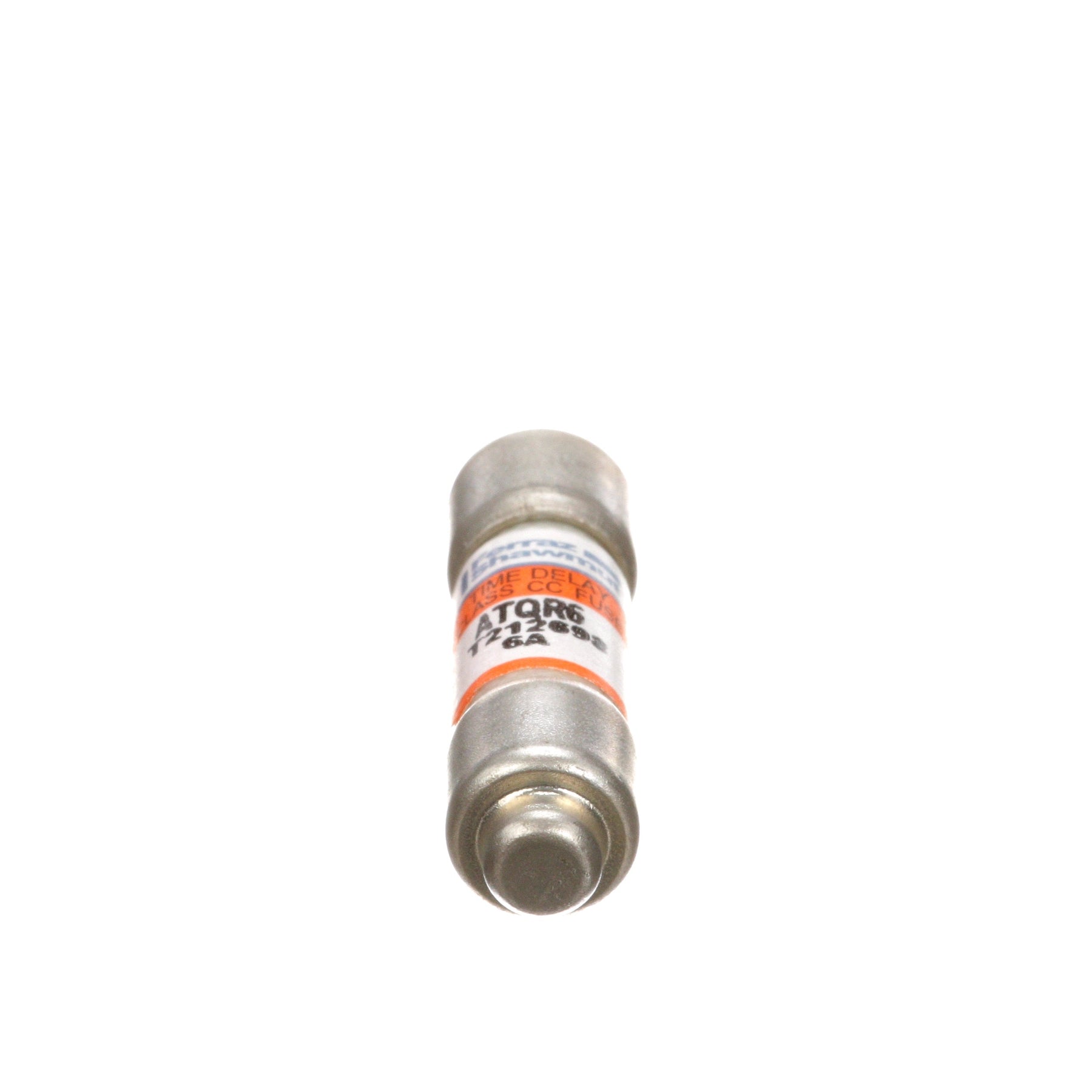

Mersen ATQR6 - Class CC Fuse 6A 600V (200kA AIC)

Mersen ATQR6 is a Class CC low-voltage current-limiting fuse designed for comprehensive circuit protection in industrial applications. It provides reliable overcurrent protection with a 600V AC rating and 6A current capacity, featuring a compact single-barrel construction measuring 1-1/2 inches in length with a 0.41-inch diameter. The fuse meets UL/CSA certification standards and delivers 200kA interrupting capacity at 600V for high-fault current protection. Typical applications include motor control centers, industrial control panels, and power distribution systems requiring Class CC protection.

Key Features & Specifications

• Type: Class CC current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL/CSA certified
• Applications: Motor control centers, industrial control panels, power distribution systems
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Family: Amp-Trap 2000
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico
• Weight: 5 lb

Product Identification

• UPC: 782001906603
• GTIN: 00782001906603
