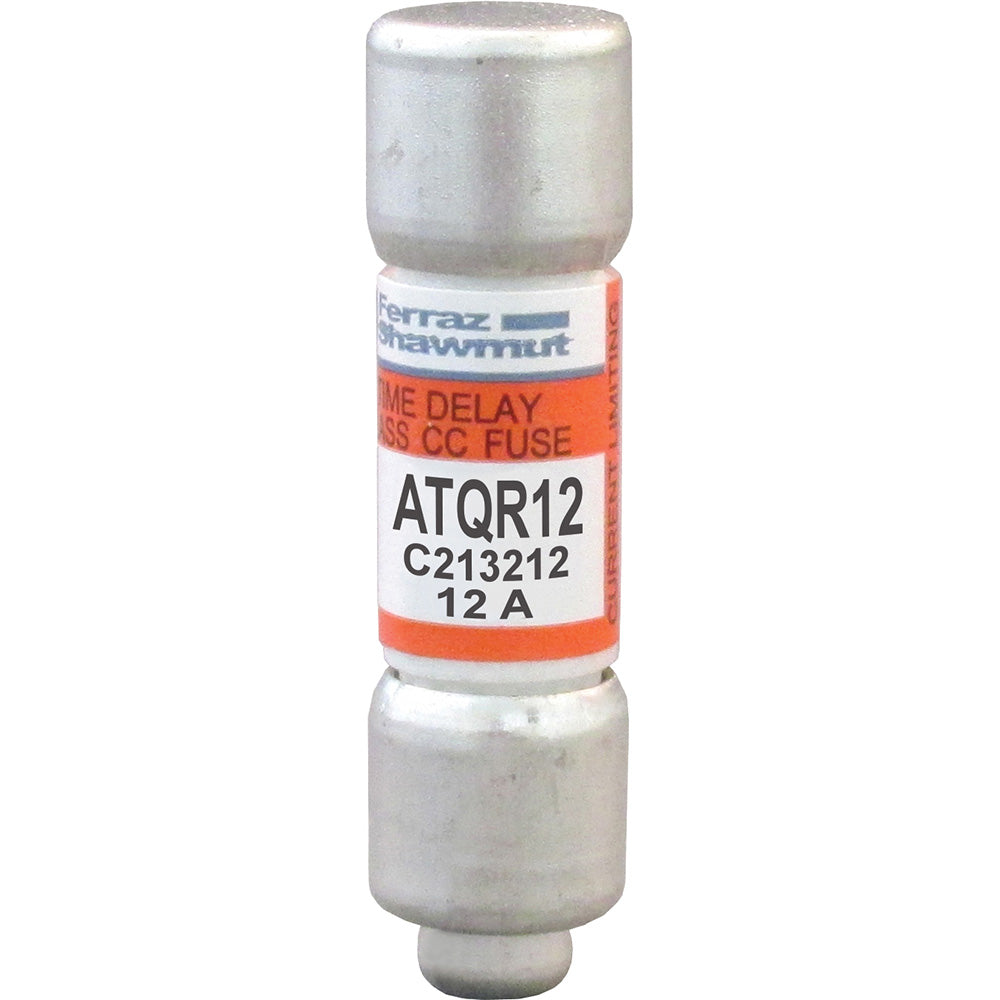

Mersen ATQR12 - Class CC Fuse 12A 600V (200kA AIC Rating)

Mersen
Price
Save $902.70
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen ATQR12 is a Class CC low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating with a 12A current rating and provides 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction includes a single-barrel design measuring 1-1/2 inches in length with 0.41-inch diameter and weighs 5 lb, built with current-limiting technology to protect against high fault currents. Certified to UL/CSA standards, this Amp-Trap 2000 series fuse meets rigorous industry requirements for safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits in industrial panels and switchgear.

Key Features & Specifications
  • Type: Class CC current-limiting fuse, single barrel design
  • Voltage Rating: 600V AC/DC
  • Current Rating: 12A
  • Dimensions: 1-1/2 inch length, 0.41 inch diameter
  • Standards: UL/CSA certified
  • Applications: Industrial control circuits, transformers, motor protection
  • AIC rating: 200kA @ 600V
  • Class Rating: CC
  • Barrels: 1
  • Weight: 5 lb
  • Family: Amp-Trap 2000
  • Country of Origin: Mexico


Product Identification
  • UPC: 078200190473
  • GTIN: 00782001904739
