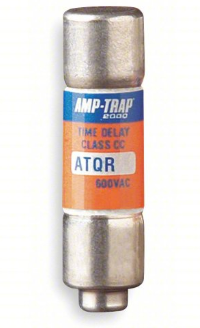

Mersen ATQR0.75 - Class CC Time-Delay Fuse 0.75A 600V
Mersen ATQR0.75 - Class CC Time-Delay Fuse 0.75A 600V

Mersen ATQR0.75 - Class CC Time-Delay Fuse 0.75A 600V

Mersen
Price
Save $-26.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Mersen ATQR0.75 is a Class CC, time-delay fuse designed for the protection of motor circuits, control transformers, and other inductive loads against short circuits and overloads. This 0.75 Amp, 600 Volt AC/DC rated fuse features a compact 13/32-inch by 1-1/2-inch ferrule construction with a high interrupting rating of 200,000 Amps RMS symmetrical, ensuring robust fault current limitation. It meets UL 248-4 and CSA C22.2 standards, providing reliable branch circuit protection. Typical applications include motor control centers, panelboards, and disconnect switches in industrial environments.

Key Features & Specifications
  • Type: Class CC, Time-Delay Ferrule Fuse
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 0.75 Amps
  • Dimensions: 13/32" x 1-1/2" (10.3mm x 38.1mm)
  • Standards: UL 248-4, CSA C22.2 No. 248.4
  • Applications: Motor circuits, control transformers, solenoid valves, and small power supplies
  • Fuse Class: CC
  • Interrupting Rating: 200,000 Amps RMS Symmetrical
  • Weight: 5.19 lb


Product Identification
  • UPC: 782001892651
