Mersen ATQR0.5 - Class CC Time-Delay Fuse 0.5A 600V
Mersen ATQR0.5 - Class CC Time-Delay Fuse 0.5A 600V

Mersen ATQR0.5 - Class CC Time-Delay Fuse 0.5A 600V

Mersen
Price
Save $-21.95
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

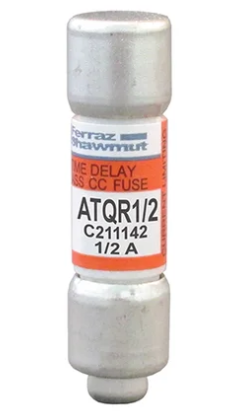

Mersen ATQR0.5 is a 0.5-amp, 600-volt AC/300-volt DC Class CC time-delay fuse designed for the protection of control circuits, small motors, and transformers. This ferrule-type fuse features a compact 13/32-inch diameter by 1-1/2-inch length body with a high interrupting rating of 200,000 amps RMS, providing robust short-circuit protection. Constructed with a glass melamine body and nickel-plated brass end caps, it meets UL 248-4 and CSA C22.2 standards for Class CC fuses. The time-delay characteristic allows it to withstand harmless inrush currents, making it ideal for motor starter, solenoid, and control power transformer applications.

Key Features & Specifications
  • Type: Class CC, time-delay, ferrule fuse
  • Voltage Rating: 600 VAC / 300 VDC
  • Current Rating: 0.5 A
  • Dimensions: 13/32" diameter x 1-1/2" length
  • Standards: UL 248-4, CSA C22.2
  • Applications: Control circuits, small motors, transformers, solenoids
  • Fuse Class: CC
  • AIC rating: 200 kA RMS
  • Mounting: Ferrule (clip)
  • Weight: 0.0201 lb


Product Identification
  • UPC: Not provided
  • GTIN: Not provided
