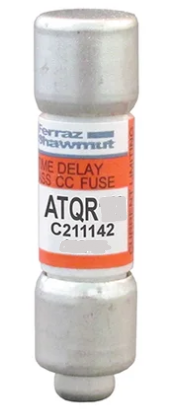

Mersen ATQR0.4 - Class CC Fuse 0.4A 600V Time-Delay
Mersen ATQR0.4 - Class CC Fuse 0.4A 600V Time-Delay

Mersen ATQR0.4 - Class CC Fuse 0.4A 600V Time-Delay

Mersen
Price
Save $-26.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen ATQR0.4 is a 0.4-amp, 600-volt AC/DC ferrule-type fuse designed for the overcurrent protection of small motors, transformers, and solenoids. This compact, 13/32-inch by 1-1/2-inch fuse features a time-delay characteristic to accommodate inrush currents, with a high interrupting rating of 200,000 amps RMS symmetrical. Constructed with a glass tube body and nickel-plated brass end caps, it meets UL 248-14 standards for Class CC fuses. Typical applications include protecting control circuits, lighting ballasts, and small power supplies in industrial environments.

Key Features & Specifications
  • Type: Time-delay, ferrule, Class CC fuse
  • Voltage Rating: 600 VAC/VDC
  • Current Rating: 0.4 A
  • Dimensions: 13/32" x 1-1/2" (10.3 mm x 38.1 mm)
  • Standards: UL 248-14, CSA C22.2 No. 248.14
  • Applications: Motor protection, transformer protection, solenoid protection, control circuit protection
  • Interrupting Rating: 200 kA RMS Sym.
  • Weight: 0.0169 lb


Product Identification
  • UPC: 782001401302
  • GTIN: 00782001401302
