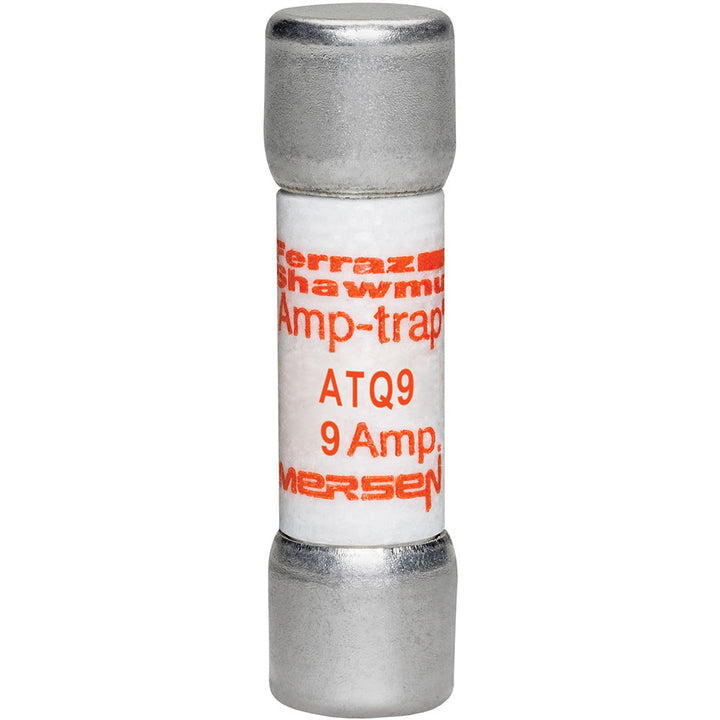

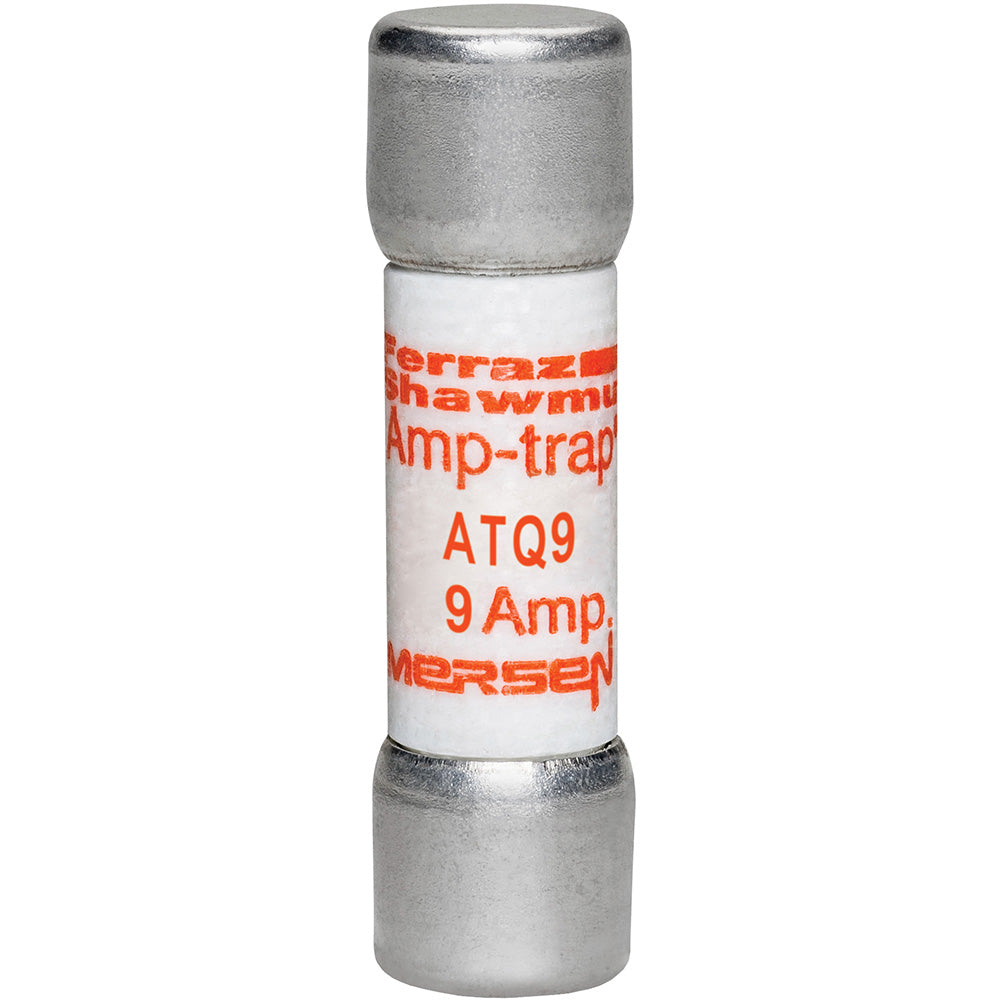

Mersen ATQ9 - Low Voltage Fuse 9A 500V (10kA AIC Rating)

Mersen ATQ9 is a low-voltage current-limiting fuse designed for protecting electrical circuits and equipment from overcurrent conditions. This 9A fuse operates at 500V AC/DC with a 10kA interrupting rating, featuring a compact midget class design measuring 1-1/2" in length and 0.41" in diameter with single-barrel construction. The fuse meets UL and CSA certification standards for industrial safety compliance, making it suitable for various electrical protection applications in industrial control circuits, motor branch circuits, and power distribution systems where reliable overcurrent protection is required.

Key Features & Specifications

• Type: Current-limiting low voltage fuse, single barrel construction
• Voltage Rating: 500V AC/DC
• Current Rating: 9A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: UL, CSA certified
• Applications: Industrial control circuits, motor protection, power distribution
• AIC rating: 10kA@500V
• Class Rating: Midget
• Barrels: 1
• Weight: 0.01 lb
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001904326
• GTIN: 00782001904326
