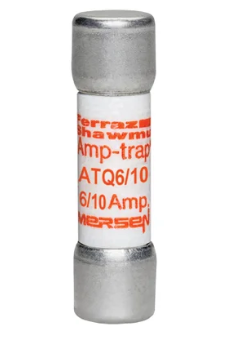

Mersen ATQ6/10 - Low Voltage Fuse 6A@500V (10kA AIC)

Mersen ATQ6/10 is a low-voltage fuse designed for circuit protection in industrial applications, featuring a 6A current rating and 500V voltage rating for reliable overcurrent interruption. Its compact midget-class design measures 1-1/2 inches in length with a 0.41-inch diameter, constructed with a single-barrel configuration and weighing 5 lb for easy installation. Certified to UL and CSA standards, this Amp-Trap series fuse delivers 10kA interrupting capacity at 500V for robust short-circuit protection. Typical applications include motor control centers, transformers, and power distribution equipment requiring precise fault current limitation.

Key Features & Specifications

• Type: ATQ class midget fuse, single-barrel construction
• Voltage Rating: 500V AC
• Current Rating: 6A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL, CSA certified
• Applications: Motor controls, transformers, power distribution
• AIC rating: 10kA@500V
• Class Rating: Midget
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001902674
• GTIN: 00782001902674
