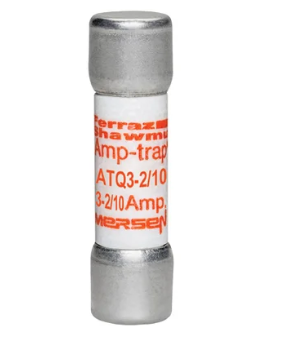

Mersen ATQ3-2/10 - Current Limiting Fuse 3A 500V (10kA AIC Rating)

Mersen ATQ3-2/10 is a low voltage current-limiting fuse designed for protecting sensitive electrical equipment from short-circuit and overload conditions. This 3A fuse operates at 500V AC/DC with a 10kA interrupting rating at 500V, providing reliable circuit protection in demanding environments. The compact midget-class design features a single-barrel construction measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs only 0.01 lb for space-constrained applications. Certified to UL and CSA standards, this Amp-Trap series fuse meets rigorous industry requirements for safety and performance. Typical applications include industrial control circuits, motor branch circuits, and power distribution systems where precise overcurrent protection is critical.

Key Features & Specifications

• Type: ATQ current-limiting fuse, midget class, single barrel construction
• Voltage Rating: 500V AC/DC
• Current Rating: 3A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL, CSA certified
• Applications: Industrial control circuits, motor protection, power distribution
• AIC rating: 10kA@500V
• Class Rating: Midget
• Barrels: 1
• Weight: 0.01 lb
• Family: Amp-Trap
• Country of Origin: Mexico

Product Identification

• UPC: 782001906078
• GTIN: 00782001906078
