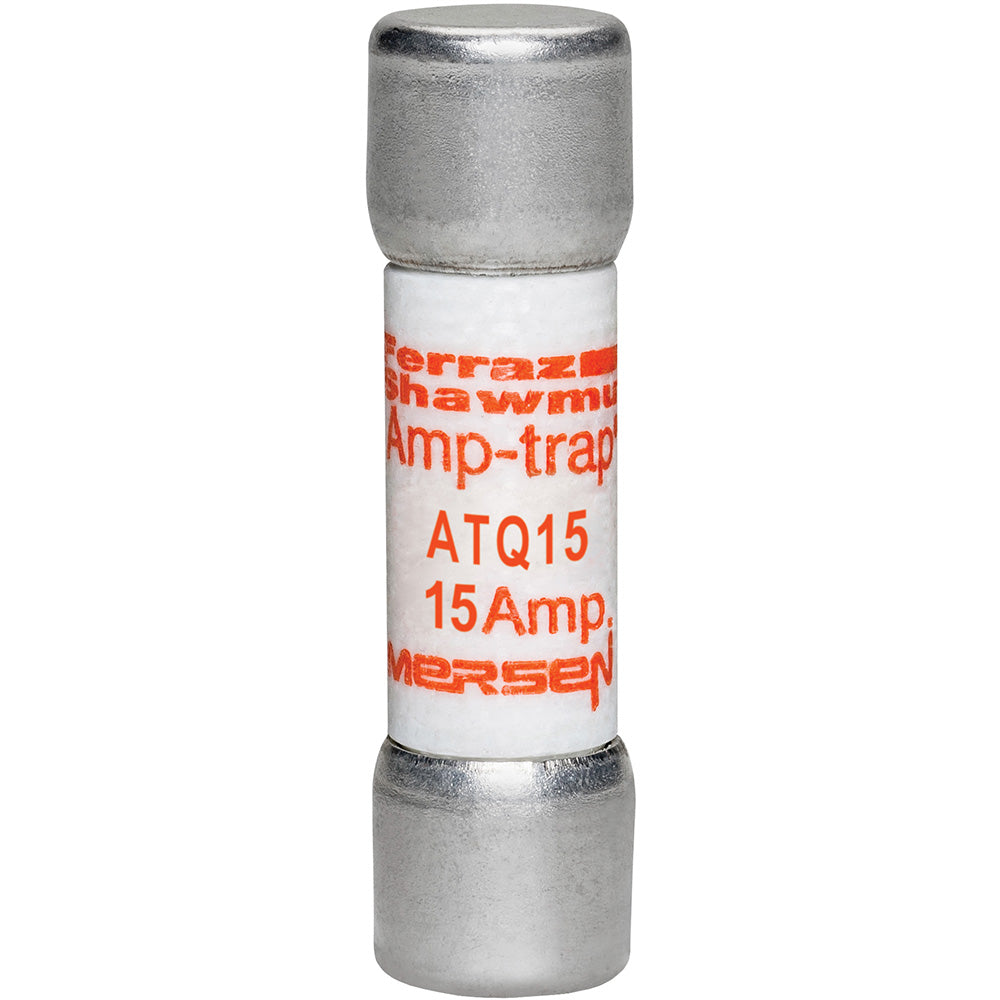

Mersen ATQ15 - Low Voltage Fuse 15A@500V (10kA AIC, CSA/UL Certified)

Mersen ATQ15 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This 500V-rated fuse features a 15A current rating with a 10kA interrupting capacity at 500V, housed in a compact midget-class design measuring 1-1/2" in length and 0.41" in diameter. The single-barrel construction meets CSA and UL safety standards, providing reliable overcurrent protection for control circuits, transformers, and motor branch circuits in harsh environments.

Key Features & Specifications

• Type: ATQ series current-limiting fuse with ceramic body
• Voltage Rating: 500V AC
• Current Rating: 15A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CSA, UL certified
• Applications: Motor protection, control circuits, transformers
• Class Rating: Midget
• AIC rating: 10kA@500V
• Barrels: 1
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001904609
• GTIN: 00782001904609
