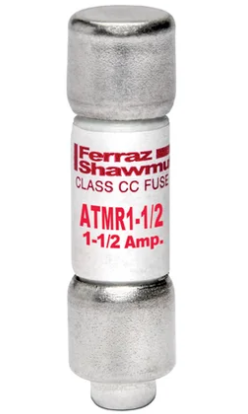

Mersen ATMR1.5 - Class CC Fuse 1.5A 600V (Time-Delay)
Mersen ATMR1.5 - Class CC Fuse 1.5A 600V (Time-Delay)

Mersen ATMR1.5 - Class CC Fuse 1.5A 600V (Time-Delay)

Mersen
Price
Save $-17.95
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen ATMR1.5 is a 1.5-amp, 600-volt AC/DC rated, time-delay Class CC fuse designed for branch circuit protection of motor circuits, transformers, and other inductive loads. It features a compact 13/32-inch by 1-1/2-inch ferrule construction with a high interrupting rating of 200,000 amps RMS symmetrical, ensuring robust fault current limitation. The fuse is UL Listed to Standard 248-4 and CSA Certified, meeting stringent North American safety and performance requirements for overcurrent protection. Typical applications include motor control centers, panelboards, and control power transformers where inrush currents necessitate time-delay characteristics.

Key Features & Specifications
  • Type: Time-delay Class CC fuse, ferrule construction, melamine tube
  • Voltage Rating: 600 VAC/DC
  • Current Rating: 1.5 A
  • Dimensions: 13/32 in diameter x 1-1/2 in length
  • Standards: UL 248-4, CSA C22.2 No. 248.4
  • Applications: Motor circuits, transformers, control circuits, lighting
  • Switch Type: N/A
  • Configuration: Single element
  • Coil Voltage Maximum: N/A
  • Temp Rating: -40°C to 80°C
  • Shipping Dimensions: 0.41 x 0.41 x 1.5 in
  • Phase: Single
  • Voltage: 600 V
  • Amperage: 1.5 A
  • AIC rating: 200 kA RMS Sym.
  • Connection: Ferrule
  • Poles: 1
  • Protection: Overcurrent
  • Functions: Time-delay
  • Frame Size: N/A
  • Trip Type: N/A
  • Panel Type: N/A
  • Breaker Type: N/A
  • Control Voltage Minimum: N/A
  • Control Voltage Maximum: N/A
  • MCM Size: N/A
  • Metal Type: Copper alloy
  • Panel Style: N/A
  • Bus Type: N/A
  • Fuse Class: CC
  • Insulation Temperature: 80°C
  • Inductance: N/A
  • Impedance: N/A
  • Barrels: 1
  • Class Rating: CC
  • Diameter: 0.406 in
  • Velocity: N/A
  • Clip Center: 1.5 in
  • Clas: CC
  • Mounting: Clip
  • Hz: 50/60
  • Coil Material: N/A
  • Horse Power: N/A
  • Aux Contacts: N/A
  • CPT: N/A
  • Full Load Amps: 1.5 A
  • Dist Voltage: 600 V
  • Bucket Size: N/A
  • Bucket Style: N/A
  • Bucket Type: N/A
  • Full Load Amp Maximum: 1.5 A
  • Full Load Amp Minimum: 1.5 A
  • Enclosure: N/A
  • Relay Style: N/A
  • Coil Voltage Minimum: N/A
  • Wire: N/A
  • Amperage Maximum: 1.5 A
  • Amperage Minimum: 1.5 A
  • Nema Rating: N/A
  • Switch Style: N/A
  • Wire Size: N/A
  • Certification: UL, CSA
  • Circuit Breaker Mounting Style: N/A
  • Terminal Connection: Ferrule
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single
  • Standards: UL 248-4, CSA C22.2
  • Compatible Frames: N/A
  • Installation Type: Clip
  • Item QTY: 1
  • Nema Starter Size: N/A
  • Breaker Frame: N/A
  • Current Rating: 1.5 A
  • Reverse Standoff Voltage: N/A
  • Watts: N/A
  • Peak Pulse Current: N/A
  • Breakdown Voltage (MIN VBR@IT ) (V): N/A
  • Breakdown Voltage (VBR@IT) (V): N/A
  • Polarity: N/A
  • Operating Temperature Maximum Celsius: 80°C
  • Max Clamp Voltage: N/A
  • On-State Current: N/A


Product Identification
  • UPC: 78200190481
  • GTIN: 00782001904814
