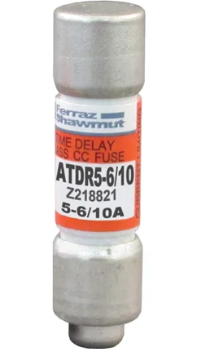

Mersen ATDR5-6/10 - Class CC Fuse 5A 600V (200kA AIC Rating)
Mersen ATDR5-6/10 - Class CC Fuse 5A 600V (200kA AIC Rating)
Mersen ATDR5-6/10 - Class CC Fuse 5A 600V (200kA AIC Rating)
Mersen ATDR5-6/10 - Class CC Fuse 5A 600V (200kA AIC Rating)

Mersen ATDR5-6/10 - Class CC Fuse 5A 600V (200kA AIC Rating)

Mersen
Price
Save $928.59
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Mersen ATDR5-6/10 is a low voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating with a 5A current rating and provides 200kA interrupting capacity at 600V for reliable fault protection. The fuse has a compact single-barrel construction measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 0.02 lb, utilizing Class CC dimensions for standardized mounting. Certified to UL/CSA standards, this Amp-Trap 2000 series fuse meets rigorous safety requirements for industrial applications. Typical applications include protection of control circuits, transformers, and motor circuits where current limitation and high interrupting ratings are essential.

Key Features & Specifications
  • Type: Current-limiting low voltage fuse, single barrel construction
  • Voltage Rating: 600V AC
  • Current Rating: 5A
  • Dimensions: 1-1/2 inch length, 0.41 inch diameter
  • Standards: UL/CSA certified
  • Applications: Control circuits, transformers, motor circuit protection
  • AIC rating: 200kA @ 600V
  • Class Rating: CC
  • Barrels: 1
  • Weight: 0.02 lb
  • Family: Amp-Trap 2000
  • Country of Origin: Mexico


Product Identification
  • UPC: 782001908577
  • GTIN: 00782001908577
