Mersen ATDR1.25 - Class CC Fuse 1.25A 600V (Time-Delay)
Mersen ATDR1.25 - Class CC Fuse 1.25A 600V (Time-Delay)

Mersen ATDR1.25 - Class CC Fuse 1.25A 600V (Time-Delay)

Mersen
Price
Save $124.22
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

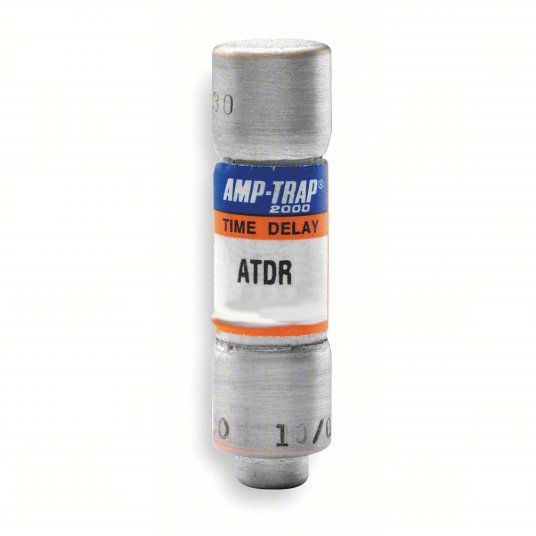

Mersen ATDR1.25 is a 1.25-amp, time-delay Class CC fuse designed for branch circuit protection of motor circuits, transformers, and other inductive loads. It is rated for 600 volts AC and provides a high interrupting rating of 200,000 amps RMS symmetrical, ensuring robust protection against short circuits. The fuse measures 1.5 inches in length with a 0.41-inch diameter, weighs 0.1 lb, and features a compact, rejection-style design that prevents interchangeability with non-Class CC fuses. It complies with UL 248-4 and CSA standards, making it suitable for industrial control panels, motor starters, and lighting systems where inrush currents are present.

Key Features & Specifications
  • Type: Class CC, time-delay fuse with rejection-style mounting
  • Voltage Rating: 600 VAC
  • Current Rating: 1.25 A
  • Dimensions: Length 1.5 inches X Diameter 0.41 inches
  • Standards: UL 248-4, CSA
  • Applications: Branch circuit protection for motors, transformers, and inductive loads
  • Fuse Class: CC
  • Interrupting Rating: 200,000 AIC
  • Weight: 0.1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 782001901097
  • GTIN: 00782001901097
