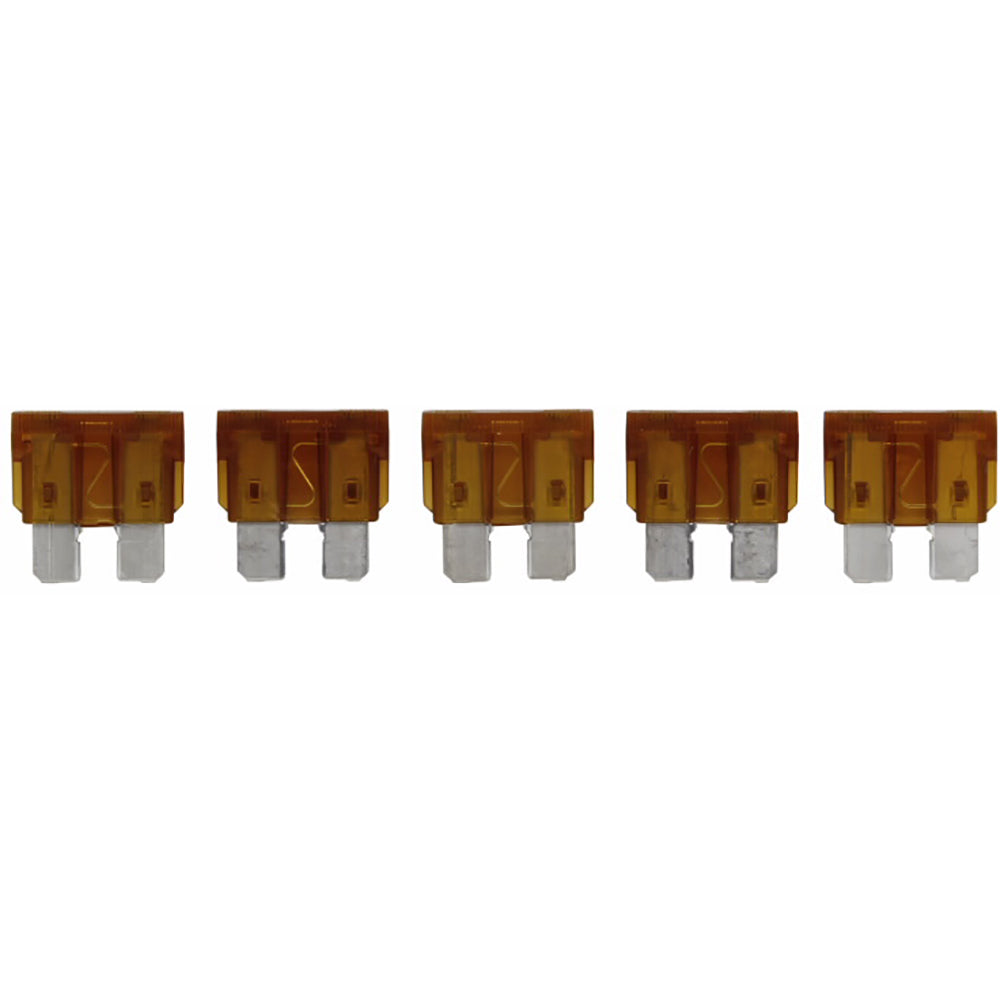

Bussmann ATC-5 - ATC Blade Fuse 5A (32V DC, 1000A AIC)

Bussmann ATC-5 is a low voltage blade fuse designed for circuit protection in 32V DC automotive and electronic systems. It features a 5A current rating and a compact 3/4 inch x 3/4 inch blade-style construction for secure connections. The fuse is UL Recognized under Guide JFHR2 (File E56412) and provides an interrupting rating of 1000A at 32V DC. Typical applications include protection for automotive accessories, marine electronics, and low voltage power distribution circuits.

Key Features & Specifications

• Type: ATC Blade Fuse
• Voltage Rating: 32V DC
• Current Rating: 5A
• Dimensions: 3/4 in x 3/4 in
• Standards: UL Recognized Guide JFHR2, File E56412
• Applications: Automotive, Marine Electronics, Low Voltage Power Distribution
• Connection: Blade
• AIC rating: 1000A@32Vdc
• Weight: 3 lb

Product Identification

• UPC: 05171270322
• GTIN: 00051712703222
