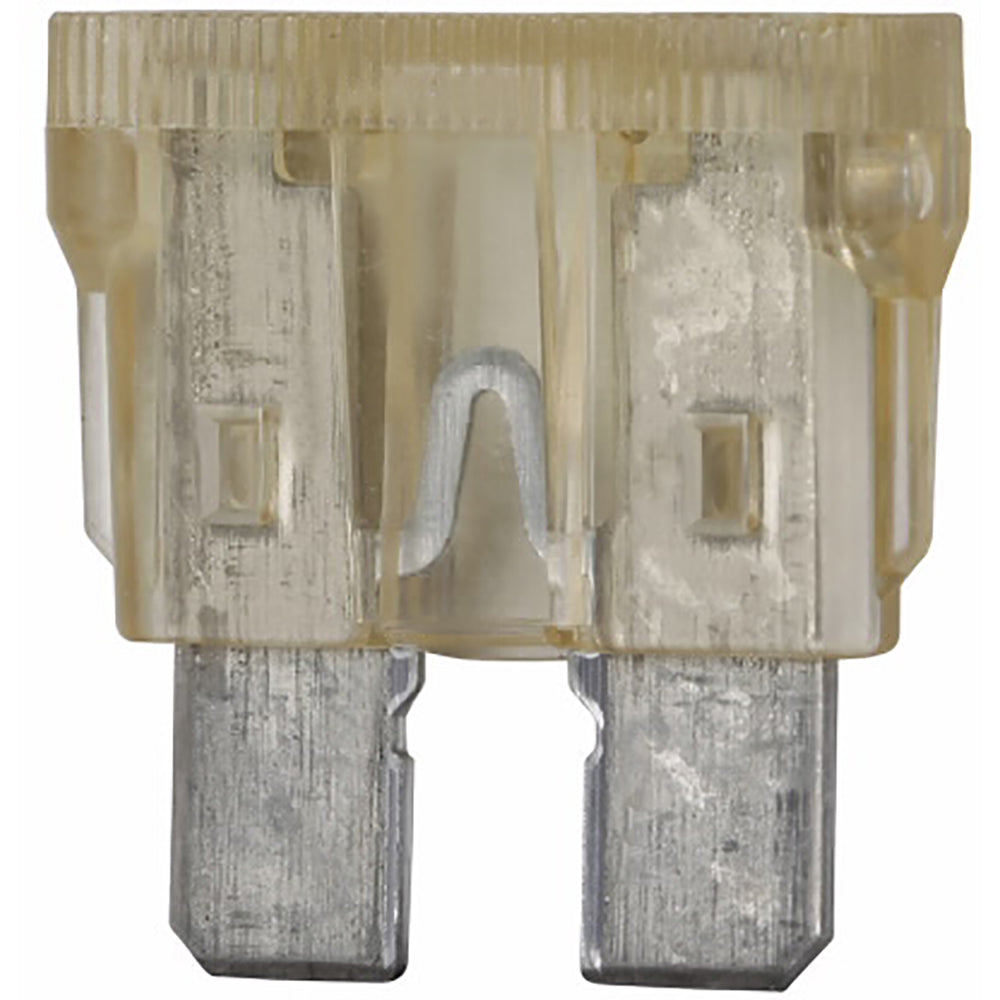

Bussmannn ATC-25 - Blade Fuse 25A@32VDC (1000A AIC)

Bussmannn ATC-25 is a low-voltage blade fuse designed for circuit protection in automotive and industrial DC applications. Rated for 32V DC systems with a 25A current capacity, it features a compact 3/4" x 3/4" blade-style construction with UL recognition under Guide JFHR2 (File E56412). The fuse offers 1000A interrupting capacity at 32V DC, meeting stringent safety requirements for vehicle electrical systems and DC power distribution. Its durable design ensures reliable overcurrent protection in harsh environments, with applications ranging from automotive accessories to renewable energy systems.

Key Features & Specifications

• Type: ATC series blade fuse, low-voltage DC protection
• Voltage Rating: 32V DC
• Current Rating: 25A
• Dimensions: 3/4" x 3/4" x 1-1/4" (19.05mm x 19.05mm x 31.75mm)
• Weight: 1 lb
• Connection: Blade terminal
• AIC Rating: 1000A@32V DC
• Certification: UL Recognized (Guide JFHR2, File E56412)
• Applications: Automotive circuits, DC power distribution, industrial controls
• Country of Origin: Japan

Product Identification

• UPC: 05171270327
• GTIN: 00051712703277
