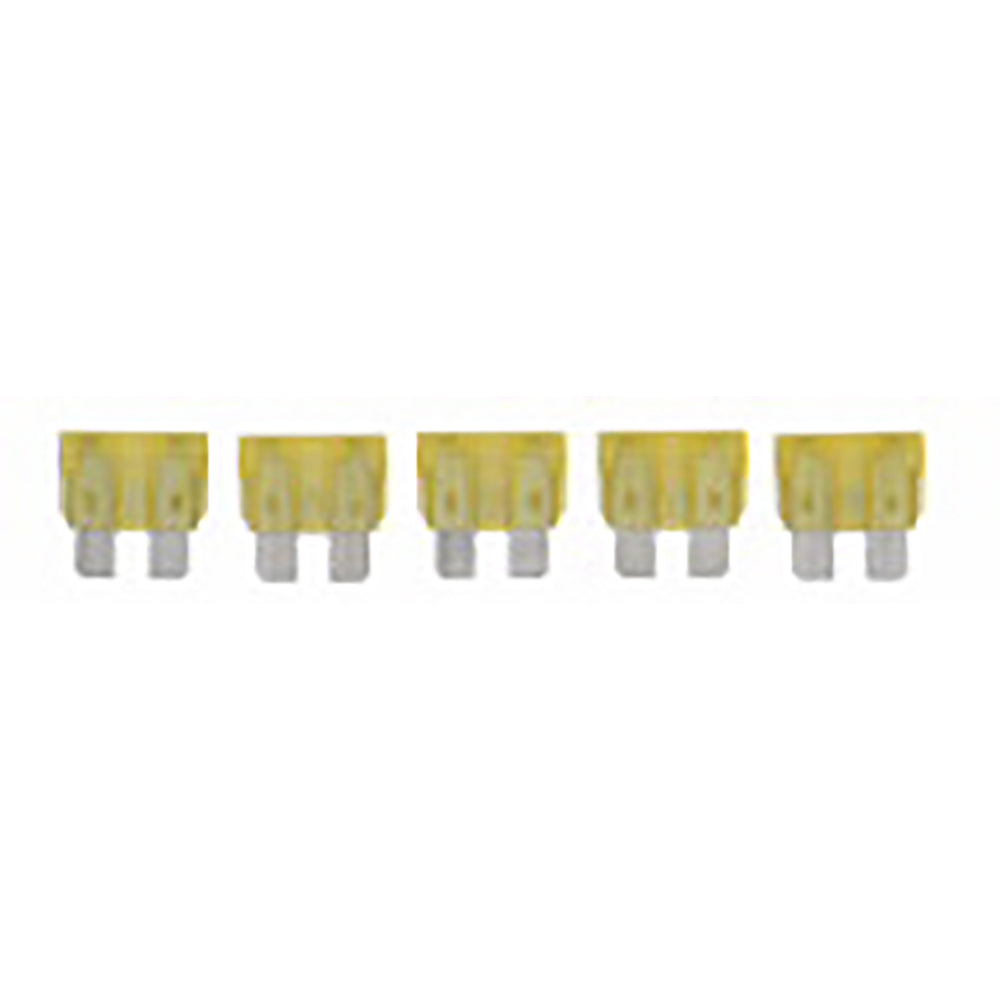

Bussmannn ATC-20 - Blade Fuse 20A (32VDC, 1000A AIC)

Bussmannn ATC-20 is a low-voltage blade fuse designed for circuit protection in automotive and industrial DC applications. It features a 32V voltage rating with a 20A current capacity, housed in a compact 3/4" x 3/4" blade-style package weighing 1 lb. The fuse meets UL Recognized standards (Guide JFHR2, File E56412) and delivers 1000A interrupting capacity at 32V DC, making it suitable for vehicle electrical systems and DC power distribution panels.

Key Features & Specifications

• Type: ATC-series blade fuse with tin-plated copper terminals
• Voltage Rating: 32V DC
• Current Rating: 20A
• Dimensions: 3/4 in x 3/4 in
• Weight: 1 lb
• Connection: Blade
• Certification: UL Recognized (JFHR2, E56412)
• AIC Rating: 1000A@32Vdc
• Country of Origin: Japan

Product Identification

• UPC: 05171270326
• GTIN: 00051712703260
