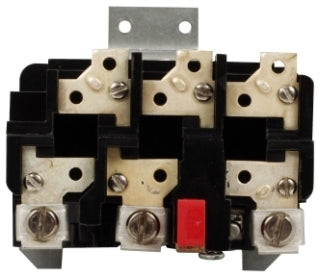

Cutler Hammer AN33A - Thermal Overload Relay 19-90A
Cutler Hammer AN33A - Thermal Overload Relay 19-90A

Cutler Hammer AN33A - Thermal Overload Relay 19-90A

Cutler Hammer
Price
Save $212.30
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer AN33A is a thermal overload relay designed for motor protection in industrial control systems, providing back-up class protection against sustained overcurrent conditions. This relay operates with a voltage rating of 20V and supports an adjustable current range from a minimum of 19 amperes up to a maximum of 90 amperes, with an AIC rating of 20kA for fault current interruption. Physically, it measures 8.2 inches in length/depth, 5.1 inches in height, and 6 inches in width, weighs 2.1 lb, and features a ferrule connection with a diameter of 67 for secure wiring. The thermal relay style ensures reliable thermal response to motor heating, complying with industry standards for overload protection in motor control centers and panelboards. Typical applications include protecting motors in manufacturing, pumping, and HVAC systems where precise current monitoring and back-up protection are required.

Key Features & Specifications
  • Type: Thermal overload relay, back-up class protection
  • Voltage Rating: 20V
  • Current Rating: 19 to 90 amperes (adjustable)
  • Dimensions: 8.2 in x 5.1 in x 6 in (Length/Depth x Height x Width)
  • Standards: Industry standard for motor overload protection
  • Applications: Motor protection in industrial control systems, manufacturing, pumping, HVAC
  • Relay Style: Thermal
  • Diameter: 67
  • Class Rating: Back-Up
  • Connection: Ferrule
  • AIC rating: 20kA
  • Weight: 2.1 lb


Product Identification
  • UPC: 78667824870
  • GTIN: 78667824870
