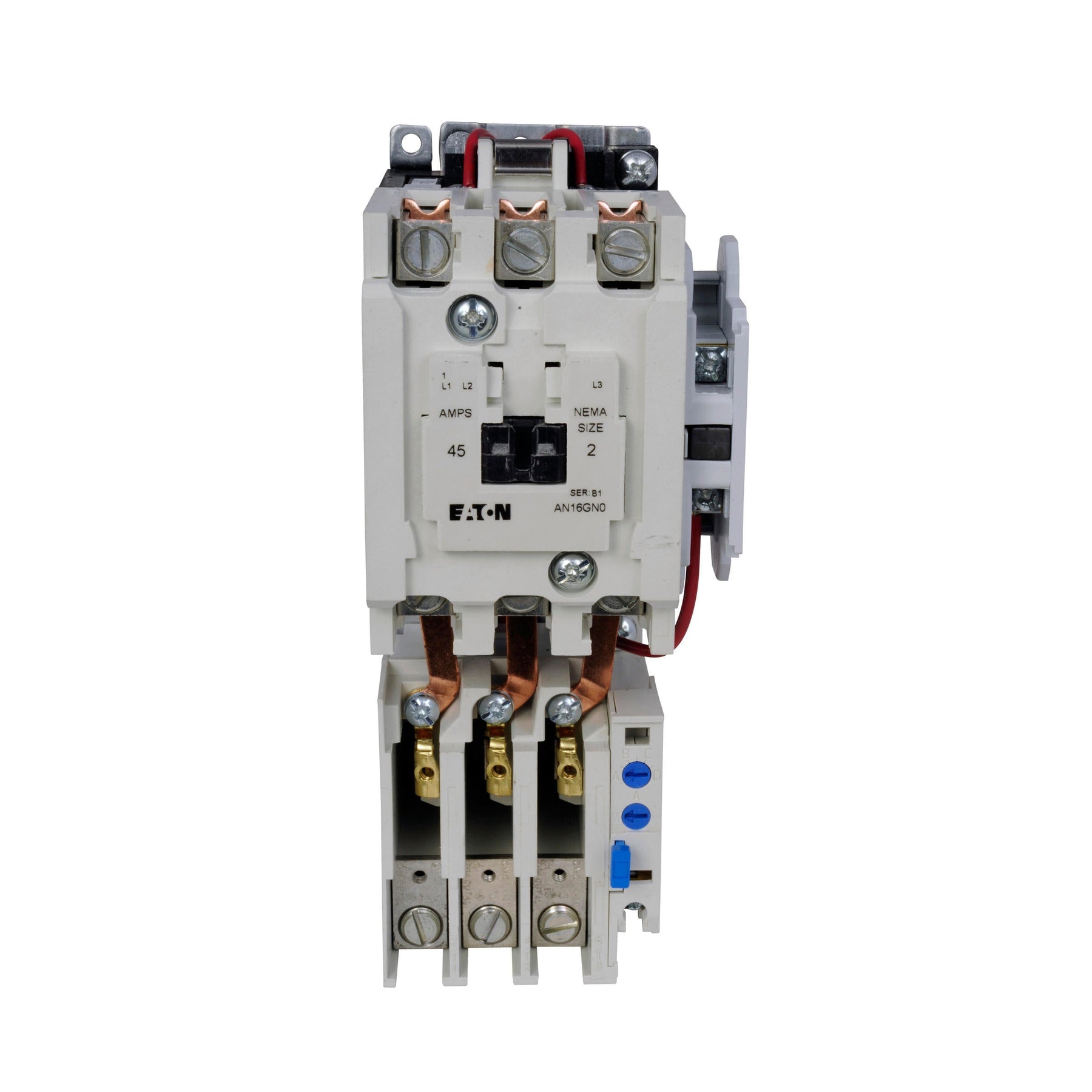

Eaton Cutler Hammer AN16GN0TB - NEMA Size 2 Motor Starter, 45A
Eaton Cutler Hammer AN16GN0TB - NEMA Size 2 Motor Starter, 45A

Eaton Cutler Hammer AN16GN0TB - NEMA Size 2 Motor Starter, 45A

Cutler Hammer
Price
Save $894.54
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer AN16GN0TB is a non-reversing NEMA motor starter from the Freedom AN16 family, designed to provide reliable motor control and overload protection for three-phase industrial equipment. This Size 2 starter is rated for 600V AC and 45A continuous current, supporting a range of horsepower from 3 HP at 115V up to 25 HP at 480/600V, with a coil voltage range of 24V minimum to 240V at 60Hz or 220V at 50Hz maximum. The unit measures 4.94 inches in depth, 3.31 inches in height, and 4.38 inches in width, weighing 3.3 lb, and features a compact, three-pole configuration suitable for panel mounting. It complies with NEMA standards for industrial motor control applications, ensuring robust performance in environments requiring frequent starting and stopping of motors. Typical applications include conveyors, pumps, fans, and other machinery in manufacturing, processing, and HVAC systems.

Key Features & Specifications
  • Type: Non-reversing NEMA motor starter, Freedom AN16 family
  • Voltage Rating: 600V AC
  • Current Rating: 45A
  • Dimensions: 4.94 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
  • Standards: NEMA rated
  • Applications: Industrial motor control for conveyors, pumps, fans, and HVAC
  • Switch Type: Motor starter
  • Configuration: Non-reversing
  • Coil Voltage Maximum: 240V 60Hz / 220V 50Hz
  • Coil Voltage Minimum: 24V
  • Phase: 3
  • Poles: 3
  • Nema Starter Size: 2
  • Horse Power: 3 HP @ 115V; 7.5 HP @ 230V; 10 HP @ 208V; 15 HP @ 240V; 25 HP @ 480/600V
  • Weight: 3.3 lb


Product Identification
  • UPC: 78211302576
  • GTIN: 78211302576
