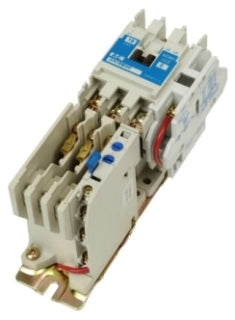

Eaton AN16BN0TC - Motor Starter 18A 600V 3-Phase
Eaton AN16BN0TC - Motor Starter 18A 600V 3-Phase

Eaton AN16BN0TC - Motor Starter 18A 600V 3-Phase

Cutler Hammer
Price
Save $-17.25
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer AN16BN0TC Motor Control is a non-reversing NEMA motor starter from the Freedom AN16 family, designed to provide reliable motor protection and control in industrial environments. This unit is rated for a maximum voltage of 600V and a continuous current of 18A, with a 3-pole configuration and a coil voltage range of 24V minimum to 480V at 60Hz or 440V at 50Hz. The starter measures 4.61 inches in depth, 3.31 inches in height, and 4.38 inches in width, weighing 2.6 lb, and is constructed for robust industrial use. It is UL Listed and CSA Certified, ensuring compliance with North American safety and performance standards. Typical applications include controlling and protecting three-phase motors in machinery, conveyors, and pumps, with horsepower ratings of 1 HP at 115V, 2 HP at 230V, 3 HP at 208/240V, and 5 HP at 480/600V.

Key Features & Specifications
  • Type: Non-reversing NEMA motor starter, Freedom AN16 family
  • Voltage Rating: 600V
  • Current Rating: 18A
  • Dimensions: 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
  • Standards: UL Listed, CSA Certified
  • Applications: Motor protection and control for three-phase motors in industrial machinery, conveyors, pumps
  • Horse Power: 1 HP @ 115V; 2 HP @ 230V; 3 HP @ 208/240V; 5 HP @ 480/600V
  • Poles: 3
  • Coil Voltage Maximum: 480V 60Hz / 440V 50Hz
  • Coil Voltage Minimum: 24
  • Phase: 3
  • Nema Starter Size: 0
  • Weight: 2.6 lb


Product Identification
  • UPC: 782113787152
  • GTIN: 00782113787152
