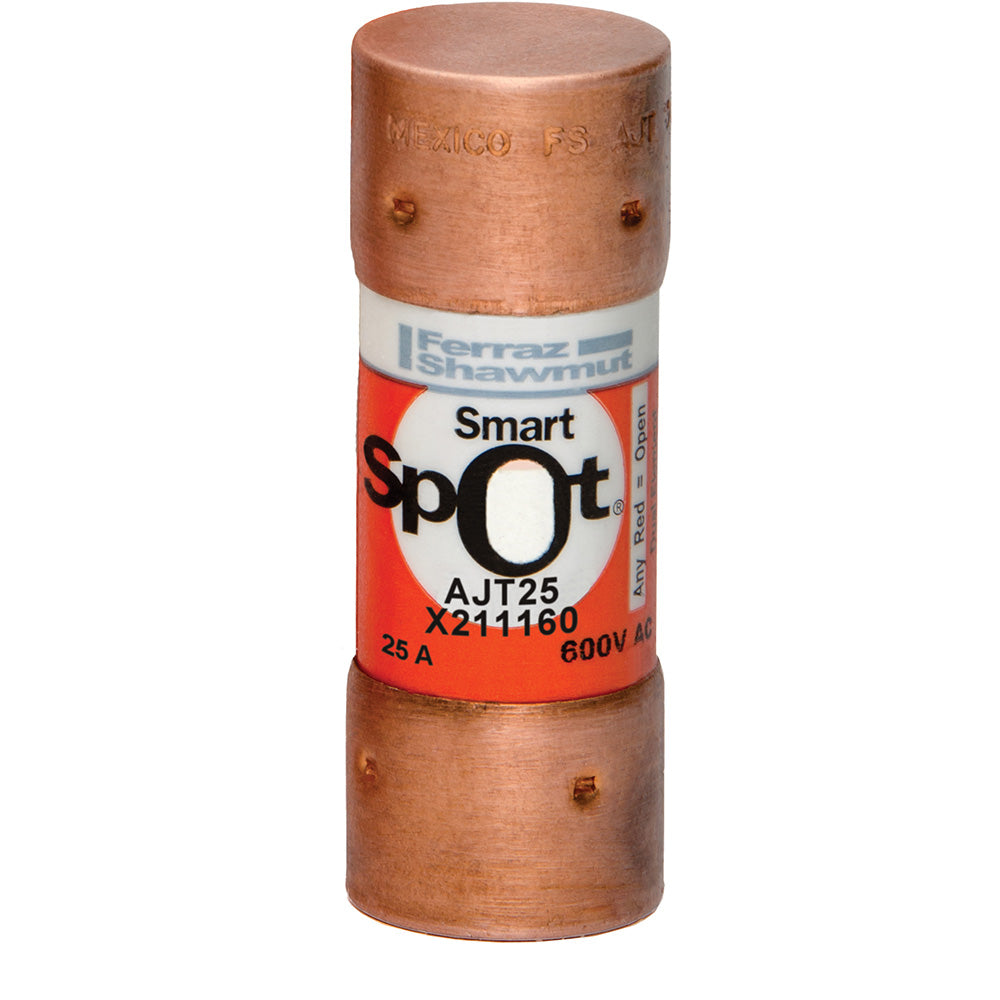

Mersen AJT25 - Class J Time-Delay Fuse 25A 600V (200kA AIC)

Mersen AJT25 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC rating with a 25A current capacity and 200kA interrupting capacity, housed in a compact 2-1/4" cylindrical body with 0.81" diameter. UL/CSA certified, this Amp-Trap 2000 series fuse utilizes time-delay characteristics for motor circuit protection while withstanding inrush currents. Its rugged construction makes it suitable for panelboards, switchgear, and industrial control equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: AJT time-delay fuse with ceramic body and sand filler
• Voltage Rating: 600V AC
• Current Rating: 25A
• Dimensions: 2-1/4" length x 0.81" diameter
• Standards: UL/CSA certified
• Applications: Motor circuits, industrial controls, power distribution
• Class Rating: J
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 782001962425
• GTIN: 00782001962425
