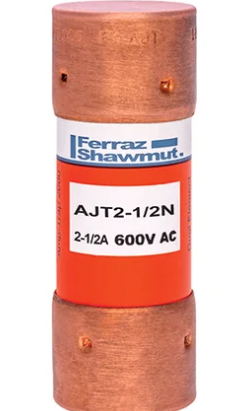

Mersen AJT2.5N - Class J Fuse 600V 2.5A Time-Delay
Mersen AJT2.5N - Class J Fuse 600V 2.5A Time-Delay

Mersen AJT2.5N - Class J Fuse 600V 2.5A Time-Delay

Mersen
Price
Save $76.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Mersen AJT2.5N is a Class J, time-delay fuse designed for branch circuit protection of motor circuits, transformers, and other inductive loads. It is rated for 600V AC/DC and carries a 2.5-amp current rating, with a high interrupting rating of 200kA RMS symmetrical. This compact, 0.097 lb fuse features a rejection-style construction that prevents substitution with lower-rated fuses, ensuring compliance with NEC requirements. It is UL Listed and CSA Certified, meeting stringent industry standards for overcurrent protection. Typical applications include motor control centers, panelboards, and disconnect switches in industrial and commercial power distribution systems.

Key Features & Specifications
  • Type: Class J, time-delay, rejection-style fuse
  • Voltage Rating: 600V AC/DC
  • Current Rating: 2.5A
  • Interrupting Rating: 200kA RMS Symmetrical
  • Dimensions: Compact, 0.097 lb weight
  • Standards: UL Listed, CSA Certified
  • Applications: Branch circuit protection for motors, transformers, and inductive loads
  • Fuse Class: J
  • Mounting: Rejection-style
  • Weight: 0.097 lb


Product Identification
  • UPC: 78200149772
  • GTIN: 00782001497729
