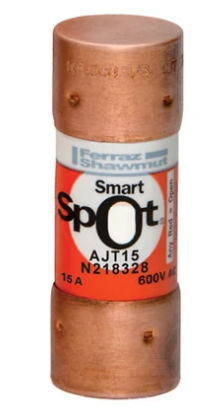

Mersen AJT15N - Class J Fuse 15A 600VAC (Time-Delay)
Mersen AJT15N - Class J Fuse 15A 600VAC (Time-Delay)

Mersen AJT15N - Class J Fuse 15A 600VAC (Time-Delay)

Mersen
Price
Save $1,010.92
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Mersen AJT15N is a 15-amp, 600-volt AC/500-volt DC current-limiting time-delay fuse designed for branch circuit protection of motor circuits, transformers, and other inductive loads. It provides a 200,000-amp interrupting rating to safely clear high-fault currents while its dual-element design allows for temporary inrush currents without nuisance opening. The fuse weighs 0.097 lb and features a compact, rejection-style body for secure mounting in Class J fuse holders. It complies with UL 248-8 and CSA standards for branch circuit protection. Typical applications include motor control centers, panelboards, and disconnect switches in industrial power distribution systems.

Key Features & Specifications
  • Type: Current-limiting, time-delay, dual-element, Class J fuse
  • Voltage Rating: 600 VAC / 500 VDC
  • Current Rating: 15 A
  • Dimensions: Compact Class J rejection-style body
  • Standards: UL 248-8, CSA
  • Applications: Motor circuits, transformers, inductive loads, branch circuit protection
  • AIC rating: 200,000 A
  • Connection: Ferrule end contacts
  • Protection: Overcurrent and short-circuit
  • Family: AJT
  • Weight: 0.097 lb


Product Identification
  • UPC: 782001497699
