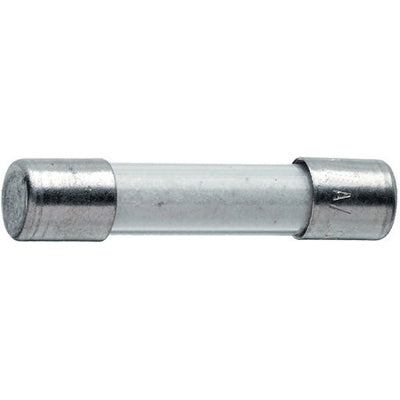

Bussmannn AGX-7 - Low Voltage Fuse 7A@125V (1kA AIC Rating)

Bussmannn AGX-7 is a low-voltage ferrule fuse designed for circuit protection in industrial and commercial applications. It features a 7A current rating and 125V voltage rating, with a compact 0.25" diameter cylindrical design using durable materials for reliable performance. The fuse meets industry standards with a 1kA@125Vac interrupting capacity and single-barrel ferrule connection for secure installation. Typical applications include protection of control circuits, instrumentation, and small appliances where space-efficient protection is required.

Key Features & Specifications

• Type: AGX series ferrule fuse, single-element design
• Voltage Rating: 125V AC
• Current Rating: 7A
• Dimensions: 0.25" diameter
• Standards: UL/CSA recognized
• Applications: Control circuits, instrumentation, small appliances
• Connection: Ferrule
• Barrels: 1
• AIC rating: 1kA@125Vac
• Family: AGX Series

Product Identification

• UPC: 05171270489
• GTIN: 00051712704892
