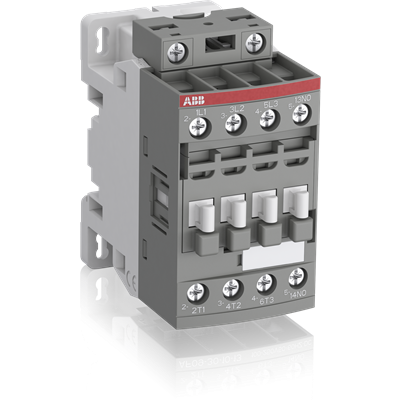

ABB AF09-30-01-11 - Contactor 600V 25A 3-Pole
ABB AF09-30-01-11 - Contactor 600V 25A 3-Pole

ABB AF09-30-01-11 - Contactor 600V 25A 3-Pole

ABB
Price
Save $10.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
ABB AF09-30-01-11 is a 3-pole contactor designed for motor control and switching applications. This unit is rated for 600V AC and 25A, with a coil voltage range of 24-60V AC, and includes 1 normally closed auxiliary contact. The contactor measures 77 mm in depth, 86 mm in height, and 45 mm in width, weighing 0.6 lb, and is manufactured in France. It is built for industrial environments requiring reliable switching of three-phase loads. Typical applications include motor starting, lighting control, and power distribution in commercial and industrial settings.

Key Features & Specifications
  • Type: Contactor
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: Depth 77 mm X Height 86 mm X Width 45 mm
  • Standards: Industry standard for motor control
  • Applications: Motor control, lighting, power distribution
  • Switch Type: Contactor
  • Configuration: 3-pole
  • Coil Voltage Maximum: 60V AC
  • Coil Voltage Minimum: 24V AC
  • Temp Rating: Not specified
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 600V AC
  • Amperage: 25A
  • AIC rating: Not specified
  • Connection: Not specified
  • Poles: 3
  • Protection: Not specified
  • Functions: Motor control
  • Frame Size: Not specified
  • Trip Type: Not specified
  • Panel Type: Not specified
  • Breaker Type: Not specified
  • Control Voltage Minimum: 24V AC
  • Control Voltage Maximum: 60V AC
  • MCM Size: Not specified
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not specified
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Not specified
  • Hz: Not specified
  • Coil Material: Not specified
  • Horse Power: Not specified
  • Aux Contacts: 1 NC
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: 24V AC
  • Wire: Not specified
  • Amperage Maximum: 25A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: Not specified
  • Certification: Not specified
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Not specified
  • Frequency Rating: Not specified
  • Phase Connection: Not specified
  • Standards: Not specified
  • Compatible Frames: Not specified
  • Installation Type: Not specified
  • Item QTY: Not specified
  • Nema Starter Size: Not specified
  • Breaker Frame: Not specified
  • Current Rating: 25A
  • Reverse Standoff Voltage: Not specified
  • Watts: Not specified
  • Peak Pulse Current: Not specified
  • Breakdown Voltage (MIN VBR@IT ) (V): Not specified
  • Breakdown Voltage (VBR@IT) (V): Not specified
  • Polarity: Not specified
  • Operating Temperature Maximum Celsius: Not specified
  • Max Clamp Voltage: Not specified
  • On-State Current: Not specified


Product Identification
  • UPC: 047152311011
